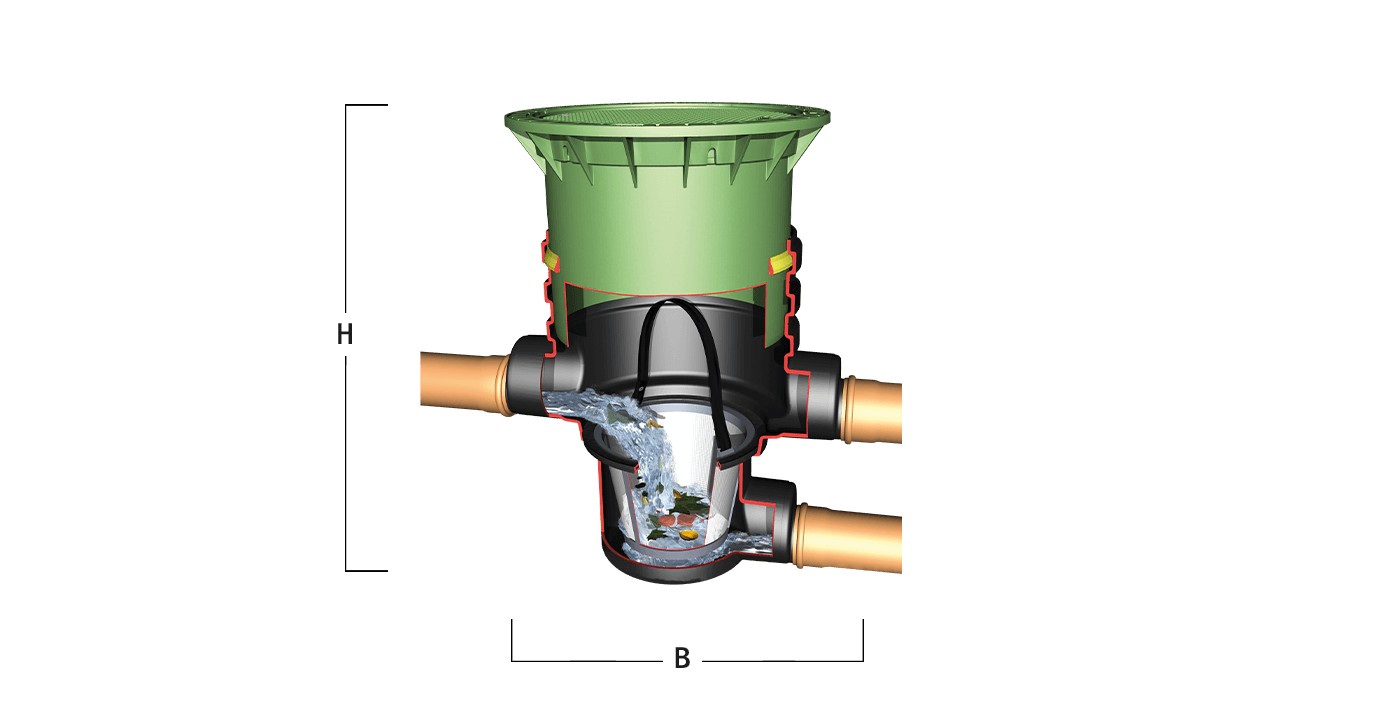

Universal-Filter 3 External Suitable for Vehicle Loading | 340021

Click on Part # to view technical drawing

Vehicle Loading

Designed to maintain a 100% water yield, the Universal 3 external filter is perfect for maximum collection on smaller roof areas. It was designed for use in the Home and Garden or if the overflow is connected to an infiltration plant instead of sewer. With a variable height, its installation depth can be anywhere from 22" - 41" making it a flexible solution for all. Can handle up to 3700 sqft with 4" connections and up to 5400 sqft by utilizing 6" connections. This product also features a lockable, child-proof cover that stays flush with the ground level.

• External filter to clean the rainwater before the tank
• Available for pedestrian loading and for vehicle loading
• 100 % water yield: therefore, ideal for smaller roof areas
• Filter insert mesh width 0.35 mm (0.01")
• Continuously variable installation depth of 600 - 1,050 mm (22.4 - 41.3") using the telescopic dome shaft
• Lockable, childproof cover
• Flush with ground level
• Minimal height offset (270 mm / 10.6") between the inlet and outlet
• Also suitable for infiltration and pond systems
• Maximum roof surface area of 350 m² with connections DN 110 and 500 m² with DN 160

Img	Part #	Description	Max Flow Rate	Diameter (mm)	Height (mm)	Connection(s)	Weight (kg)
	340524	Replacement Filter Basket for Universal Filter 3 External	N/A	N/A	N/A	N/A	N/A
