Universal-Filter 3 External Suitable for Pedestrian Laoding | 340020

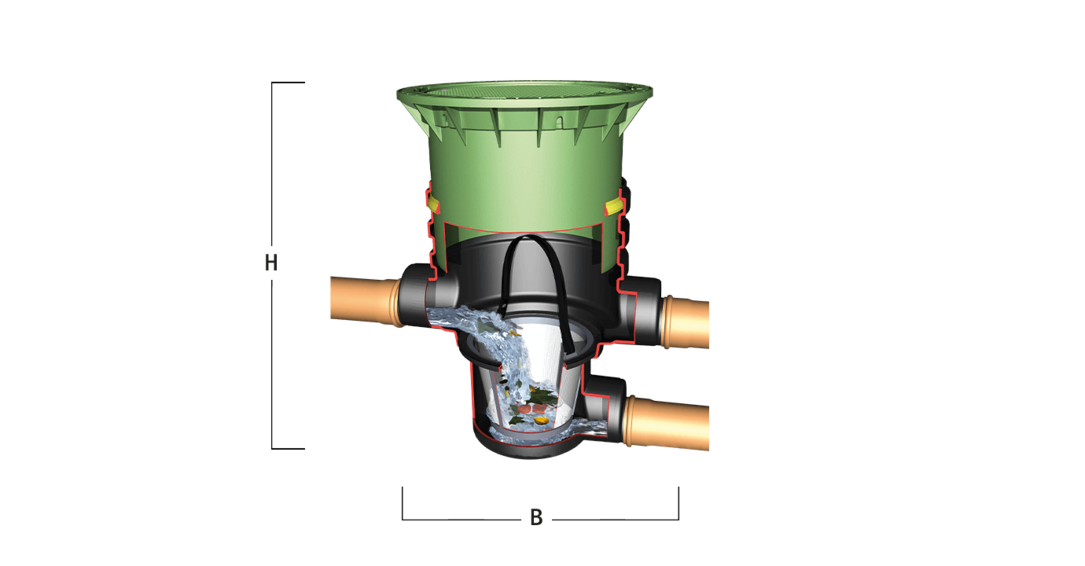

Click on Part # to view technical drawing

Pedestrian Loading

Part #	Description	Max Flow Rate	Diameter (mm)	Height (mm)	Connection(s)	Weight (kg)
340020	Universal Filter 3 External	16 l/s	550 (21.7")	760 (29.9")	DN 100 (4") DN150 (6")	11 (24 lbs)



Designed to maintain a 100% water yield, the Universal 3 external filter is perfect for maximum collection on smaller roof areas. It was designed for use in the Home and Garden or if the overflow is connected to an infiltration plant instead of sewer. With a variable height, its installation depth can be anywhere from 22" - 41" making it a flexible solution for all. Can handle up to 3700 sqft with 4" connections and up to 5400 sqft by utilizing 6" connections. This product also features a lockable, child-proof cover that stays flush with the ground level.

• Filter insert mesh width 0.35 mm (0.01")
• Minimal height offset (270 mm / 10.6") between the inlet and outlet
• Also suitable for infiltration and pond systems

• External filter to clean the rainwater before the tank
• Available for pedestrian loading and for vehicle loading
• 100 % water yield: therefore, ideal for smaller roof areas
• Filter insert mesh width 0.35 mm (0.01")
• Continuously variable installation depth of 600 - 1,050 mm (22.4 - 41.3") using the telescopic dome shaft
• Lockable, childproof cover
• Flush with ground level
• Minimal height offset (270 mm / 10.6") between the inlet and outlet
• Also suitable for infiltration and pond systems
• Maximum roof surface area of 350 m² with connections DN 110 and 500 m² with DN 160



Img	Part #	Description	Max Flow Rate	Diameter (mm)	Height (mm)	Connection(s)	Weight (kg)
	340524	Replacement Filter Basket for Universal Filter 3 External	N/A	N/A	N/A	N/A	N/A



Universal-Filter 3 External (Model 340020)

Introducing the Universal-Filter 3 External, model number 340020, designed specifically for areas with pedestrian loading. This filter is ideal for effective water management, perfect for rainwater harvesting systems, drainage systems, and landscaping features. Constructed by BARR Plastics, this filter combines durability with efficiency to ensure optimal performance in diverse outdoor environments.

Specifications

• Model Number: 340020
• Load Capacity: Designed for pedestrian load support
• Material: High-quality, weather-resistant materials
• Filter Type: Passive filtration system

Features

• Durable Design: Withstands pedestrian traffic and environmental conditions.
• Robust Construction: Made from materials resistant to water and UV light for a long lifespan.
• Efficient Functionality: Filters debris and sediment to prevent clogs in drainage systems.
• Easy Installation: Compatible with various systems, comes with clear setup instructions.
• Low Maintenance: Designed for minimal upkeep with regular checks recommended.
• Versatile Applications: Suitable for residential, municipal, and commercial landscaping projects.

Benefits & Applications

The Universal-Filter 3 External is an essential component for effective water management in both residential and commercial settings. It solves common drainage problems by filtering out debris and sediment, maintaining the clarity of water and preventing possible clogging in pipes. This filter is particularly beneficial for parks, public walkways, and gardens, where pedestrian traffic is prominent. By implementing this filter, you can ensure long-lasting performance and efficiency in managing water flow, making it perfect for landscaping projects and municipal applications.
