GRAF
Optimax-Industrial Filter External Suitable for Pedestrian Loading | 340035
Availability:
4 in stock
SKU: 340035
Couldn't load pickup availability
Click on Part # to view technical drawing
Pedestrian Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340035 | Universal-Industrial Filter 3 external | 29.5 l/s | 850 (33.5") | 920 (36.2") | DN 150 (6")
|
37 (82 lbs) |
Â
This industrial version of the popular Optimax filter comes with many improvements, including a maximum roof area of 16,000 sqft (using 6" connections) or 8000 sqft (using 4" connections) and an extended variable installation depth from 31" - 48". The chamber connections are compatible with bell ends of standard SDR35 piping, available with either a durable green lid capable of person loading, or a cast iron lid capable of vehicle loading. This filter is commonly paired with our Fibreglass Rainwater Collection Tanks in commercial applications. This filter combines convenient low-maintenance technologies with the industries best material and build quality to provide the best external rainwater filter for your next project.
- For roof surfaces up to 1,500 m²
- Patented filter technology
- Smooth installation depths from 733 - 1,320 mm (28.9-51.9") using the telescopic dome shaft
- Maximum roof surface of 750 m² with connections DN 150 and 1,500 m² with DN 200
- Only 224 mm height offset between the inlet and outlet
- Accessories: Cleaning unit external
Â
Â

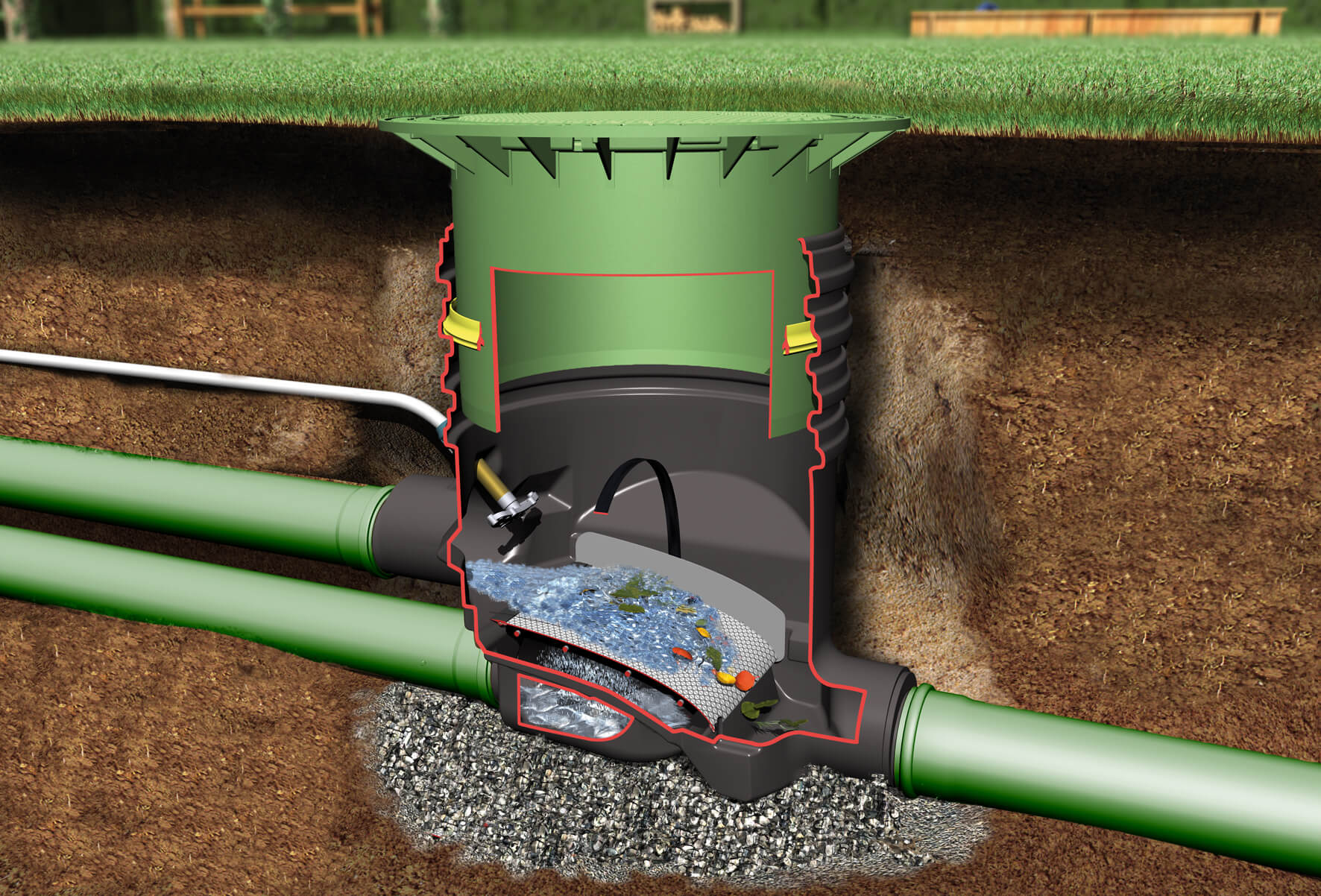

Optimax Industrial Filter External for Pedestrian Loading - Model 340035
The Optimax Industrial Filter (Model 340035) is a specialized filtration system designed for robust and efficient use in industrial settings, particularly where pedestrian traffic may occur. With its advanced filtration capabilities, this external filter ensures high performance and safety, making it a vital component in your operational infrastructure.
Specifications
- Brand: Optimax
- Model: 340035
- Type: External Filter
- Usage: Suitable for areas with pedestrian loading
Features
- External Design: Integrates easily into existing infrastructure without major modifications.
- Pedestrian Loading Capacity: Designed for safety and reliability under regular foot traffic.
- High Filtration Efficiency: Effectively removes particulates, contaminants, and pollutants.
- Durable Construction: Built to withstand harsh industrial environments for longevity.
- Easy Maintenance: User-friendly design allows for straightforward maintenance and filter replacement.
- Flow Capacity: Handles varying flow rates for different industrial needs.
- Compliance: Meets industry standards and regulations for safe and effective use.
Benefits & Applications
The Optimax Industrial Filter (Model 340035) is designed to solve challenges associated with filtration in environments with pedestrian traffic. By effectively removing contaminants, it enhances the safety and air/fluid quality in spaces where people frequently walk. Ideal for various sectors, it finds applications in:
- Industrial Facilities: Factories, warehouses, and workshops requiring reliable filtration.
- Public Spaces: Walkways, lobbies, and outdoor areas with foot traffic.
- Food and Beverage Industries: Environments demanding high hygiene and purity standards.
Â
Dimensions
Height: 47"
Length: 23"
Width: 23"
Weight: 37.0 kg
