Optimax-Filter® External Suitable for Pedestrian Loading | 340030
Availability: 4 in stock |
SKU: 340030
Providing a respectable 95% water yield, this self cleaning external filter system paired with an optional Opticlean cleaning unit will require almost no maintenance. With a variable installation depth from 22" - 41" you have the option to choose what best suits you; a pedestrian loading system comes standard which can be swapped out for one capable of vehicle loading (both can be locked). The 4" connections will cover a roof area of up to 3700 sq. ft., and the 6" connections will cover up to 8000 sq. ft.
- Minimal height offset (200 mm) between the inlet and outlet
- Very smooth surface and therefore max. self-cleaning, mesh wide 0.35 mm (0.01")
Providing a respectable 95% water yield, this self cleaning external filter system paired with an optional Opticlean cleaning unit will require almost no maintenance. With a variable installation depth from...
Providing a respectable 95% water yield, this self cleaning external filter system paired with an optional Opticlean cleaning unit will require almost no maintenance. With a variable installation depth from 22" - 41" you have the option to choose what best suits you; a pedestrian loading system comes standard which can be swapped out for one capable of vehicle loading (both can be locked). The 4" connections will cover a roof area of up to 3700 sq. ft., and the 6" connections will cover up to 8000 sq. ft.
- Minimal height offset (200 mm) between the inlet and outlet
- Very smooth surface and therefore max. self-cleaning, mesh wide 0.35 mm (0.01")
Couldn't load pickup availability
Click on Part # to view technical drawing
Pedestrian Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340030 | Optimax Filter External | 16 l/s | 550 (21.7") | 860 (33.9") | DN 100 (4")
|
14 (31 lbs) |

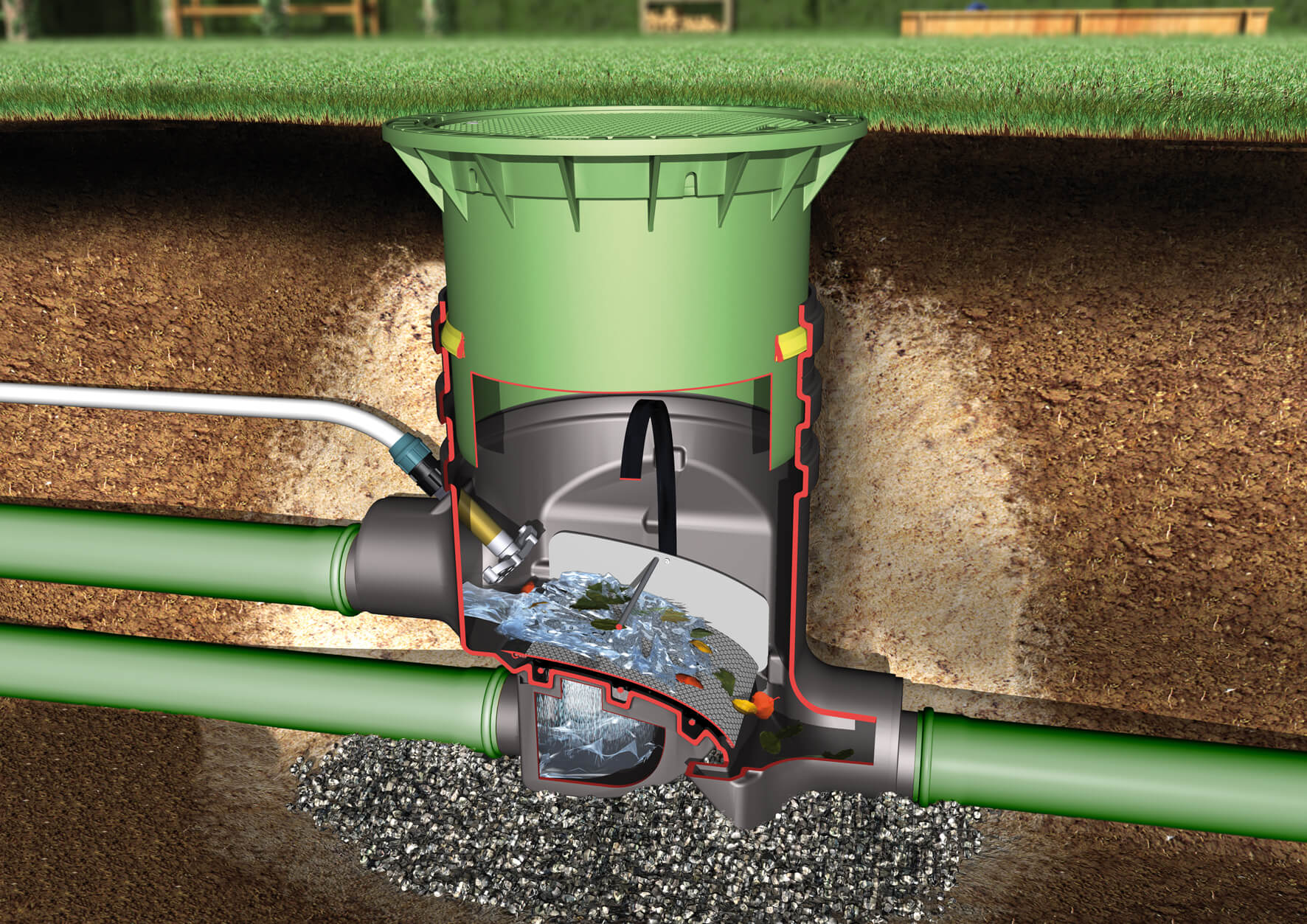

- External filter to clean the rainwater before the tank
- Available for pedestrian loading and for vehicle loading
- Provides over 95 % water yield
- Low maintenance as it is self cleaning
- Continuously variable installation depth of 580 - 1,050 mm (22.8 - 41.3") using the telescopic dome shaft
- Minimal height offset (200 mm) between the inlet and outlet
- Maximum roof surface area of 350 m² with connections DN 100 and 750 m² with DN 150.
- Very smooth surface and therefore max. self-cleaning, mesh wide 0.35 mm (0.01")
- Optional with cleaning unit external
Optimax-Filter® External for Pedestrian Loading (Model 340030)
The Optimax-Filter® External, model number 340030 from Barr Plastics, is a specialized filtration solution designed specifically for environments with pedestrian traffic. This filter offers the dual benefit of effective debris and contaminant trapping, while withstanding the pressure of foot traffic. It's perfect for outdoor areas such as parks and walkways, ensuring cleanliness and safety in high-traffic areas.
Specifications
- Model: 340030
- Manufacturer: Barr Plastics
- Durability: Designed for pedestrian loading
- Material: High-quality plastics resistant to UV and corrosion
- Installation: Easy to fit into existing infrastructures
- Applications: Suitable for parks, walkways, and drainage systems
Key Features
- Durability: Withstands regular foot traffic without compromising structural integrity.
- Filtration Efficiency: Effectively traps debris and contaminants, enhancing environmental safety.
- Easy Installation: Designed for quick installation with minimal adjustments required.
- Load Capacity: Specifically engineered for pedestrian traffic support.
- Aesthetics: Blends seamlessly into urban and natural settings.
Benefits & Applications
The Optimax-Filter® External is your solution to maintaining a clean and safe environment. By effectively reducing pollution and preventing clogging in drainage systems, this filter helps protect local water bodies and landscapes. Its design minimizes maintenance costs by reducing the need for frequent cleanups, enabling a more efficient operational flow. Ideal for use in urban parks, walkways, and plazas, this product enhances user safety and contributes to the aesthetic value of any outdoor space.
Why Buy from Barr Plastics
At Barr Plastics, we offer durable and reliable filtration solutions backed by expert support and fast shipping options across Canada and the US through our distributor channels. Choose the Optimax-Filter® External to ensure safety and efficiency for your pedestrian areas. Order now!
Dimensions
Height: 34"
Length: 22"
Width: 22"
Weight: 14.0 kg
