GRAF Minimax-Filter® External Suitable for Vehicle Loading | 340062
Current price available upon request
This item is not currently in stock but can be ordered for you. Pricing and lead times may change. Request a quote to confirm current pricing, availability, and estimated delivery.
Out of stock |
SKU: 340062

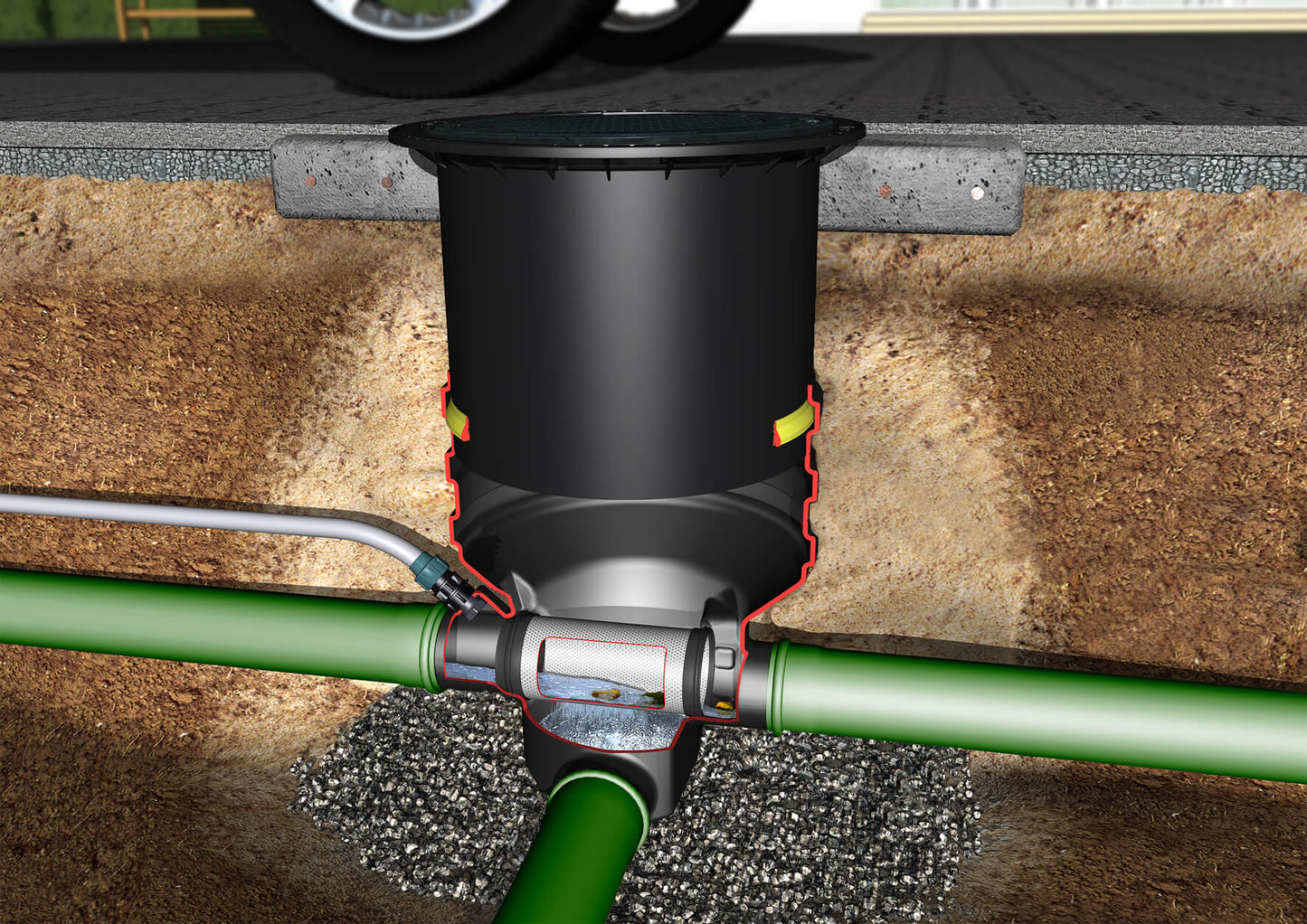

The Minimax external filter cleans rainwater before it enters the tank and is available for both pedestrian and vehicle loading. A variable installation depth of 19.1" - 38.2" is possible using the telescopic dome shaft and covers a maximum roof surface of 350 m with the 4" connection.
- Only 100 mm height offset between the inlet and outlet
- Sieve insert mesh width 0.35 mm (0.01")
- Standard 100 mm connections
- Optional with cleaning unit external
The Minimax external filter cleans rainwater before it enters the tank and is available for both pedestrian and vehicle loading. A variable installation depth of 19.1" - 38.2" is possible...
The Minimax external filter cleans rainwater before it enters the tank and is available for both pedestrian and vehicle loading. A variable installation depth of 19.1" - 38.2" is possible using the telescopic dome shaft and covers a maximum roof surface of 350 m with the 4" connection.
- Only 100 mm height offset between the inlet and outlet
- Sieve insert mesh width 0.35 mm (0.01")
- Standard 100 mm connections
- Optional with cleaning unit external
Couldn't load pickup availability
This product is a Special order item. Please contact Sales Representative through the "Request a Quote" below.
Vehicle Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340062 | Optimax Filter External | 5.5 l/s | 550 (21.7") | 510 (20") | DN 100 (4") | 37 (82 lbs) |
- External filter to clean the rainwater before the tank
- Available for pedestrian loading and for vehicle loading
- Only 100 mm height offset between the inlet and outlet
- Sieve insert mesh width 0.35 mm (0.01")
- Continuously variable installation depth of 485 - 955 mm (19.1 - 38.2") using the telescopic dome shaft
- Maximum roof surface of 350 m²
- Standard 100 mm connections
- Optional with cleaning unit external
GRAF Minimax-Filter® External for Vehicle Loading (Model: 340062)
The GRAF Minimax-Filter® External (Model: 340062) is a specialized filtration system designed for loading and unloading vehicles. This essential product ensures that liquids are free from impurities, providing a crucial benefit for efficient and safe fluid transfer operations. Crafted by GRAF, this external filtration system is perfect for a variety of applications, particularly where liquid storage is involved.
Specifications
- Brand: GRAF
- Model Number: 340062
- Type: External filtration system
- Flow Rate: Designed for high throughput
- Connection Types: Standardized connections for various hoses
- Filtration Capability: Filters solids from liquid
Features
- External Filtration: Easy integration into existing systems.
- Efficient Filtration: Ensures clean loading of liquids.
- Durability: Built to endure tough environmental conditions.
- Ease of Maintenance: Accessible for quick filter cleaning or replacement.
- Compact Design: Ideal for tight loading areas.
Benefits & Applications
The GRAF Minimax-Filter® External is engineered to enhance operational efficiency by filtering out contaminants during the loading of liquids. This feature is critical for industries such as oil and gas, agriculture (fertilizers and pesticides), chemicals, and food processing. By preventing contamination, this filtration system contributes to environmental protection and compliance with eco-friendly regulations. Its reliable performance in fluid transfer operations helps maintain the quality of liquids transported, ensuring safety and efficiency in your processes.
Why Buy from BARR Plastics
At BARR Plastics, we provide durable, reliable components backed by expert support and quick shipping across Canada. Trust us for your filtration needs, as we ensure high-quality products that meet rigorous industry standards. With our extensive distribution channels, Barr Plastics can ship across Canada and the US through our partnered facilities.
Order now or contact us to learn more about how the GRAF Minimax-Filter® External can enhance your fluid loading operations.
Dimensions
Height: 21"
Length: 21"
Width: 21"
Weight: 37.0 kg
