GRAF Minimax Filter External for Pedestrian Loading | 340061
Out of stock |
SKU: 340061

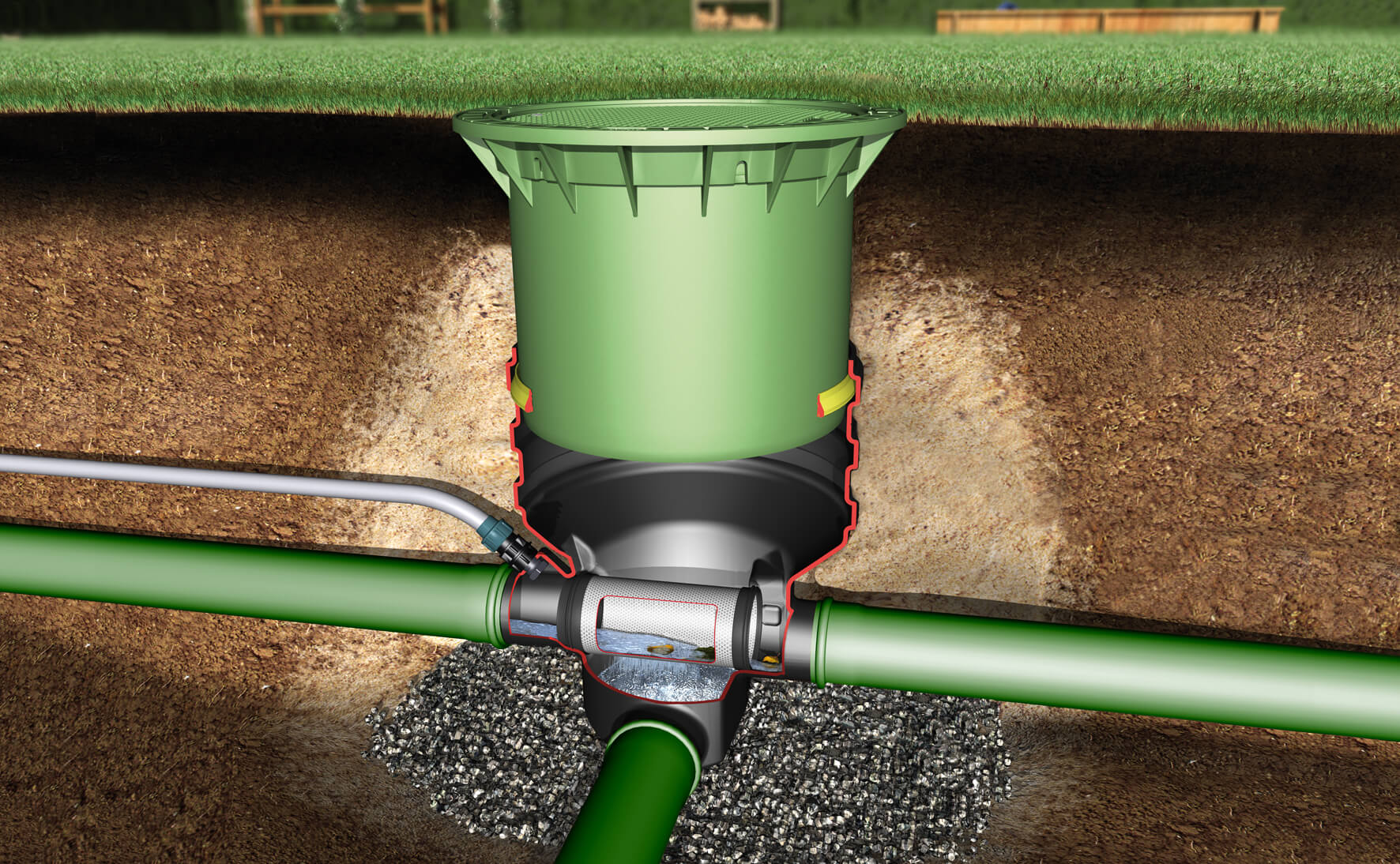

The Minimax external filter cleans rainwater before it enters the tank and is available for both pedestrian and vehicle loading. A variable installation depth of 19.1" - 38.2" is possible using the telescopic dome shaft and covers a maximum roof surface of 350 m with the 4" connection.
- Only 100 mm height offset between the inlet and outlet
- Sieve insert mesh width 0.35 mm (0.01")
- Standard 100 mm connections
- Optional with cleaning unit external
The Minimax external filter cleans rainwater before it enters the tank and is available for both pedestrian and vehicle loading. A variable installation depth of 19.1" - 38.2" is possible...
The Minimax external filter cleans rainwater before it enters the tank and is available for both pedestrian and vehicle loading. A variable installation depth of 19.1" - 38.2" is possible using the telescopic dome shaft and covers a maximum roof surface of 350 m with the 4" connection.
- Only 100 mm height offset between the inlet and outlet
- Sieve insert mesh width 0.35 mm (0.01")
- Standard 100 mm connections
- Optional with cleaning unit external
Couldn't load pickup availability
Pedestrian Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340061 | Optimax Filter External | 5.5 l/s | 550 (21.7") | 510 (20") | DN 100 (4") | 11 (24 lbs) |
- External filter to clean the rainwater before the tank
- Available for pedestrian loading and for vehicle loading
- Only 100 mm height offset between the inlet and outlet
- Sieve insert mesh width 0.35 mm (0.01")
- Continuously variable installation depth of 485 - 955 mm (19.1 - 38.2") using the telescopic dome shaft
- Maximum roof surface of 350 m²
- Standard 100 mm connections
- Optional with cleaning unit external
Product Overview
The GRAF Minimax Filter External for Pedestrian Loading (Product Code: 340061) is an innovative filtration solution designed for outdoor spaces such as pedestrian areas, parks, and gardens. With its robust construction, this filter effectively manages stormwater runoff, ensuring clean water is channeled into underground storage systems or drainage.
Specifications
- Model: Minimax Filter External
- Type: External Filter
- Load Capacity: Designed for pedestrian loading
- Material: High-quality polymers for durability
- Installation Requirements: Follow manufacturer guidelines and local regulations
Key Features
- Efficient Filtration: Removes debris and pollutants from rainwater.
- Robust Design: Endures pedestrian loading, suitable for high-traffic areas.
- Compact Size: Facilitates easy installation in limited spaces.
- Effective Water Management: Reduces stormwater runoff and flooding risks.
- Ease of Maintenance: Simple cleaning and filter media replacement.
- Eco-Friendly Solution: Contributes to environmental sustainability.
Benefits & Applications
The GRAF Minimax Filter External not only provides effective water management, but it also enhances the aesthetic appeal of urban and residential landscapes. It is especially beneficial for:
- Urban Settings: Installation in city parks, plazas, and streets.
- Residential Areas: Use in private gardens or home landscaping.
- Commercial Spaces: Properties with pedestrian walkways.
By filtering rainwater, this product reduces maintenance costs associated with drainage systems, helping municipalities and developers comply with local stormwater management regulations, ultimately promoting sustainable urban designs.
Why Buy from GRAF?
At BARR Plastics, we provide durable, reliable components backed by expert support and quick shipping across Canada. Trust in our commitment to quality and sustainability when managing water resources in your projects. BARR Plastics can ship across Canada and the US through our distributor channels or partnered facilities.
Call to Action
Order now and enhance your outdoor spaces with the GRAF Minimax Filter External!
Dimensions
Height: 15"
Length: 21"
Width: 21"
Weight: 11.0 kg
