GRAF Infiltration Filter Shaft | 340025

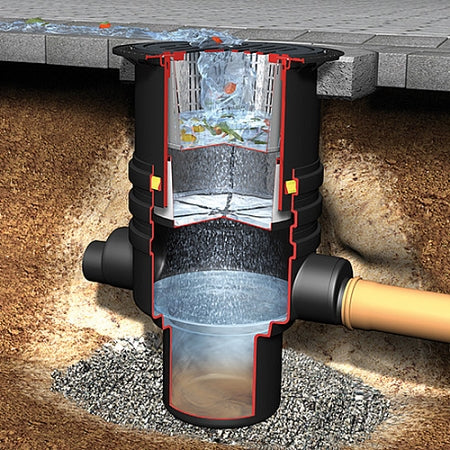

This vehicle loading-capable infiltration filter shaft has a 3 stage cleaning process to ensure high quality water (Coarse Filter, Fine Filter and Sedimentation Zone) to ensure optimum infiltration performance. Filter shaft retains impurities that could have a negative effect on infiltration performance.
Variable installation depth from 22" - 41" when using a telescopic dome shaft. A maximum flow rate of 88 gallons per minute (GPM) can be achieved with a 4" input and output or 250 gallons per minute (GPM) with 6" connections.
This vehicle loading-capable infiltration filter shaft has a 3 stage cleaning process to ensure high quality water (Coarse Filter, Fine Filter and Sedimentation Zone) to ensure optimum infiltration performance. Filter...
This vehicle loading-capable infiltration filter shaft has a 3 stage cleaning process to ensure high quality water (Coarse Filter, Fine Filter and Sedimentation Zone) to ensure optimum infiltration performance. Filter shaft retains impurities that could have a negative effect on infiltration performance.
Variable installation depth from 22" - 41" when using a telescopic dome shaft. A maximum flow rate of 88 gallons per minute (GPM) can be achieved with a 4" input and output or 250 gallons per minute (GPM) with 6" connections.
Couldn't load pickup availability
Click on Part # to view technical drawing
Vehicle Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340025 | Infiltration Filter Shaft | 16 l/s | 550 (21.7") | 920 (36.2") | DN 100 (4")
|
46 (101 lbs) |
GRAF Infiltration Filter Shaft (Model 340025)
The GRAF Infiltration Filter Shaft (model 340025) is a state-of-the-art solution designed for stormwater management systems. This specialized shaft separates solids and filters stormwater to enhance water quality before it is infiltrated into groundwater or reused for irrigation. Built by GRAF, a trusted name in water management, this filter shaft is essential for ensuring clean water discharge.
Specifications
- Model: 340025
- Material: Durable plastic/composite
- Design: Cylindrical/shaft-like
- Compatibility: Versatile with other GRAF products
- Applications: Residential, commercial, industrial
Features
- High-quality, corrosion-resistant materials
- Multiple layers of filtration media for enhanced efficiency
- Simple integration into existing stormwater systems
- Low maintenance requirements with easy inspection
- Flow management features to prevent erosion
- Designed to meet environmental regulations
Benefits & Applications
The GRAF Infiltration Filter Shaft serves as an excellent solution for enhancing water quality in stormwater management systems. It plays a crucial role in capturing suspended solids and pollutants, ensuring that only filtered water seeps into the groundwater. Ideal for applications in residential, commercial, and industrial sectors, this filter shaft promotes sustainability by facilitating rainwater harvesting and groundwater recharge. By adopting this filtration system, you can significantly reduce the costs and complexities associated with downstream water treatment processes, making it a cost-effective solution for effective water management.
Why Buy from BARR Plastics
At BARR Plastics, we offer reliable and durable components backed by expert support and prompt shipping across Canada. Our commitment to customer satisfaction ensures you receive the best products for your stormwater management needs. Plus, we can ship across Canada and the US through our distributor channels or partnered facilities.
Order now to enhance your stormwater management system with the GRAF Infiltration Filter Shaft!
Dimensions
Height: 28"
Length: 21"
Width: 21"
Weight: 46.0 lb
