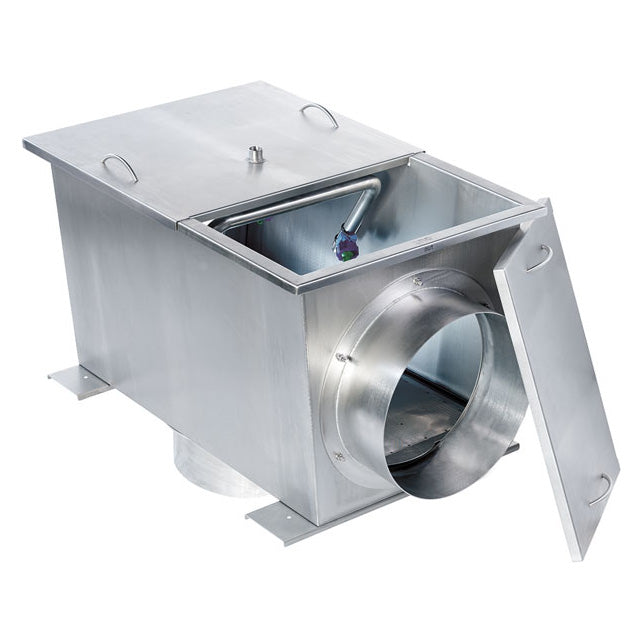

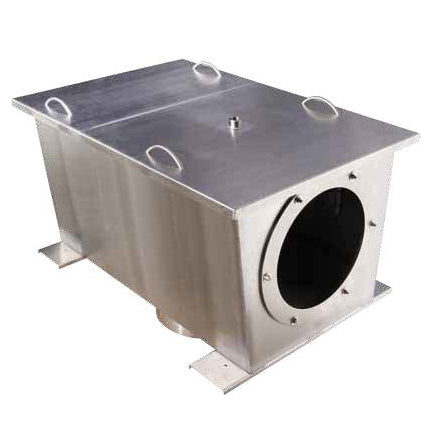

GRAF Optimax XXL Industrial Filter Chamber

High-Performance Industrial Rainwater Filtration for Large-Scale Applications

The Graf Optimax XXL Industrial Filter Chamber is designed for the most demanding rainwater harvesting and stormwater management projects. With its 95% water yield efficiency, robust design, and innovative self-cleaning filter technology, it’s the perfect solution for municipalities, commercial facilities, and industrial sites seeking reliable filtration and water reuse.

Whether you are looking to collect rainwater for irrigation, industrial processes, or infiltration back into the ground, the Optimax XXL offers exceptional durability and performance.

Why Choose the Optimax XXL Filter?

• Maximum Water Yield: Up to 95% filtered water recovery for optimal system efficiency.
• Self-Cleaning System: Integrated spray head with four high-pressure nozzles keeps the filter and chamber clean, reducing maintenance.
• Large Capacity: Designed for industrial and municipal projects with significant water volumes.
• Durable Construction: Manufactured from high-grade materials for long service life even in harsh Canadian climates
• Flexible Installation: Can be installed underground or integrated into above-ground vaults.

Applications

Municipal Rainwater Harvesting

Cities and municipalities can install the Optimax XXL as part of their stormwater management infrastructure. Its large flow capacity and self-cleaning technology make it ideal for public parks, sports fields, and civic facilities.

Commercial and Industrial Sites

Businesses with extensive roof areas or paved surfaces can significantly reduce potable water consumption by reusing filtered rainwater. Industries such as agriculture, manufacturing, and logistics can use harvested water for process needs, irrigation, and vehicle washing.

Environmental Projects

The Optimax XXL supports sustainable urban drainage systems (SUDS) and low-impact development (LID) strategies. By filtering and directing stormwater into infiltration basins or storage tanks, it reduces flooding risks and helps replenish groundwater.

Key Features

1. Advanced Filter Technology

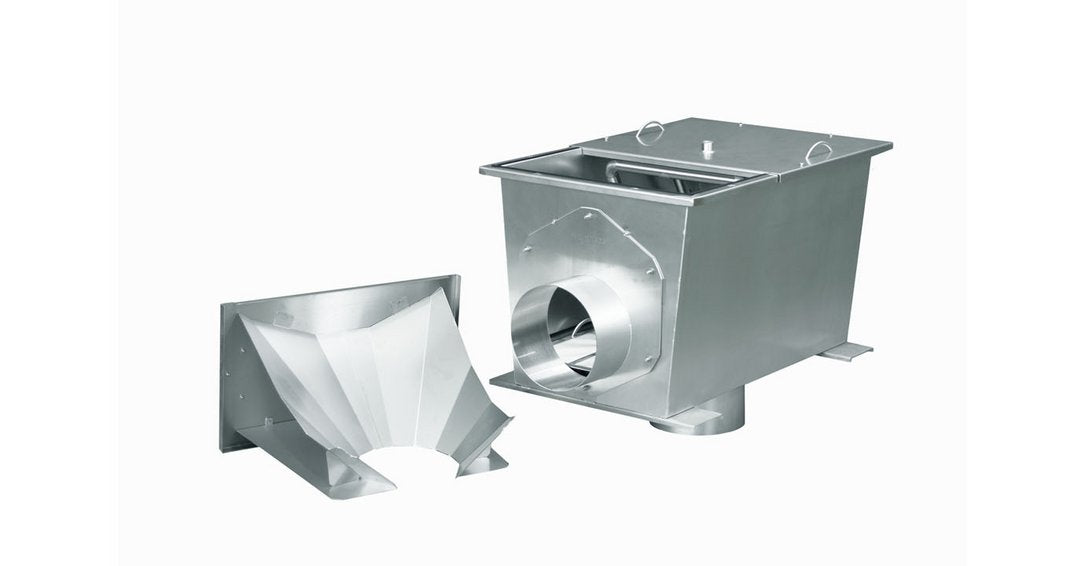

The Optimax XXL uses a patented self-cleaning filter principle that separates debris and ensures the cleanest possible water output. Incoming rainwater is directed across a finely woven stainless-steel filter insert, which captures leaves, dirt, and other solids. The unique spray head system automatically flushes the filter clean during heavy rainfall, ensuring minimal clogging and maintenance.

2. Spray Head Cleaning System

RainHarvest’s product page highlights the chamber’s integrated spray head system. Four powerful nozzles deliver high-pressure jets that sweep the filter insert and chamber squeaky clean, flushing debris toward the dirty-water outlet and away from the system. This means longer service intervals and more consistent water quality.

3. 95% Water Yield

With such a high water yield, the Optimax XXL ensures that almost every drop of rainwater is captured and available for reuse. This level of efficiency sets it apart from standard rainwater filters and makes it an ideal solution for large projects where every litre counts.

4. Built for Canadian Conditions

The Optimax XXL is made from UV-stabilized materials and built to withstand extreme temperature fluctuations common across Canada and North America. Its design protects the filter from freezing in colder months and ensures dependable performance year-round.

5. Large-Scale Flow Capacity

This industrial filter can handle large roof and surface drainage areas, making it suitable for factories, warehouses, sports facilities, municipal buildings, and commercial developments.

Key Features

• Filter insert material: Stainless steel
• Water yield: 95%
• Max flow rate: 150 L/sec (varies by configuration)
• Connections: DN 200 – DN 400 (custom sizes available)
• Applications: Rainwater harvesting, stormwater infiltration, water reuse, pre-filtration for storage tanks
