BARR Plastics

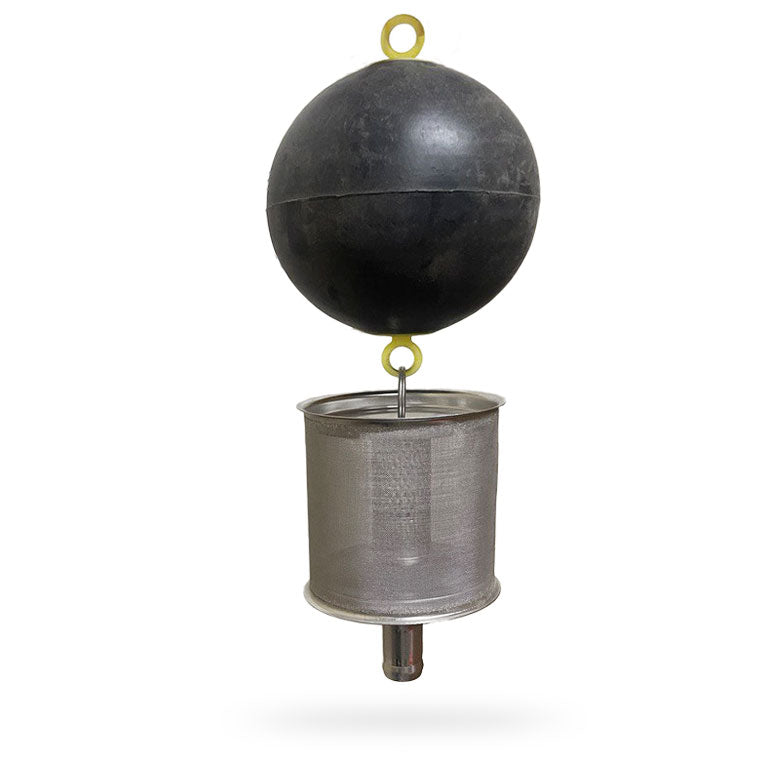

Floating Suction Set 1" with Stainless Steel Micro Filter (0.23mm mesh) | 330055
Availability:
13 in stock
SKU: 330055
Couldn't load pickup availability

| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 330055 | 1" | 1 | Micro Filter (0.009" mesh) |
Floating Suction Set 1″ with Stainless Steel Micro Filter | 330055
The Floating Suction Set 1″ with Stainless Steel Micro Filter (model 330055) from BARR Plastics is engineered to pull clean water from storage tanks while blocking ultra-fine particles. With a 1″ connection and a 0.23 mm (0.009″) mesh stainless steel micro-filter, this suction set helps protect your pump and system components from sediment and debris. Easy to install and built for long-term rainwater harvesting or storage applications—order now.
Specifications
- Model: 330055
- Connection Size: 1″ suction line
- Filter Mesh Size: 0.23 mm (0.009″) stainless steel micro-filter mesh. :contentReference
- Dimensions: Height: 18″, Length: 21″, Width: 18″. :contentReference
- Weight: Approx. 0.9 kg. :contentReference
- Compatible With: Tanks and rainwater harvesting systems requiring ultra-fine suction filtration.
Features
- Floating design draws water from just below the surface where it’s cleanest.
- Stainless steel micro-filter captures very fine sediment and particles.
- 1″ connection suits common pump and hose setups for water transfer.
- Rigid construction and durable materials for long service life.
- Designed for rainwater harvesting, storage tanks, and industrial supply systems.
- Installation ready, minimal adjustments needed—just mount, connect, float, and go.
Benefits & Applications
This suction set solves the issue of pump clogging, sediment intake, and wear from debris. By using a floating intake, it draws from the cleanest layer of water, reducing particle ingestion and extending pump lifespan. With a micro-filter mesh of 0.23 mm, it offers higher precision filtration than coarse alternatives—ideal for applications where water quality matters.
Use it in systems like: household or commercial rainwater harvesting, agricultural irrigation water storage, fire-reserve tanks, and any fluid-handling tank where you want to prevent sediment from reaching your pump or piping. For example, if your previous suction lines experienced frequent clogging from dirt or algae, switching to this set can significantly reduce maintenance downtime and improve reliability.
Why Buy from BARR Plastics
At BARR Plastics, we specialise in providing high-quality liquid handling solutions with real performance in the field. You’ll enjoy expert product support, fast shipping, and access to proven tank accessories. We serve customers throughout North America, with shipments across Canada and the United States through our distributor channels and partner facilities. Request a quote or order now to upgrade your system with the 330055 Floating Suction Set today.
Dimensions
Height: 18"
Length: 21"
Width: 18"
Weight: 0.9 kg
