GRAF
Floating Suction Set 1" with Stainless Steel Coarse Filter (1.2mm mesh) | 330054
Availability:
3 in stock
SKU: 330054
Couldn't load pickup availability

| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 330054 | 1" | 1 | Fine Filter (0.04" mesh) |

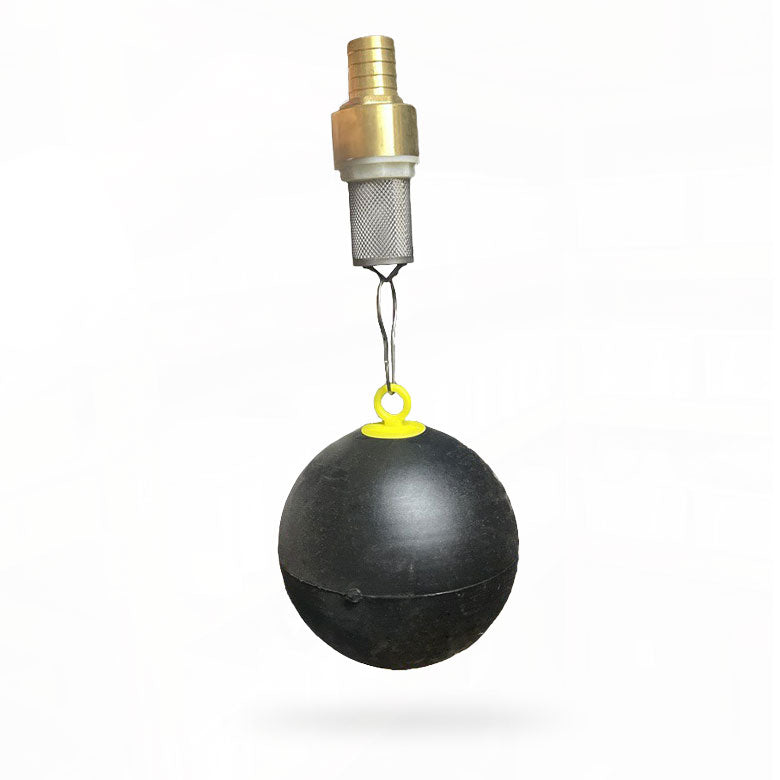

Floating Suction Set 1″ with Stainless Steel Coarse Filter | 330054
The Floating Suction Set 1″ with Stainless Steel Coarse Filter (model 330054) from BARR Plastics is designed to draw clean water from storage tanks while minimizing debris intake. The kit features a 1-inch connection and a durable 1.2 mm mesh stainless steel coarse filter for reliable suction. It installs easily at the water surface level and helps protect your pump system from sediment and floatables. Order now to enhance your tank’s performance.
Specifications
- Model: 330054
- Connection Size: 1″ (1-inch) suction line
-
Filter Mesh Size: 1.2 mm coarse stainless steel mesh
- Dimensions: Height 18″; Length 22″; Width 18″
- Weight: Approx. 0.9 kg :contentReference
- Float Material: UV-stable polyethylene (floating balloon component)
- Filter Basket Material: Stainless steel coarse filter basket
- Application: Suction from above or in-tank systems for water storage, rain harvesting, fire reserve, etc.
Features
- Floating suction design draws from the cleanest layer of water.
- Stainless steel coarse filter prevents large debris from entering the pump.
- 1″ connection supports common pump setups.
- Simple installation – float, suction hose, and filter basket included.
- Will reduce pump wear and clogging by intercepting sediment and solids above a set mesh size.
- Designed for rainwater harvesting, storage tanks, and industrial fluid reservoirs.
Benefits & Applications
This floating suction set solves a common problem: sediment and debris entering the suction line and damaging pumps or reducing system efficiency. By floating just beneath the water’s surface, the set draws from cleaner water and uses the stainless steel 1.2 mm mesh to block larger particles. That means fewer surge issues, less maintenance, and longer pump life. It’s ideal for rainwater harvesting systems, aboveground storage tanks, fire-suppression reserves, and agricultural irrigation setups. For example, a rainwater tank that previously clogged a suction pump could reduce downtime significantly by using this type of filter set.
Why Buy from BARR Plastics
At BARR Plastics, we deliver reliable fluid-handling components backed by technical support and industry experience. We serve North America with fast shipping, and we help you choose the right accessory for your tank and pump systems. We ship across Canada and the U.S. through our distributor channels and partnered facilities. Request a quote or order now to upgrade your system with this effective suction set today.
Floating Suction Set 1" with Stainless Steel Coarse Filter
The Floating Suction Set 1" with Stainless Steel Coarse Filter (Model: 330054) is a specialized water extraction tool that ensures clean and reliable water intake for various applications. Designed primarily for aquaculture, irrigation, and water treatment, its standout feature is the ability to draw water from the surface while effectively filtering out debris and particulates.
Specifications
- Size: 1 inch diameter
- Material: High-quality stainless steel
- Filter Mesh Size: 1.2mm
- Weight: Lightweight for easy handling
- Installation: Straightforward with basic plumbing knowledge
Features
- Floating Design: Maintains optimal position in water for efficient extraction.
- Durable Materials: High-quality construction resists corrosion and prolongs lifespan.
- Coarse Filtration: 1.2mm mesh effectively filters larger particles like leaves and debris.
- Easy Maintenance: Stainless steel filter can be cleaned effortlessly.
- Versatile Compatibility: Designed for various piping systems used in environmental water management.
Benefits & Applications
The Floating Suction Set dramatically improves water extraction efficiency. By targeting surface water, it reduces contamination from sediments typically found at the bottom of ponds, tanks, or reservoirs. Ideal for use in aquaculture, agriculture, and water treatment facilities, this tool ensures high-quality water is consistently available. Its durable stainless steel construction is perfect for harsh aquatic environments, minimizing the risk of corrosion and lowering long-term replacement costs. With a simple installation process, it’s an effective addition to both commercial and residential water management systems.
Why Buy from BARR Plastics
At BARR Plastics, we pride ourselves on providing durable and reliable water management components backed by expert support. Our quick shipping across Canada and the US through our distributor channels ensures you get what you need when you need it. Don't settle for less; choose BARR Plastics for your water management solutions.
Order now to secure your Floating Suction Set 1" with Stainless Steel Coarse Filter and enhance your water extraction efficiency!
Dimensions
Height: 18"
Length: 22"
Width: 18"
Weight: 0.9 kg
