GRAF

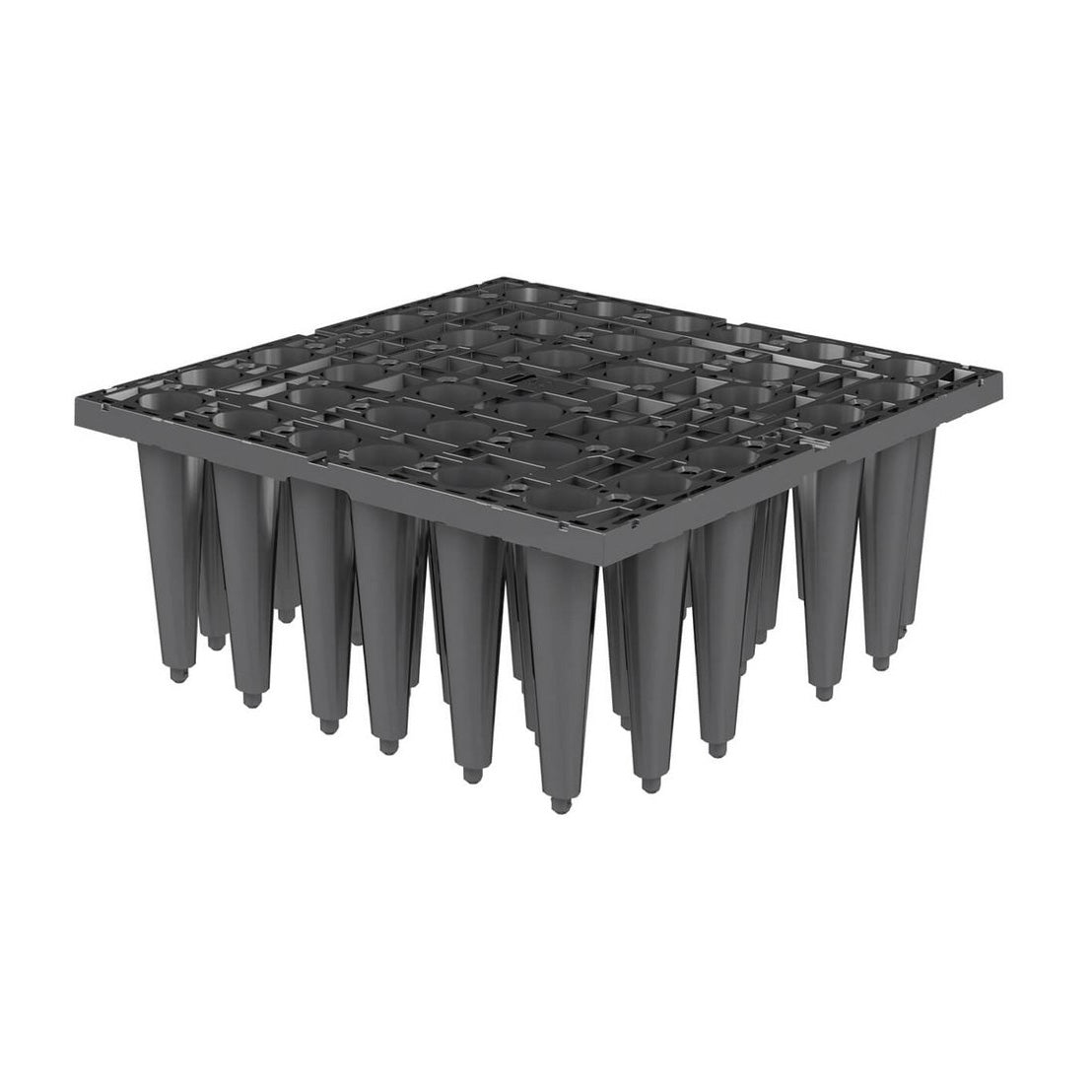

EcoBloc Inspect SMART Ultra | 402560
Availability:
In stock
SKU: 402560
Shop online at BARR Plastics.
Shop online at BARR Plastics. Part # Size (in) Weight (lbs) Description 402560 31" x 31" x 13" 26 GRAF EcoBloc Inspect Smart Ultra (1 Module) (56 USG / 211L) ...
Shop online at BARR Plastics.
Talk to an expert before you order
Let's make sure EcoBloc Inspect SMART Ultra | 402560 fits your project
Every site is different. Share your project details and one of our stormwater engineers will confirm sizing, depth, and load requirements - no obligation.
- Response within a few business days
- No sales pressure
- Canada projects
| Part # | Size (in) | Weight (lbs) | Description |
|---|---|---|---|
| 402560 | 31" x 31" x 13" | 26 | GRAF EcoBloc Inspect Smart Ultra (1 Module) (56 USG / 211L) |
EcoBloc SMART Ultra: Customisable modular stormwater infiltration and detention system for when you need added load capacity.
- Made from 100% GRAF Upcyclen recycled plastic.
- Infiltration modules for infiltration and retention of stormwater.
- Modular system allowing customisation for individual applications.
- A simpler way: Easy to transport and install.
- Inspectable: A built-in inspection channel enables SLW 60 drivability with 800 mm earth cover. (check this in AU)
- High-pressure flushable: EcoBloc SMART Ultra modules can be flushed at high pressure without any problems.
- High infiltration capacity.
- Truck passable: The EcoBloc SMART Ultra enables SLW 60 drivability with 800 mm ground cover.
- One truckload corresponds to a storage volume of 455 m³.
- Up to 7.5 meters installation depth: Even under the highest loads, the EcoBloc
- SMART Ultra module can be installed up to 7.5 meters deep depending on soil type and unique environmental conditions.
- Ideal stability behavior: EcoBloc SMART Ultra modules can withstand high loads over long periods of time. Both horizontal and vertical loads are supported. Thanks to the optimised product design, loads are optimally transferred, allowing for planning freedom of a generous installation window even under high loads.
- The side plates of the EcoBloc SMART Ultra offer connections in cross-sections DN110, 125, 160, 200 and DN250. (check this in AU)
- Larger cross-sections can be connected with the optional EcoBloc adapter plates.
EcoBloc Inspect SMART Ultra 402560 - Advanced Stormwater Management Solution
The EcoBloc Inspect SMART Ultra, designated by product code 402560, is an innovative solution for managing and treating stormwater. Developed by Barr Plastics, this product is part of the EcoBloc range, which emphasizes sustainability, efficiency, and environmental protection in stormwater management systems. With its modular design and robust materials, it ensures easy inspection and reliable performance in various conditions.
Specifications
- Model: EcoBloc Inspect SMART Ultra | 402560
- Material: High-quality recycled materials
- Modular design for customizable arrangements
- Durability for various soil conditions and loading environments
- Advanced hydraulic properties for efficient water infiltration and storage
- Built-in access points for simplified inspection and maintenance
- Meets environmental standards and regulations
Features
- Engineered for easy inspection and flexible arrangement.
- Made from sustainable, recycled materials.
- Designed to withstand harsh environmental conditions.
- Optimizes stormwater management to reduce flooding.
- Modular design allows for straightforward installation.
- Access points minimize downtime and maintenance costs.
- Meets compliance standards for environmental safety.
Benefits & Applications
The EcoBloc Inspect SMART Ultra addresses key challenges in stormwater management by providing a sustainable and efficient solution. Its superior hydraulic performance enables effective water infiltration and controlled release, significantly reducing runoff and promoting groundwater recharge. This system is ideal for various applications including parking lots, roadways, and commercial developments. By integrating this product into your projects, you can achieve your sustainability goals while ensuring that your stormwater management system is cost-effective and easily maintainable.
Why Buy from Barr Plastics
At Barr Plastics, we specialize in durable, reliable components that are backed by our expert support. Our commitment to providing quick shipping across Canada ensures that you receive your products when you need them. Trust Barr Plastics for all your stormwater management needs, and experience the confidence that comes with using high-quality, sustainable solutions. We can ship across Canada and the US through our distributor channels or partnered facilities.
Order now to enhance your stormwater management systems with the EcoBloc Inspect SMART Ultra!
Dimensions
Height: 13"
Length: 31"
Width: 31"
Weight: 26.0 lb
Specifications
Accessibility |
|
| Earth covering with loading capacity [mm] | 450 - 4250 |
| max. vehicle weight [t] | 60 |
Installation |
|
| max. earth covering [mm] (without groundwater, vehicle loading) | 5000 |
