GRAF

EcoBloc Inspect SMART | 402500

Special order item. Request Quote for Pricing

Shipping calculated at checkout.

Availability:

14313 in stock

SKU: 402500
Part # Size Weight (lbs) Description
402500 31" x 31" x 13"
(800 x 800 x 330mm)		 22 GRAF EcoBloc Inspect Smart (1 Module) (56 USG / 211L)



What it is

  • It’s a modular stormwater / infiltration block made by GRAF (distributed via Barr Plastics).

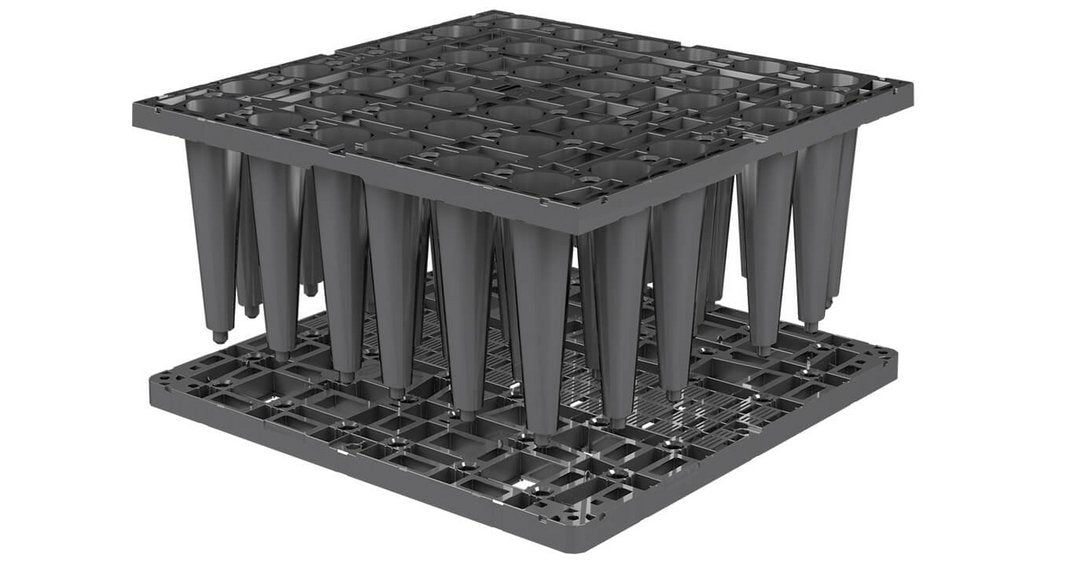

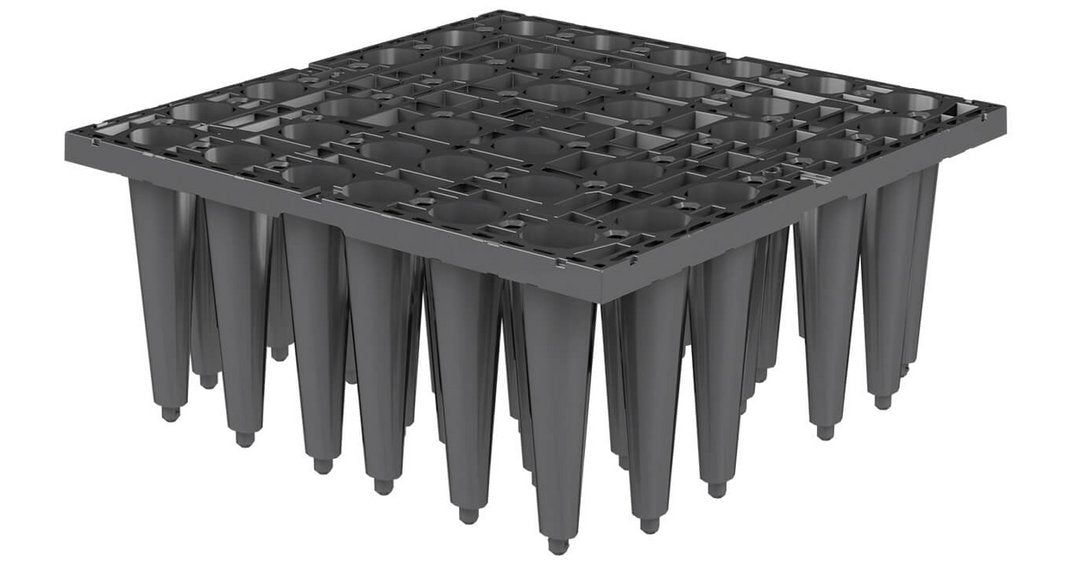

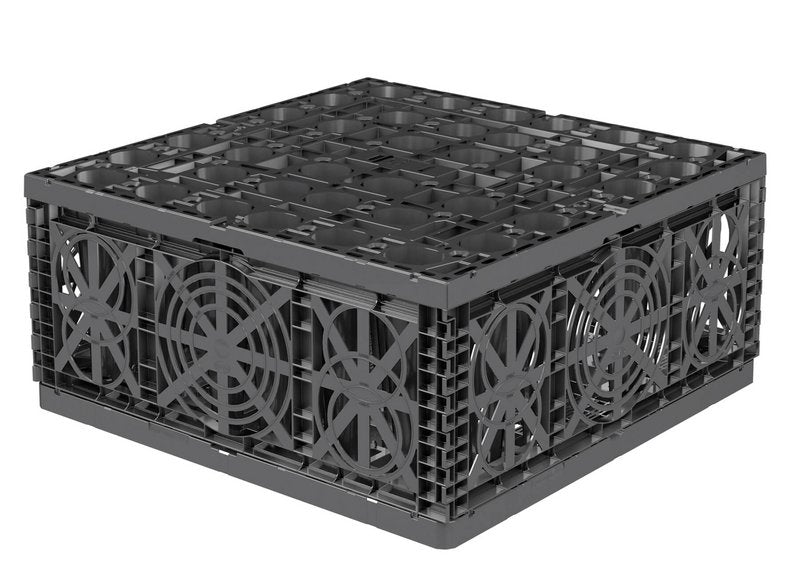

  • The block is called EcoBloc Inspect Smart (402500).

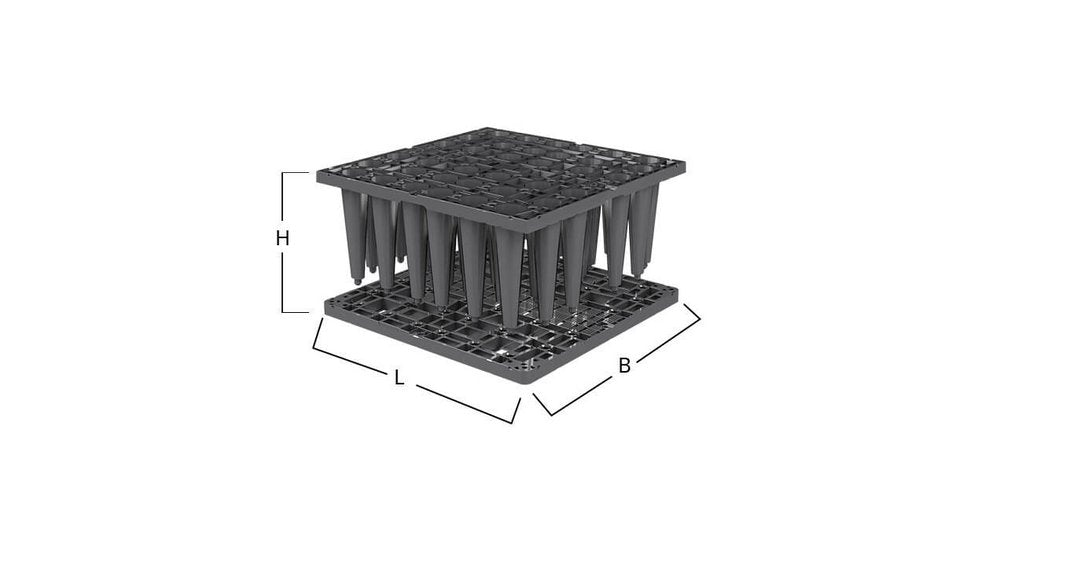

  • Dimensions: 800 × 800 × 330 mm (≈ 31" × 31" × 13")
  • Gross / net volume: about 211 L gross, 203 L net (per module)
  • Weight: About 10 kg per module (≈ 22 lb)
  • Material: 100% polypropylene (recycled)
  • It is part of a modular system that can be stacked / arranged to create retention or infiltration tanks.

Suitability & Use Cases

This product is ideal when you need a stormwater infiltration or retention system where:

  • You want to manage roof/rainwater locally rather than sending it all to sewers.
  • You have limited space and want efficient storage per footprint.
  • The soil and site allow infiltration or controlled discharge.
  • You need access for inspection/maintenance to ensure long-term reliability.

It may not be ideal when:

  • Your groundwater is high or fluctuating a lot.
  • The loads / traffic are extremely heavy beyond what is certified.
  • You can’t maintain or inspect the system.
  • The site has poor soil structure or limited excavation depth.



Key Features & Benefits

  1. High Storage Efficiency
    The block has a high storage coefficient (~96%) meaning most of its internal volume is usable for water.
  2. Inspectable / Cleanable
    It has integrated inspection channels. You can run inspection cameras, and the system supports high-pressure jetting for cleaning.
  3. Load Capacity

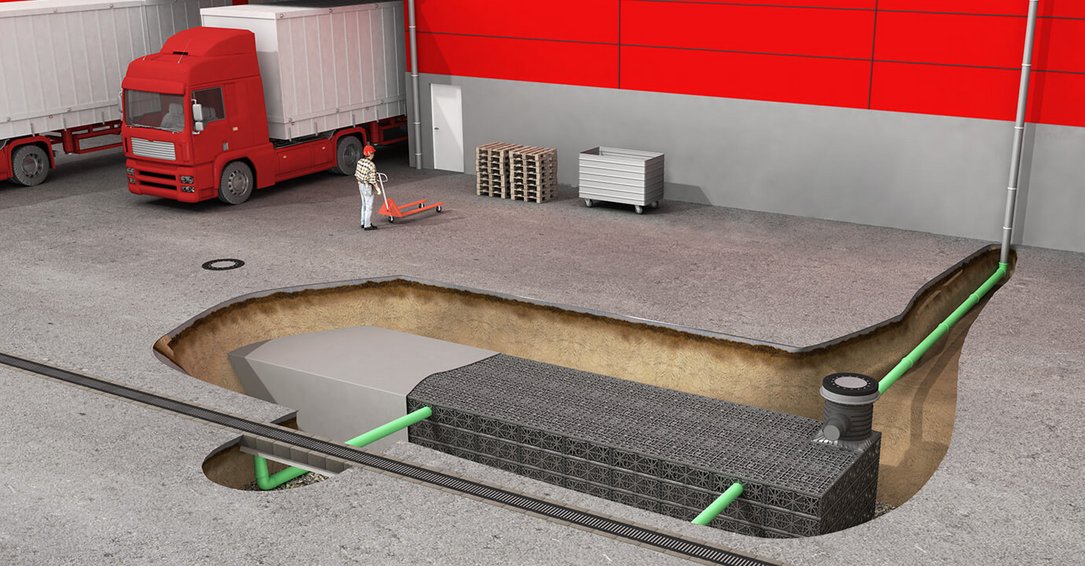

    The system supports heavy loads, e.g. HS-25 / up to ~60 tons, when buried with sufficient cover.
  4. Modular & Flexible

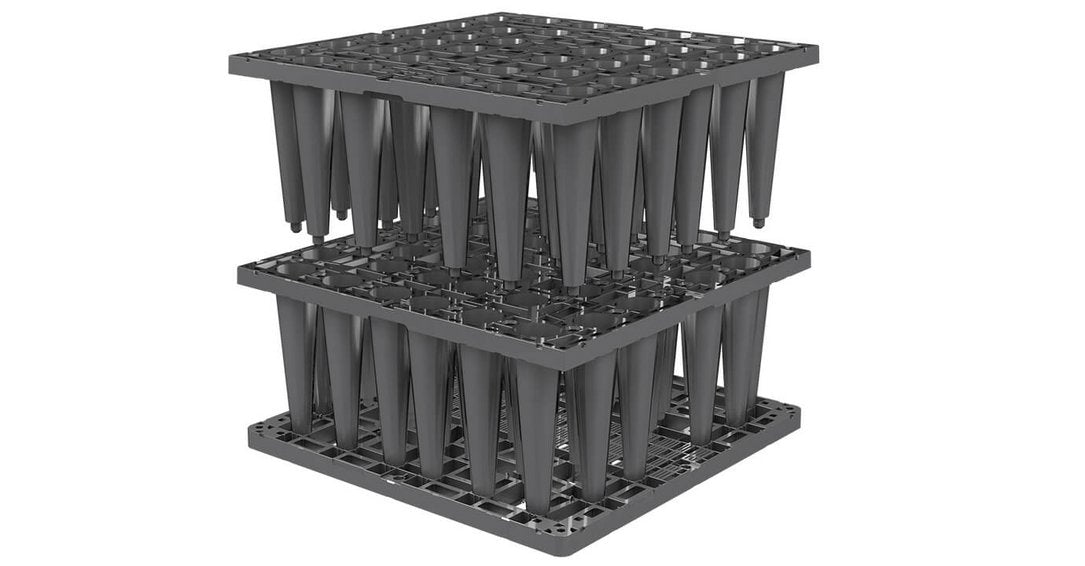

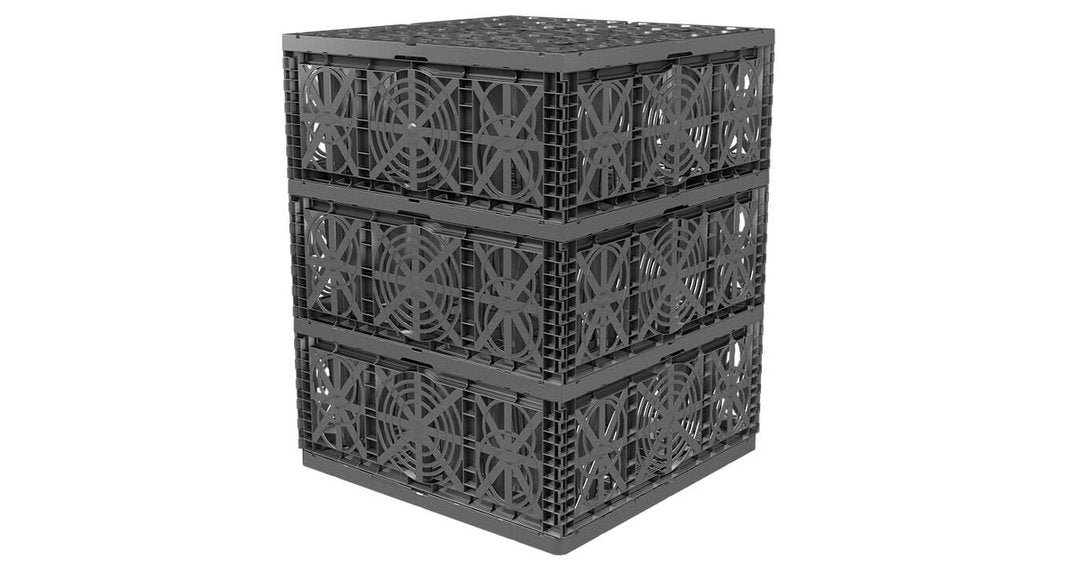

    You can stack multiple layers. Up to 8 layers deep is possible under certain conditions.
  5. Long Service Life
    Designed for durability (expected > 50 years) under proper installation and maintenance.
  6. Ease of Installation
    “Click”-together system, relatively light modules, fewer heavy lifting demands.









EcoBloc Inspect SMART – The Ultimate Stormwater Management Solution

The EcoBloc Inspect SMART (Product Code: 402500) from Barr Plastics is a specialized system designed for efficient stormwater management. This innovative product is perfect for underground stormwater storage systems, offering the exceptional benefit of easy inspection and maintenance. Built with high-quality recycled plastics, the EcoBloc Inspect SMART is designed to endure the tough conditions of underground installations while promoting sustainable practices.

Specifications

  • Material: High-quality recycled plastics
  • Modular Design: Customizable configurations
  • Inspection Features: Built-in access points for maintenance
  • Storage Capacity: High volume for stormwater storage
  • Hydraulic Performance: Engineered for effective drainage
  • Installation: Designed for both shallow and deep installations

Features

  • Durable Construction: Made from recycled materials for sustainability.
  • Versatile Design: Lightweight and easy to assemble for efficient handling.
  • Inspection Ready: Integrates with ports for straightforward maintenance checks.
  • High Storage Capacity: Capable of managing significant stormwater volume.
  • Effective Drainage: Promotes groundwater recharge and reduces flooding risks.

Benefits & Applications

The EcoBloc Inspect SMART addresses pressing stormwater management challenges. By providing a robust and modular solution, it enhances efficiency while minimizing costs associated with installation and materials. Its built-in inspection capabilities ensure ease of maintenance, allowing municipalities and contractors to monitor performance without extensive disruption. Applicable for various settings, the EcoBloc system is suitable for:

  • Residential and commercial developments
  • Retention and detention basins
  • Green infrastructure projects that prioritize sustainability

Why Buy from Barr Plastics

At Barr Plastics, we are committed to providing durable, reliable components backed by expert support. Our products are designed to support greener urban infrastructure while meeting the highest standards of performance. Plus, we can ship across Canada and the US through our distributor channels or partnered facilities. Don't miss out on the EcoBloc Inspect SMART for your next stormwater management project!

Order now and enhance your stormwater management capabilities with the EcoBloc Inspect SMART from Barr Plastics!

Dimensions

Height: 13"

Length: 31"

Width: 31"

Weight: 22.0 lb
