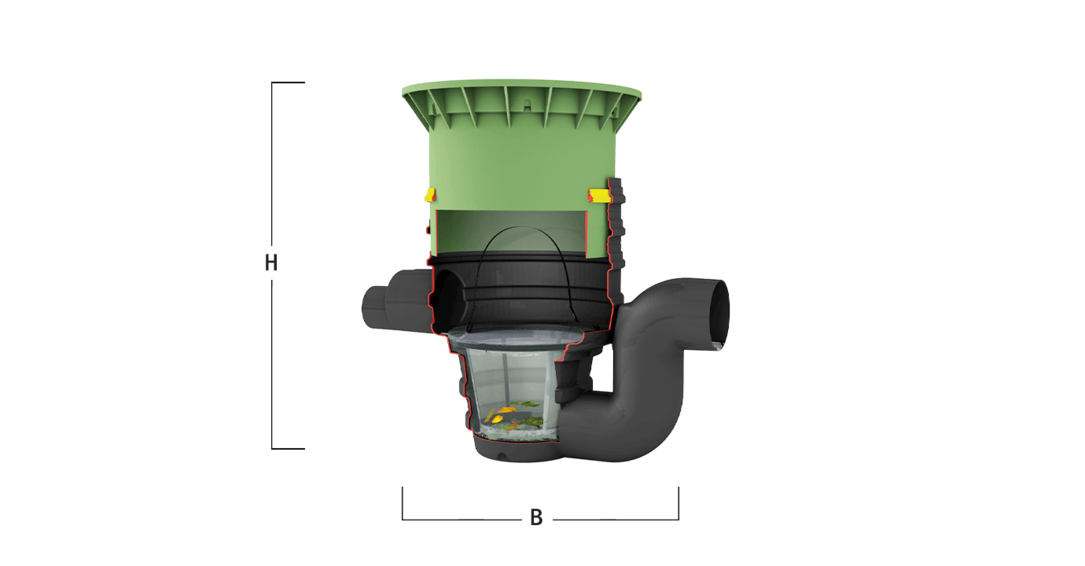

Drainstar Filter External for Vehicle Loading | 340144
Availability: 1 in stock |
SKU: 340144
The Drainstar External Filter is expertly designed for environments with vehicle traffic, offering advanced filtration and safety. Ideal for managing rainwater and stormwater in urban settings, this filter promotes sustainable water practices and enhances outdoor water management. It's built to be durable and efficient, requiring minimal maintenance while ensuring maximum performance. Whether for commercial or residential applications, the Drainstar filter is an excellent choice for effective water recycling.
Shop online at BARR Plastics.
The Drainstar External Filter is expertly designed for environments with vehicle traffic, offering advanced filtration and safety. Ideal for managing rainwater and stormwater in urban settings, this filter promotes sustainable...
The Drainstar External Filter is expertly designed for environments with vehicle traffic, offering advanced filtration and safety. Ideal for managing rainwater and stormwater in urban settings, this filter promotes sustainable water practices and enhances outdoor water management. It's built to be durable and efficient, requiring minimal maintenance while ensuring maximum performance. Whether for commercial or residential applications, the Drainstar filter is an excellent choice for effective water recycling.
Shop online at BARR Plastics.
Couldn't load pickup availability
Vehicle Loading
| Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|
| 340144 | Drainstar filter external | 16 l/s | 550 (21.7") | 650 (25.6") | DN 100 (4")
|
35 (77 lbs) |
- No height loss between inlet and outlet
- Filter insert with mesh width of 0.35 mm
- Continuously variable installation depth of 600 – 1050 mm provided by telescopic dome shaft
- Sealed up to ground level
- Ideally suited to infiltration and pond systems
- Maximum roof area of 350 m² with DN 110 connection and 500 m² with DN 160 connection
- DN 110 and DN 160 connections
Replacement Filter Basket
| Img | Part # | Description | Max Flow Rate | Diameter (mm) | Height (mm) | Connection(s) | Weight (kg) |
|---|---|---|---|---|---|---|---|
 |
340524 | Replacement Filter Basket for Universal Filter 3 External | N/A | N/A | N/A | N/A | N/A |
Drainstar Filter External for Vehicle Loading - Model 340144
The Drainstar Filter External for Vehicle Loading (Model 340144) is a cutting-edge solution designed to provide efficient filtration during the loading process of vehicles. Its primary purpose is to capture contaminants and particulates, preventing them from entering drains or waterways, thereby protecting the environment. Made by a trusted brand, this filter is crafted from high-grade materials that ensure durability in outdoor and industrial settings.
Specifications
- Model Number: 340144
- Material Composition: High-grade plastics or composites for durability and chemical resistance
- Dimensions: Compact enough for common loading setups (exact dimensions available on the manufacturer's product page)
Key Features
- Filtration Efficiency: Advanced technology captures solids and particulates, minimizing contamination risk
- Large Capacity: Handles significant volumes for heavy-duty liquid transfer applications
- Easy Maintenance: Accessible design for simple cleaning and upkeep, ensuring optimal performance
- Adapter Compatibility: Fits various loading scenarios and adapts to different vehicles and equipment
- Robust Construction: Built to withstand harsh conditions, including chemicals and extreme temperatures
Benefits & Applications
The Drainstar Filter is your ally in maintaining environmental compliance by reducing the risk of hazardous substances spilling into the environment during loading processes. This not only safeguards the ecosystem but also cuts costs related to cleanup and regulatory fines. Its versatile design makes it ideal for industries such as transportation, logistics, and food processing, where liquid integrity is crucial.
For instance, it effectively supports the transportation of hazardous materials, ensuring clean and safe loading for chemical transfers. In the food industry, it helps maintain the quality of liquid products, making it a smart choice for businesses that prioritize cleanliness.
Additionally, the filter’s easy installation and maintenance minimize downtime, enhancing operational efficiency and saving valuable time.
Why Buy from BARR Plastics?
At BARR Plastics, we pride ourselves on offering durable, reliable components supported by expert guidance and rapid shipping across Canada. Our commitment to customer satisfaction and quality products ensures you receive the best for your operational needs. Trust us to deliver what you need, when you need it. Barr Plastics can ship across Canada and the U.S. through our distributor channels or partnered facilities.
Order now to elevate your vehicle loading operations with the Drainstar Filter!
Dimensions
Height: 23"
Length: 23"
Width: 23"
Weight: 37.2 kg
