GRAF
600mm Filter/Shaft Seal | 381516
Availability:
16 in stock
SKU: 381516
Couldn't load pickup availability

| Part # | Description |
|---|---|
| 381516 | Filter/Shaft Seal for External Filters 600 |
Specifically for use with the Graf External Filter Packages for rainwater harvesting with the Carat S Tank System.
In rainwater harvesting systems, every component plays a critical role in maintaining the system’s efficiency, safety, and long-term performance. One often-overlooked but essential element is the filter or shaft seal—a simple yet indispensable piece that ensures a watertight, secure connection between filtration units and storage tanks.
The 600mm Filter/Shaft Seal (Part #381516) is designed specifically for use with Graf External Filter Packages and Carat S Underground Tanks. Whether you’re setting up a new rainwater collection system or maintaining an existing one, this seal is key to keeping water clean, uncontaminated, and flowing efficiently through your setup.
Product Overview
What It Is

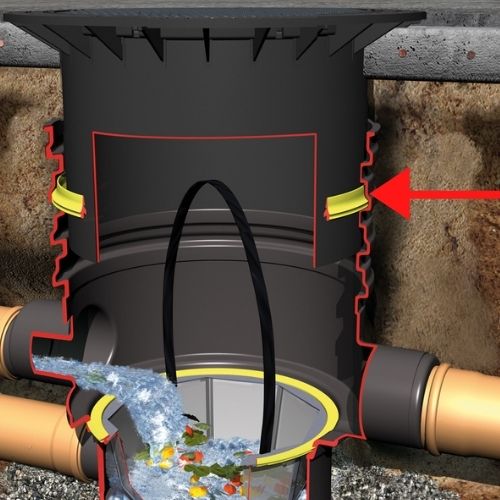

This product is a 600mm diameter rubberized seal engineered to provide a tight, leak-proof connection between external filters and the neck of an underground tank. It’s typically installed at the entry point where a Graf filter shaft or filtration component joins with the Carat S tank.
What It Does
Its main job? Prevent leaks and ensure unfiltered water doesn’t bypass the filter system. It maintains proper system integrity by:
- Forming a watertight seal around the filter shaft
- Preventing debris, insects, and contaminants from entering the tank
- Supporting long-term durability under ground pressure and shifting soil
Key Features
- Made for Graf Carat S Tanks
Precisely molded to match the specifications of the tank system. - Flexible & Durable Rubber Composition
Resists cracking, UV degradation, and damage over time. - Watertight Performance
Keeps unfiltered runoff out, making sure your tank only stores clean water. - Quick Installation
Push-fit design allows fast, secure installation—no adhesives or tools needed. - Lightweight (Approx. 0.5 lbs)
Easy to handle even for a single technician. - Dimensions
~21” in diameter (to match 600mm shaft systems), with tight tolerance sealing edge.
Use Cases
Residential Rainwater Harvesting
Homeowners looking to reduce water bills or make eco-friendly choices rely on well-sealed systems. This shaft seal is perfect for:
- Backyard irrigation systems
- Greywater toilet systems
- Landscaping water storage
Commercial or Agricultural Sites
Larger systems also need reliable components to scale effectively. This seal supports:
- Greenhouses and farms collecting roof runoff
- Commercial buildings with LEED-certified rainwater reuse
- Stormwater retention systems in parking lots
Municipal or Institutional Applications
Schools, parks, and municipalities using rainwater systems also benefit from a tight-seal solution to meet code requirements and improve operational reliability.
600mm Filter/Shaft Seal - Model 381516
The 600mm Filter/Shaft Seal from BARR Plastics is expertly designed for filtration and sealing applications. This robust product creates a reliable barrier where a shaft penetrates a housing, effectively keeping contaminants out of sensitive operational areas. Ideal for use in industrial machinery and water treatment facilities, this seal offers quality performance you can trust.
Specifications
- Diameter: 600mm
- Material: Durable elastomeric materials or thermoplastics
- Resistance: Particularly resistant to various fluids and chemicals
- Design: Features lip configurations for enhanced sealing performance
Features
- Creates a secure barrier to prevent contaminants from entering
- Accommodates slight misalignments, ensuring an effective seal
- Suitable for both dynamic and static sealing needs
- Engineered for durability and long-lasting performance
Benefits & Applications
The 600mm Filter/Shaft Seal significantly enhances system efficiency by preventing leaks, which in turn reduces downtime and maintenance costs. Its versatile design makes it suitable for a variety of applications across multiple industries. For instance, it plays a crucial role in industrial machinery, such as pumps and mixers, by ensuring fluid containment. In water treatment systems and filtration applications, it maintains clean operation by effectively sealing out contaminants.
Why Buy from BARR Plastics?
At BARR Plastics, we pride ourselves on providing durable and reliable components backed by expert support and efficient shipping throughout Canada and the US. Trust our 600mm Filter/Shaft Seal to deliver the performance and quality you need for your industrial and filtration applications. Order now and ensure your systems run smoothly!
Dimensions
Height: 21"
Length: 21"
Width: 21"
Weight: 0.5 lb
