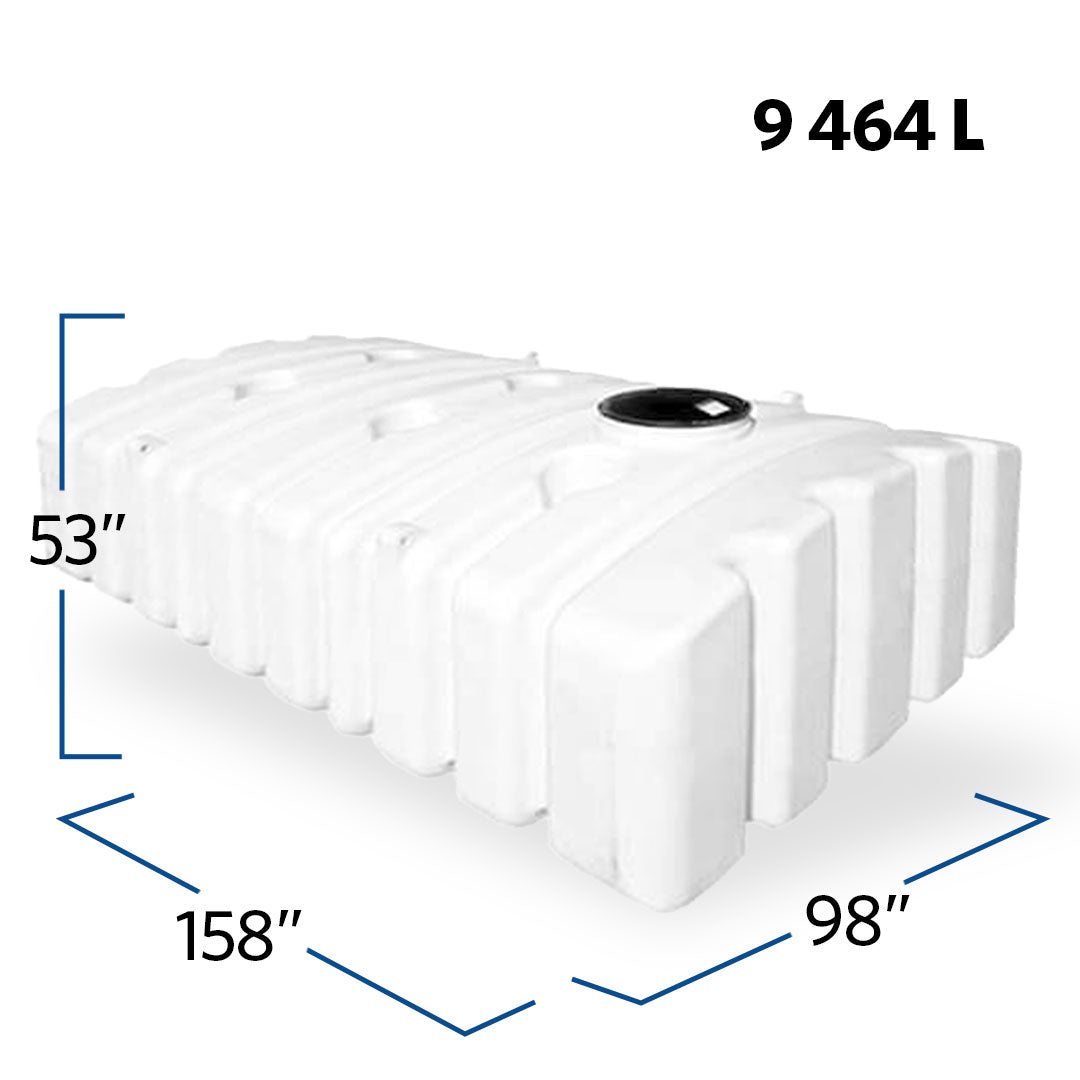

2500 Gallon Belowground Low Profile Cistern Holding Tank | 42119

Capacity			Part # / Drawing	Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Fitting (in)	Weight (lbs)	Availability	Description
USG	IG	LTR
2500	2100	9464	42119	98	158	53	1-20	extra	850		Holding tank



• largest capacity below ground poly storage tank made today.
• Typically used to store water - both potable and non-potable.
• Can also be used as a large capacity septic tank.
• The end ribs will accept fittings up to 4" in size.
• Integral columns in the tank give it excellent structural strength and help resist floatation.

Accessories

Img	Part #	Country	Size (in)	Description	Weight (lbs)	Product page
	63832	(US)	6 H x 20 D	Low Profile Manhole Extension	9	Open Product Page
	64233	(CA)	6 H x 20 D	Low Profile Manhole Extension	9	Open Product Page
	63833	(US)	15 H x 20 D	Low Profile Manhole Extension	13	Open Product Page
	64192	(CA)	15 H x 20 D	Low Profile Manhole Extension	13	Open Product Page
	63984		24 H x 20 D	Low Profile Manhole Extension	15	Open Product Page
	62395		12 D x 25 H riser pipe	Lid & Riser Combo	13	Open Product Page
	62408		20 D	Septic/Cistern tank lid with gasket	3	Open Product Page
	62942		20 D	Ethafoam gasket for 20" septic lid #62408	<1	Open Product Page
	63672		20 D	Low Profile Septic/Cistern tank lid with gasket	3	Open Product Page
	62406		#14 x 1-1/4	SS self tapping screw - 4 needed for #62408 lid	<1	Open Product Page
	63151		N/A	Septic Adapter SDR35 with nut & EPDM Gasket	3	Open Product Page
	63152		N/A	Septic Adapter SCH40 with nut & EPDM gasket	4	Open Product Page

2500 Gallon Belowground Low Profile Pump Chamber | 42119

The 2500 Gallon Belowground Low Profile Cistern Holding Tank | 42119 from BARR Plastics is expertly engineered for efficient water storage across a variety of applications. Its robust low-profile design allows for easier installation, particularly in areas with space restrictions for height. With a total capacity of 2500 gallons, this holding tank is ideal for residential, commercial, and agricultural needs.

Specifications

• Capacity: 2500 gallons
• Material: Heavy-duty, corrosion-resistant polyethylene
• Design: Low-profile above-ground visibility
• Use: Belowground installation
• Access: Includes access ports for maintenance

Features

• Durable Construction: Engineered for strength to endure soil pressure and external loads
• Easy Installation: Designed for simple belowground setup with reduced height requirements
• Water Protection: Keeps water cooler and shields it from contaminants and UV exposure
• Accessibility: Features access points for easy maintenance and inspection
• Compliance Ready: Adheres to local water storage regulations

Benefits & Applications

The 2500 Gallon Belowground Low Profile Cistern is designed to provide effective water storage solutions. Its expansive capacity supports a range of applications, including rainwater harvesting, irrigation, and fire protection. Residential properties can benefit from a reliable backup water supply, while commercial and agricultural operations can optimize water management and promote sustainability. By utilizing this robust system, industries can ensure efficient and long-lasting water storage while mitigating risks associated with water contamination.
