Choosing the Right Plastic for a Custom Liquid Tank: HDPE vs. Polypropylene and Other Weldable Thermoplastics

When you need a custom liquid storage tank, dimensions are only part of the design.

The material you choose affects chemical compatibility, operating temperature, impact resistance, outdoor life, fabrication, long-term deformation, and overall tank cost. A material that performs well for ambient-temperature water may be a poor choice for hot process chemicals. A material with high short-term tensile strength may still deform under continuous hydrostatic loading.

For most welded, atmospheric (Vented) custom tanks, HDPE and polypropylene are the most practical starting materials. Other thermoplastics such as PVC, CPVC, and PVDF can become valuable when temperature, chemical severity, fire behavior, purity, or stiffness create more demanding requirements.

At BARR Plastics, custom tanks and liquid handling equipment can be designed around the application rather than forcing your project to fit a standard tank.

Why Material Selection Matters for Custom Plastic Tanks

A storage tank operates under continuous load.

The liquid creates hydrostatic pressure against the tank walls. Fittings and piping create localized stresses. Temperature changes cause expansion and contraction. Outdoor installations introduce UV exposure and weather. Chemicals can change the long-term strength of the plastic.

For this reason, you should never choose tank material from tensile strength alone.

The research behind this article identifies several factors that can control the long-term design of a welded thermoplastic tank:

• Chemical identity and concentration
• Normal and upset  (max. operating)  temperatures
• Hydrostatic liquid level
• Long-term creep
• UV exposure
• Weld strength
• Nozzle and fitting loads
• Pressure or vacuum conditions
• Impact and transportation loads
• Required service life
• Food or potable-water requirements

The report specifically notes that creep, temperature, chemical reduction factors, weld factors, nozzle stresses, restraint, and fabrication quality may matter more than room-temperature tensile strength.

That is one of the main advantages of a custom fabricated tank. You can choose the material, dimensions, fittings, internal plumbing, access points, and structural configuration around the actual operating conditions.  Tailor-made to you application.

HDPE Tanks: A Strong General-Purpose Choice

For many ambient-temperature water and chemical storage applications, high-density polyethylene, or HDPE, is the logical starting point.

The report identifies HDPE as particularly suitable for:

• Water
• Wastewater
• Brines and salts
• Dilute acids
• Alkalis
• Oxidizers
• Many general aqueous chemicals
• Outdoor applications when a suitable UV-stabilized grade is used

HDPE combines high ductility, impact resistance, broad chemical resistance, relatively low material cost, and excellent weldability. Representative HDPE sheet in the report has approximately 25 MPa yield strength and more than 600% elongation, illustrating how much deformation the material can tolerate before breaking.

For outdoor service, material formulation matters. The research notes that carbon-black-stabilized polyethylene can provide strong weather resistance, while natural or inadequately stabilized polyethylene should not automatically receive the same outdoor rating.

Where BARR Plastics uses HDPE fabrication

BARR Plastics custom modifies HDPE tanks for water, wastewater, chemical storage, industrial facilities, rooftops, basements, and other challenging projects where standard tank configurations do not work.  Designs can incorporate specific dimensions, flange fittings, hatches, ladders and internal plumbing.

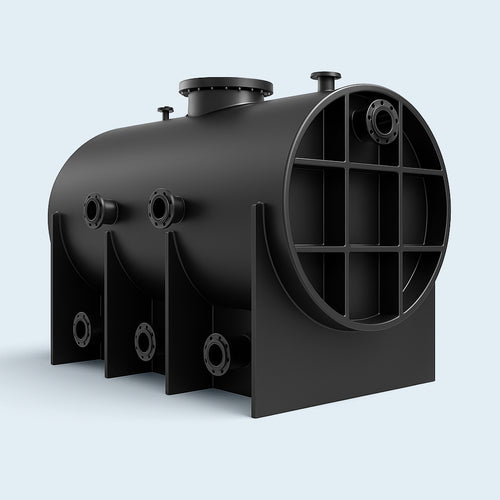

HDPE is also used in BARR Plastics' custom industrial liquid handling equipment, where corrosion resistance, impact resistance, weather resistance, and fabrication flexibility are important.

When HDPE makes the most sense

Consider an HDPE custom tank when your priorities include:

• Good impact resistance
• Outdoor durability
• Water or wastewater storage
• Moderate operating temperatures
• Corrosive aqueous liquids
• Lightweight construction
• Easy fabrication of unusual shapes
• Cost-effective large tank construction

HDPE becomes less attractive when temperature rises substantially or when highly oxidizing chemicals, aggressive solvents, or severe permeation requirements dominate the design.

Polypropylene Tanks: Better Suited to Higher Temperatures

When the application becomes hotter, polypropylene often becomes the stronger candidate.

The report compares representative PP-H with HDPE and finds polypropylene to be stiffer and stronger, with representative values around:

• 30 MPa yield strength
• 1.5 GPa tensile modulus

PP can also serve at substantially higher temperatures than HDPE when the stored chemical remains compatible.

BARR Plastics manufactures custom polypropylene tanks for water, wastewater, industrial solutions, and chemical storage. The company's PP tank systems can incorporate custom dimensions, flange fittings, access hatches, ladders, internal plumbing, and project-specific features.

Polypropylene homopolymer vs. copolymer

"Polypropylene" does not describe a single tank material.

The research distinguishes between PP homopolymer and impact-modified block copolymer.

PP homopolymer generally provides greater stiffness and strength.
Copoly PP  sacrifices some stiffness but gains substantially better impact and crack resistance.

That can matter when tanks operate in cold environments or could experience impacts during installation, transportation, or service.

BARR Plastics' tailor-made process copoly polypropylene vertical tanks are specifically designed around demanding industrial applications. The product is promoted for broad chemical resistance, custom fittings and fixtures, elevated-temperature service, and engineered operating conditions.

When polypropylene makes sense

PP is particularly attractive for:

• Chemical processing
• Heated process water
• Acids and alkalis
• Industrial process tanks
• Wastewater treatment
• Plating and finishing processes
• Chemical dosing systems
• Process equipment
• Applications where higher temperature capability matters

For compatible aqueous chemistry in approximately the 60°C to 90°C range, the research recommends considering PP first, with CPVC as an alternative when chemistry, stiffness, or fire characteristics favor it.

Actual permissible temperature depends on the exact material grade, chemical, concentration, structural loading, and tank design.

HDPE vs. Polypropylene for Custom or Customized Tanks

For many BARR Plastics projects, the initial comparison will be HDPE versus Copoly PP.



This explains why neither material is universally "better."

For an outdoor rainwater or wastewater tank, HDPE may offer the best balance.

For a heated chemical process tank, copoly polypropylene may provide the better performance envelope.

What About PVC Tanks?

Rigid PVC, or PVC-U, is considerably stiffer than HDPE or PP.

The report provides representative values near:

55 MPa yield strength
3 GPa tensile modulus

PVC also has significantly lower thermal expansion than HDPE or polypropylene. This helps reduce thermal movement and wall deflection.

It also offers strong resistance to many aqueous acids, bases, and salts.

However, PVC is less ductile and less impact tolerant. The report notes that its practical continuous-temperature ceiling is generally around 60°C, depending on grade and application.

PVC can therefore make sense where stiffness, dimensional stability, chemical resistance, and fire behavior matter more than impact toughness.

CPVC for Hotter Corrosive Chemical Service

CPVC extends many of PVC's advantages into a higher temperature range.

Representative data in the report show approximately:

• 51 MPa tensile strength
• 2.68 GPa tensile modulus
• 100°C Vicat softening temperature
• Practical industrial service approaching 90°C to 93°C for suitable grades and conditions

CPVC can become attractive for:

• Hot corrosive aqueous liquids
• Bleach and hypochlorite applications
• Acid handling
• Process equipment
• Applications requiring greater stiffness
• Situations where improved fire behavior matters

However, its chemical compatibility remains concentration and temperature-specific.

For example, the research notes that CPVC may perform well with industrial bleach under defined conditions while being unsuitable for solvents such as acetone, benzene, toluene, xylene, and several chlorinated or aromatic hydrocarbons.

CPVC welding also requires tighter process control than HDPE or PP.

PVDF for the Most Demanding Applications

At the high-performance end of the spectrum is PVDF.

PVDF has a significantly higher material cost, but the report identifies it as the strongest candidate when the application involves:

• Aggressive oxidizing chemicals
• Strong acids
• High temperatures
• High-purity liquids
• Severe outdoor exposure
• Low permeation requirements
• Semiconductor or pharmaceutical processing

Representative PVDF sheet data include tensile yield strength above 50 MPa, Vicat temperature near 140°C, and long-term air service around 140°C for the cited material.
PVDF also provides excellent intrinsic UV and weather resistance.

For ordinary water or mild chemical storage, that capability rarely justifies its cost. For severe chemical service, however, paying more for the correct material can make much more sense than repeatedly replacing an unsuitable tank.

Chemical Compatibility Requires More Than a Material Name

One of the most important conclusions from the research is that you cannot describe a tank material as simply "chemical resistant."

Compatibility depends on at least three factors:

Chemical + concentration + temperature

Time and structural stress also matter.

A material that performs extremely well in a chemical at 20°C could become unsuitable at 70°C.

Likewise, a laboratory coupon experiencing almost no mechanical load can survive while a loaded tank wall or welded nozzle develops environmental stress cracking.

For this reason, BARR Plastics customers requesting a custom tank should provide the exact liquid and operating conditions before final material selection.

• Useful information includes:
• Chemical name
• Concentration
• Specific gravity
• Normal operating temperature
• Maximum or upset temperature
• Required capacity
• Tank dimensions limitations  (Need to allow for seismic and overall width / dia.)
• Indoor or outdoor installation
• Fitting types,  sizes and locations
• Internal / External fixtures
• Pressure or vacuum conditions
• Required certifications or Engineering  (ie:  Seismic, snow load, etc.)

The BARR Plastics polypropylene tank page similarly asks customers to provide volume, available dimensions, liquid type and temperature, fitting requirements, and installation information when requesting a quote.

Custom Tanks for Restricted Spaces

Material selection is only part of the advantage of fabricated plastic tanks.

Standard rotationally molded tanks work well when you have enough space and can use a conventional size.

Custom fabrication becomes especially useful when the building dictates the tank geometry.

BARR Plastics manufactures custom structural-panel tanks for difficult installation environments such as underground parking areas in high-rise developments and restricted mechanical spaces. The company's systems can include custom dimensions, flange connections, internal inlet, outlet, and overflow plumbing, access hatches, and internal structural reinforcement.

This can provide an alternative to redesigning a building around an available tank or relying on heavy poured-in-place structures.

Custom tanks can support applications such as:

• Rainwater storage
• Stormwater detention
• Wastewater collection, holding and pumping
• Industrial process water
• Chemical storage
• Treatment systems for wastewater
• Mechanical rooms
• Basement installations
• Rooftop installations


Custom Marine and RV Tanks

Custom fabrication is particularly useful in boats and RVs because available space rarely matches a standard rectangular tank.

BARR Plastics manufactures custom water and wastewater tanks to fit application-specific dimensions.

Typical applications include:

• Freshwater
• Greywater
• Blackwater
• Auxiliary water storage
• Marine water management

For marine applications, BARR Plastics uses custom copoly tanks designed around vessel space and service requirements. The company's marine tanks use extrusion-welded seams and are pressure and leak tested.

One distinction is especially important.

BARR Plastics does not currently manufacture custom fuel tanks for these marine and RV applications.

That limitation aligns with the engineering research. Fuel storage creates additional concerns involving permeation, organic-solvent compatibility, vapor emissions, static electricity, fire requirements, and regulatory qualification. The report specifically advises against defaulting to a generic single-layer material for gasoline or mixed fuels.

Welding Quality Matters as Much as the Plastic

A custom tank is a welded structure.

That means the quality of the welding procedure has a direct effect on tank performance.
HDPE and PP are particularly well suited to:

• Hot-gas welding
• Extrusion welding
• Heated-tool butt welding

The report rates both as excellent candidates for these fabrication processes.

Common weld-related failure mechanisms include:

• Incomplete fusion
• Incorrect welding temperature
• Excessive heat
• Contamination
• Wrong welding rod
• Porosity
• Root gaps
• Residual stress
• Long-term creep around welds

BARR Plastics states that it uses DVS-certified and trained custom plastics fabricators and industrial plastic fabrication equipment for its custom tank work.

For an engineered liquid tank, good material selection and good fabrication need to work together.

The Material Selection Process

A useful selection process looks like this:

1. Define the liquid.
   Identify the exact chemical and concentration.
2. Define temperature.
   Include normal operating temperature and possible upset temperature.
3. Identify structural conditions.
   Determine volume, liquid height, specific gravity, fittings, external loads, and whether pressure or vacuum can occur.
4. Consider the environment.
   Will the tank operate indoors, outdoors, underground, in a cold climate, or in continuous UV exposure?
5. Identify special requirements.
   Examples include potable water, food contact, high purity, fire requirements, seismic considerations, or unusual chemical exposure.
6. Select the polymer and exact material grade.
   "HDPE" or "PP" alone may not provide enough information.
7. Engineer the tank around long-term loading.
   Wall thickness, reinforcement, weld factors, creep, fittings, and structural supports should match the actual operating conditions.  BARR uses FEA analysis for confirmation of design for Engineered custom Tanks and for specific operating conditions.


Quick Material Selection Guide

These are screening recommendations, not final material approvals. Exact grade, chemical concentration, temperature, design life, and tank loading still need evaluation.

Custom Tank Solutions from BARR Plastics

There is no single plastic that is ideal for every liquid tank.

For most atmospheric applications, the practical starting point is simple:

Choose HDPE for general-purpose ambient water, wastewater, outdoor, and mild chemical service.

Choose polypropylene when you need more temperature capability while retaining broad chemical resistance and fabrication flexibility.

More specialized thermoplastics can make sense when the chemical environment becomes more demanding.

BARR Plastics can fabricate tanks around your available space, required capacity, process liquid, fittings, access requirements, and installation conditions. Its custom manufacturing capabilities cover HDPE and polypropylene storage tanks, vertical process tanks, structural-panel tanks, industrial liquid handling equipment, marine holding tanks, and RV water and wastewater tanks.

Need a tank built around your process instead of forcing your process around a standard tank?

Send BARR Plastics your required volume, available dimensions, liquid or chemical, operating temperature, fitting requirements, and installation details.

Request a custom tank quote from BARR Plastics or call 1-800-665-4499 to discuss your application.
