SJE Rhombus

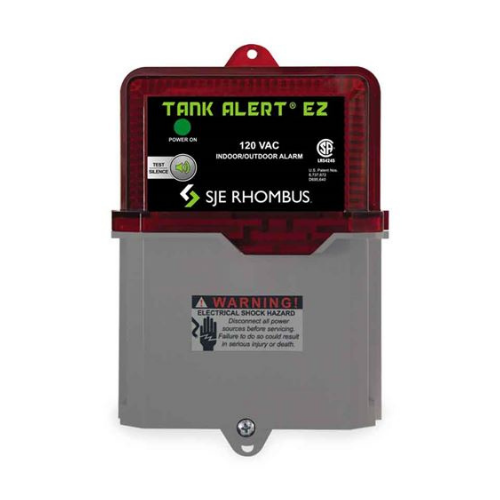

Tank Alert Outdoor Alarm Box | TAEZ-01X
Availability:
9 in stock
SKU: TAEZ-01X
Couldn't load pickup availability

| Part # | Description |
|---|---|
| TAEZ-01X | Tank Alert Outdoor Alarm Box |
Features
- Primary power: 120 VAC, 50/60 Hz, 3.8 watts max. (alarm condition)
- Secondary power: 9 VDC
- 2-color molded enclosure offers a distinct look; upper translucent half illuminates in alarm condition
- Removable lower cover provides greater access for easier fi eld wiring while the internal circuitry remains protected
- Interlocking enclosure features unique sound chamber to amplify the horn, while helping prevent moisture from entering
- External mounting tabs for easy installation
- Enclosure meets Type 3R water-tight standards
- Enclosure has indicator marks on bottom for easy placement of cord entry locations
- Automatic alarm reset, horn silence switch, and alarm test switch
- Alarm horn sounds at 82 decibels at 10 feet
- Alarm system (when installed on separate circuit) operates even if pump circuit fails
- Green power on indicator
- Includes auxiliary alarm contacts for easy attachment of remote devices
- CSA certified
- Five-year limited warranty
Tank Alert Outdoor Alarm Box (TAEZ-01X)
The Tank Alert Outdoor Alarm Box is a specialized device designed primarily for monitoring water tanks and alerting users to potential overflow conditions. Manufactured by Barr Plastics, this model (TAEZ-01X) excels in outdoor settings, effectively monitoring high water levels or leaks in various storage tanks, irrigation systems, and similar applications.
Specifications
- Dimensions: Lightweight and compact design for easy installation.
- Alarm Volume: Approximately 93 dB at 10 feet.
- Power Source: 110-120V AC power with options for battery backup.
- Temperature Range: Suitable for various climates.
Features
- Water Level Monitoring: Activates an alarm when water reaches a predefined level.
- Loud Alarm: Provides a 93 dB audible alarm to alert users from a distance.
- Visual Alerts: Includes LED indicators to show the status of the tank.
- Durable Outdoor Design: Waterproof and UV-resistant enclosure for outdoor installation.
- Easy Installation: User-friendly setup with detailed instructions provided.
- Compatibility: Works with plastic, fiberglass, and concrete tanks.
Benefits & Applications
The Tank Alert Outdoor Alarm Box solves critical monitoring challenges by detecting high water levels before they lead to overflow, thus preventing catastrophic failures and structural damage. Users gain peace of mind, knowing they will be promptly alerted to potential issues, effectively conserving water and saving costs in the long run. This reliable device is ideal for:
- Water Storage Tanks
- Irrigation Systems
- Residential and Commercial Applications
- Agricultural Use
Why Buy from Barr Plastics
At Barr Plastics, we provide durable, reliable components backed by expert support and quick shipping across Canada. Our commitment to quality ensures that customers receive effective solutions for their water management needs. Barr Plastics can ship across Canada and the US through our distributor channels or partnered facilities. Order now and ensure your water management systems are protected!
Dimensions
Height: 3"
Length: 7"
Width: 6"
Weight: 1.5 lb
