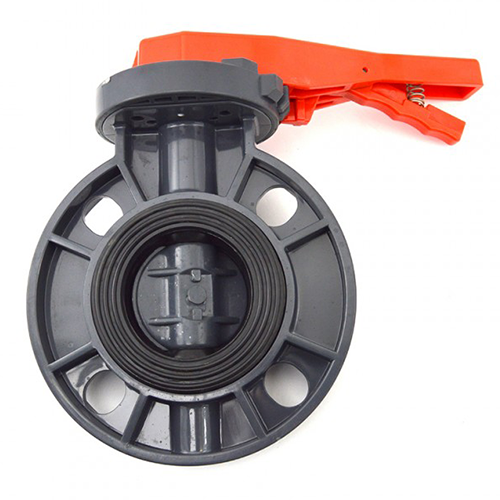

Standard PVC / CPVC Butterfly Valves
Built with blowout-proof stainless steel or titanium shafts, these reliable valves are fully supported and rated at 150 PSI. Additionally, they feature flange bolt holes and a wafer body or lug body design. Choose styles featuring a full body, v-notch liner or viton EPDM or nitrile liner.
All valves conform to ANSI B16.10. Face to face dimensions with stem extensions and gear operators. They feature electric or pneumatic actuators and a 2" square operating nut, PVDF discs and actuator mounts.
Built with blowout-proof stainless steel or titanium shafts, these reliable valves are fully supported and rated at 150 PSI. Additionally, they feature flange bolt holes and a wafer body or...
Built with blowout-proof stainless steel or titanium shafts, these reliable valves are fully supported and rated at 150 PSI. Additionally, they feature flange bolt holes and a wafer body or lug body design. Choose styles featuring a full body, v-notch liner or viton EPDM or nitrile liner.
All valves conform to ANSI B16.10. Face to face dimensions with stem extensions and gear operators. They feature electric or pneumatic actuators and a 2" square operating nut, PVDF discs and actuator mounts.
Couldn't load pickup availability
| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| BY110200VLA | 1-1/2 | 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110200NLA | 1-1/2 | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110200VLA | 2 | 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110200NLA | 2 | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110300VL | 3 | 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110300NL | 3 | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110400VL | 4 | 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110400NL | 4 | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110600VL | 6 | 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110600NL | 6 | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110800VG | 8 | 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110800NG | 8 | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY41100VG | 10 | 1 | FPM(viton) Liner and Seals PPL Body w/ PVC Disc |
| BY41100NG | 10 | 1 | Nitrile Liner and Seals w/ PPL Body and PVC Disc |
| BY44120VG | 12 | 1 | FPM(viton) Liner and Seals PPL Body w/ PVC Disc |
| BY41120NG | 12 | 1 | Nitrile Liner and Seals w/ PPL Body and PVC Disc |
Standard PVC / CPVC Butterfly Valves
The Standard PVC / CPVC Butterfly Valves from Barr Plastics are industrial-grade quarter-turn valves designed to efficiently control liquid flow in piping systems. Made from corrosion-resistant PVC or CPVC materials, these valves provide reliable service in chemical processing, water treatment, and various industrial applications. Available in lug and wafer styles, these valves fit flexible installation needs while delivering tight shutoff and ease of operation.
Features & Specifications
- Body Material: Durable PVC for cold water and mild chemicals; CPVC for higher temperatures up to 200°F (93°C) and aggressive chemicals
- Design Options: Lug-style for isolated flange installation; wafer-style for sandwich mounting between flanges
- Disc Material: PVC or CPVC variants with reinforced options for enhanced corrosion resistance
- Sealing: EPDM, Viton (FKM), or PTFE seat seals ensure tight shutoff and chemical compatibility
- Operation: Manual lever or gear handles; compatible with pneumatic or electric actuators for automation
- Sizes: Available from 1 inch to 12 inches to fit a wide range of piping systems
- Pressure Rating: Rated up to 150 psi depending on size and material
- Temperature Range: PVC up to 140°F (60°C); CPVC up to 200°F (93°C)
Benefits & Applications
Barr Plastics’ Standard PVC / CPVC Butterfly Valves solve flow control challenges by offering lightweight, corrosion-resistant valves that withstand harsh chemicals and varying temperatures. Their ease of installation and maintenance reduces downtime and operational costs. These valves excel in chemical processing plants, water and wastewater treatment facilities, pools and aquariums, industrial manufacturing, and agricultural irrigation systems. Their broad chemical compatibility and pressure handling make them ideal for controlling corrosive liquids or clean water with precision and reliability.
Why Buy from Barr Plastics
At Barr Plastics, we provide high-quality, durable butterfly valves backed by expert technical support and fast shipping across Canada and the US. Our extensive distribution channels and partnered facilities ensure reliable delivery for your project timelines. Trust Barr Plastics for corrosion-resistant, cost-effective valve solutions that meet your industrial flow control needs.
Order your Standard PVC / CPVC Butterfly Valves today or contact us for a quote!
