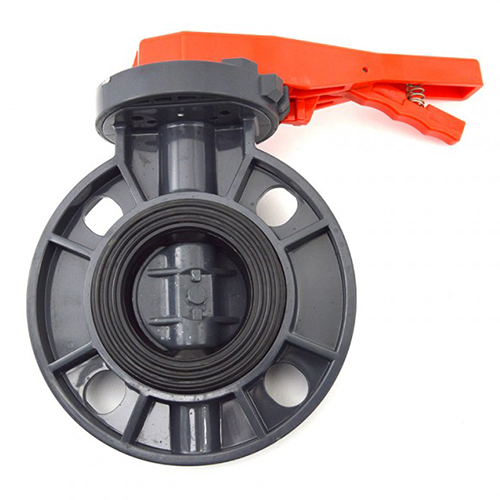

Standard PVC / CPVC Butterfly Valves
Built with blowout-proof stainless steel or titanium shafts, these reliable valves are fully supported and rated at 150 PSI. Additionally, they feature flange bolt holes and a wafer body or lug body design. Choose styles featuring a full body, v-notch liner or viton EPDM or nitrile liner.
All valves conform to ANSI B16.10. Face to face dimensions with stem extensions and gear operators. They feature electric or pneumatic actuators and a 2" square operating nut, PVDF discs and actuator mounts.
Built with blowout-proof stainless steel or titanium shafts, these reliable valves are fully supported and rated at 150 PSI. Additionally, they feature flange bolt holes and a wafer body or...
Built with blowout-proof stainless steel or titanium shafts, these reliable valves are fully supported and rated at 150 PSI. Additionally, they feature flange bolt holes and a wafer body or lug body design. Choose styles featuring a full body, v-notch liner or viton EPDM or nitrile liner.
All valves conform to ANSI B16.10. Face to face dimensions with stem extensions and gear operators. They feature electric or pneumatic actuators and a 2" square operating nut, PVDF discs and actuator mounts.
Couldn't load pickup availability
| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| BY110200VLA | 1-1/2Â | Â 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110200NLA | 1-1/2Â | Â 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110200VLA | 2Â | Â 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110200NLA | 2Â | Â 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110300VL | 3Â | Â 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110300NL | 3Â | Â 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110400VL | 4Â | Â 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110400NL | 4Â | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110600VL | 6Â | Â 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110600NL | 6Â | 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY110800VG | 8Â | Â 1 | FPM(viton) Liner and Seals PVC Body w/ PVC Disc |
| BY110800NG | 8Â | Â 1 | Nitrile Liner and Seals w/ PVC Body and PVC Disc |
| BY41100VG | 10 |  1 | FPM(viton) Liner and Seals PPL Body w/ PVC Disc |
| BY41100NG | 10Â | Â 1 | Nitrile Liner and Seals w/ PPL Body and PVC Disc |
| BY44120VG | 12Â | Â 1 | FPM(viton) Liner and Seals PPL Body w/ PVC Disc |
| BY41120NG | 12Â | Â 1 | Nitrile Liner and Seals w/ PPL Body and PVC Disc |
