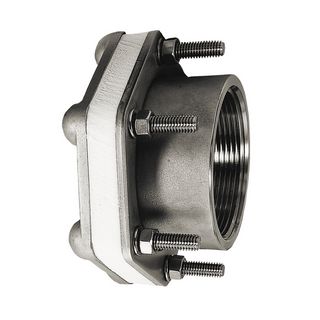

Stainless Steel Bolted Fittings
If you're looking for a very durable, leak and corrosion resistant fitting option to connect to your tank wall, our stainless steel bolted bulkheads serve as a reliable solution.
Bolts are threaded into the back plate of the fitting, so there are no welds or bolt holes that can be potential points of leakage. They come standard without a gasket (with the exception of the 4") and require a single gasket that is installed on the inside of the tank. Available gaskets are cross-linked foam polyethylene, EPDM and Viton (4" fitting comes standard with a cross-linked foam polyethylene gasket).
If you're looking for a very durable, leak and corrosion resistant fitting option to connect to your tank wall, our stainless steel bolted bulkheads serve as a reliable solution. Bolts...
If you're looking for a very durable, leak and corrosion resistant fitting option to connect to your tank wall, our stainless steel bolted bulkheads serve as a reliable solution.
Bolts are threaded into the back plate of the fitting, so there are no welds or bolt holes that can be potential points of leakage. They come standard without a gasket (with the exception of the 4") and require a single gasket that is installed on the inside of the tank. Available gaskets are cross-linked foam polyethylene, EPDM and Viton (4" fitting comes standard with a cross-linked foam polyethylene gasket).
Couldn't load pickup availability
| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 63216 | 1/2 | 36 | 316 Stainless steel, double threaded |
| 64251 | 3/4 | 36 | 316 Stainless steel, double threaded bolted fitting, w/EPDM gasket |
| 62948 | 1 | 36 | 316 Stainless steel, double threaded |
| 63205 | 1/2-1 | 100 | EPDM gasket for 63216, 64251 and 62948 |
| 63224 | 1/2-1 | 100 | Viton gasket for 63216, 64251 and 62948 |
| 62950 | 1/2-1 | 100 | Cross-linked polyethylene gasket for 63216, 64251 and 62948 |
| 63036 | 1 1/4 | 36 | 316 Stainless steel, double threaded bolted fitting, less gasket |
| 63041 | 1 1/4 | 100 | Cross-linked polyethylene gasket for 63036 |
| 64253 | 1 1/2 | 100 | 316 Stainless steel, double threaded |
| 63426 | 1 1/2 | 100 | EPDM gasket for 63426 |
| 63042 | 1 1/2 | 100 | Cross-linked polyethylene gasket for 63426 |
| 63038 | 2 | 8 | 316 Stainless steel, double threaded |
| 62847 | 2 | 8 | 316 Stainless steel, single threaded bolted fitting, less gasket |
| 63206 | 2 | 50 | EPDM gasket for 63038 & 62847 |
| 63225 | 2 | 50 | Viton gasket for 63038 & 62847 |
| 62848 | 2 | 50 | Cross-linked polyethylene gasket for 63038 & 62847 |
| 63039 | 3 | 4 | 316 Stainless steel, double threaded |
| 63233 | 3 | 4 | 316 Stainless steel, single threaded |
| 63223 | 3 | 25 | EPDM Gasket for 63039 & 63233 |
| 63226 | 3 | 25 | Viton Gasket for 63039 & 63233 |
| 61043 | 3 | 25 | Cross-linked polyethylene gasket for 63039 & 63233 |
| 63069 | 4 | 4 | 316 Stainless steel, double threaded |
| 63689 | 4 | 25 | Cross-linked polyethylene gasket for 63069 |
Stainless Steel Bolted Fittings
The BARR Plastics Stainless Steel Bolted Fittings are premium connectors designed for durability and corrosion resistance, ideal for piping and plumbing applications. These fittings excel in environments where hygiene and high-pressure endurance are crucial. Perfect for industrial, food processing, and chemical facilities, our stainless steel bolted fittings ensure safe and reliable connections every time.
Features & Specifications
- High-Quality Material: Constructed from durable stainless steel, choosing between 304 and 316 grades for optimal corrosion resistance.
- Variety of Types: Includes flanges, adapters, couplings, elbows, and tees to meet diverse piping needs.
- Bolted Connections: Secure and reusable design allows for easy maintenance and adjustments.
- Leak-Proof Gasket Compatibility: Pairs with gaskets to ensure a reliable, leak-free seal, even under high pressure.
- Robust Durability: High-load carrying capacity suitable for various industrial applications.
- Easy to Maintain: Components can be disassembled for effortless inspections and repairs.
- Compliance Standards: Meets industry specifications for safety and compatibility with existing systems.
Benefits & Applications
Our stainless steel bolted fittings are engineered to solve your connection challenges in demanding environments. Their exceptional corrosion resistance and structural integrity make them ideal for industrial manufacturing processes, petrochemical plants, and water treatment facilities. Additionally, they are perfectly suited for food and beverage applications, thanks to their sanitation-friendly design. In the pharmaceutical industry, they meet strict hygiene standards, ensuring safe and compliant operations. By investing in these fittings, you enhance system reliability and reduce potential downtime through easy maintenance practices.
Why Buy from BARR Plastics
At BARR Plastics, we focus on providing durable, high-quality components backed by expert advice and rapid shipping across Canada and the US through our distributor channels and partnered facilities. Our stainless steel bolted fittings guarantee long-lasting performance, ensuring your projects meet the highest standards of durability and reliability.
