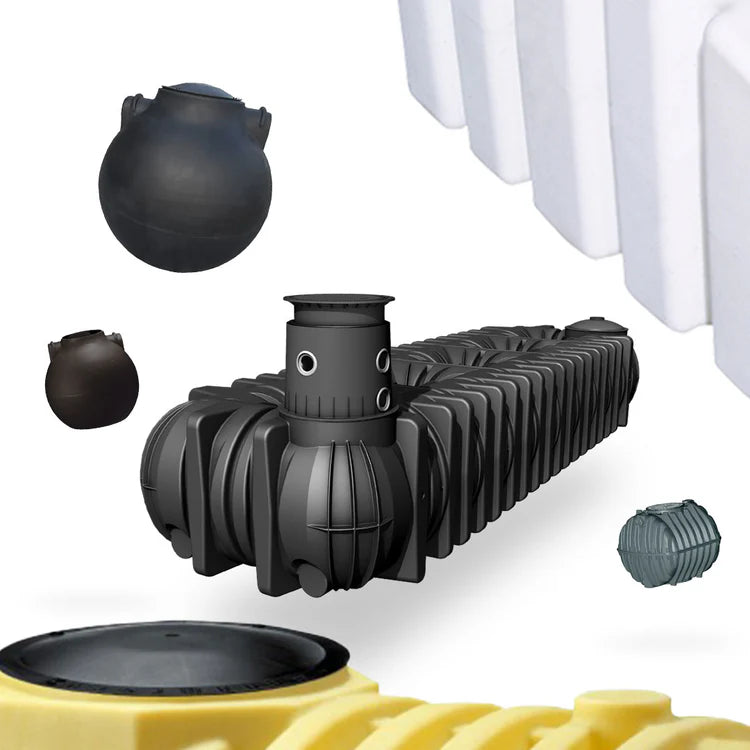

Septic & Sewage Tanks

  1. Spherical Septic & Sewage Holding Tanks
  2. Low Profile Heavy Duty Septic Tanks
  3. Platin XL
  4. Platin XXL
  5. Platin Low-Profile Tanks
  6. Graf HD Holding Tanks
  7. GRAF HD Holding Tank Domes
  8. Low Profile Belowground Tanks
  9. Low Profile Belowground Tanks Manway Extentions, Lids & Accessories
  10. Low Profile Aboveground Tanks
  11. Commercial Fibreglass Wastewater Tanks

Spherical Septic & Sewage Holding Tanks Low Profile Heavy Duty Septic Tanks Platin XL Platin XXL Platin Low-Profile Tanks Graf HD Holding Tanks GRAF HD Holding Tank Domes Low Profile...
Read More
  1. Spherical Septic & Sewage Holding Tanks
  2. Low Profile Heavy Duty Septic Tanks
  3. Platin XL
  4. Platin XXL
  5. Platin Low-Profile Tanks
  6. Graf HD Holding Tanks
  7. GRAF HD Holding Tank Domes
  8. Low Profile Belowground Tanks
  9. Low Profile Belowground Tanks Manway Extentions, Lids & Accessories
  10. Low Profile Aboveground Tanks
  11. Commercial Fibreglass Wastewater Tanks

Click on Part # to view tank drawing

Spherical Septic & Sewage Holding Tanks

Installation Instructions
Capacity Part #/ Drawing Dia./ Width (in) Length (in) Height (in) Lid/Fill Opening (in) Weight (lbs)
USG IG LTR
200 165 757 44950 47 N/A 56 1 - 20 N/A
300 250 1135 41319 / 44946 54 N/A 54 1 - 20 124
500 416 1893 40785 64 N/A 67 1 - 20 174


Capacity Part #/ Drawing Dia./ Width (in) Length (in) Height (in) Lid/Fill Opening (in) Weight (lbs)
USG IG LTR
200 165 757 44950-PL 47 N/A 56 1 - 20 80
300 250 1135 41319-PL / 44946-PL 54 N/A 54 1 - 20 124
500 416 1893 40785-PL 64 N/A 67 1 - 20 174


Low Profile Heavy Duty Septic Tanks

Installation Guidelines
Capacity USA Part #/ Drawing CA Part # Dia./ Width (in) Length (in) Height (in) Lid/Fill Opening (in) Weight (lbs)
USG IG LTR
500 416 1893 41320 (single chamber) N/A 51 101 42 1-20 174
500 416 1893 41320 (pre-plumbed) N/A 51 101 42 1-20 174
1000 833 3785 42405 (single chamber) N/A 60 127 51 2 - 20 357
1000 833 3785 43517 (dual chamber) 44948 60 127 51 2 - 20 357
1250 1041 4732 43519 (single chamber) N/A 60 157 51 2 - 20 423
1250 1041 4732 43503 (dual chamber) N/A 60 157 51 2 - 20 423
1500 1249 5678 43518 (single chamber) N/A 69 157 51 2 - 20 581
1500 1249 5678 43504 (dual chamber) 44173 69 157 51 2 - 20 581


Platin XL

Platin XL - Installation Guidelines
Capacity Part # / Drawing Dia./ Width Length Height(Tank Shoulder) Height (Dome Collar) Lid/Fill Opening Weight (lbs) Product Page
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
2642 2199 10000 N/A 390822 88" 193" 51" 12" 24" &various fitting locations 1014 Open Product Page
3962 3299 15000 N/A 390823 89" 295" 51" 12" " 1565 Open Product Page


Platin XXL

Platin XXL - Installation Guidelines
Capacity Part # / Drawing Dia./ Width Length Height(Tank Shoulder) Height (Dome Collar) Lid/Fill Opening Weight (lbs) Product Page
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
5283 4399 20000 N/A 391810 88" 370" 51" 12" 24" &various fitting locations 1962 Open Product Page
6604 5499 25000 N/A 391811 88" 459" 51" 12" " 2513 Open Product Page


Platin Low-Profile Tanks

Platin - Installation Guidelines
Capacity Part # / Drawing Dia./ Width Length Height (Tank Shoulder) Height (Dome Collar) Lid/Fill Opening Weight (lbs) Product Page
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
400 330 1500 N/A 390000 50" 83" 27" 12" 24" & various fitting locations 176 Open Product Page
790 660 3000 N/A 390001 82" 96" 29" 12" " 375 Open Product Page
1320 1100 5000 N/A 390002 90" 114" 37" 12" " 530 Open Product Page
1980 1650 7500 N/A 390005 89" 142" 50" 12" " 795 Open Product Page


Graf HD Holding Tanks

Install & Operations Guidelines
Capacity Part # / Drawing Dia./ Width (in) Length (in) Height (in) Lid/Fill Opening (in) Fitting (in) Weight (lbs) Product Page
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
700 283 2700 N/A 372024 61 82 55.1 31.5 N/A 265 Open Product Page
1000 833 3750 N/A 372025 69 90 62.6 31.5 N/A 331 Open Product Page
1250 1041 4800 N/A 372026 78 90 71.7 31.5 N/A 408 Open Product Page
1700 1416 6500 N/A 372027 86 94 81.7 31.5 N/A 485 Open Product Page
1700 1416 6500 Extension Tank 372014 86 94 82.7 31.5 N/A 490 Open Product Page

GRAF HD Holding Tank Domes

Part # Description Weight (lbs) Product Page
375041 Carat S Tank Dome Mini W/O Sealing Set N/A Open Product Page
375040 Carat S Tank Dome Maxi W/O Sealing Set N/A Open Product Page
371010 Mini Telescopic Dome Shaft Green with PP Lid, suitable for pedestrian loading 13.2 Open Product Page
371011 Maxi Telescopic Dome Shaft Green with PP Lid, suitable for pedestrian loading. 28.7 Open Product Page
371020 Telescopic Dome Shaft with Cast Iron Lid, suitable for vehicle loading. N/A Open Product Page
371009 Carat Tank Dome Micro w/ Lid (Seal# 330210 Required) N/A Open Product Page
375043 Mini / Maxi Tank Dome Sealing Set N/A Open Product Page
330200 Profile Gasket 600mm For Telescopic Dome Shaft 1 pc included in 375043 Open Product Page
330210 Carat Tank to Tank Dome Seal 1 pc included in 375043 Open Product Page
332033 4 in. SCH 40 Pipe Seal DN 100 Black - Wall Thickness 9-13mm 5 pcs Included in 375043 Open Product Page
330612 4 in. Tank Dome Inlet Plug (Sleeve Socket DN 110) 5 pcs Included in 375043 Open Product Page


Low Profile Belowground Tanks

Installation Guidelines
Capacity Part # / Drawing Dia./ Width (in) Length (in) Height (in) Lid/Fill Opening (in) Fitting (in) Weight (lbs) Availability
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
2000 1600 7570 42559 N/A 98 126 53 1-20 extra N/A WA
2500 2100 9464 42119 N/A 98 158 53 1-20 extra 850
2520 2100 9464 44080 N/A 98 158 53 1-20 extra 850 E
3525 2935 13340 44390 N/A 102 211 51 1-20 extra CA
5025 4184 19021 44876 N/A 102 211 73 1-20 extra U, M

Manway Extentions, Lids & Accessories

Part # (US) Part # (CA) Size (in) Description Weight (lbs)
63832 64233 6 H x 20 D Low Profile Manhole Extension 9
63833 64192 15 H x 20 D Low Profile Manhole Extension 13
63984 63984 24 H x 20 D Low Profile Manhole Extension 15
62395 N/A 12 D x 25 H riser pipe Lid & Riser Combo 13
62408 N/A 20 D Septic/Cistern tank lid with gasket 3
62406 N/A #14 x 1-1/4 SS self tapping screw - 4 needed for #62408 lid <1
62942 N/A 20 D Ethafoam gasket for 20" septic lid #62408 <1
63151 N/A N/A Septic Adapter SDR35 with nut & EPDM Gasket 3
63152 N/A N/A Septic Adater SCH40 with nut & EPDM gasket 4


Low Profile Aboveground Tanks

Capacity Part # / Drawing Dia./ Width (in) Length (in) Height (in) Lid/Fill Opening (in) Fitting (in) Weight (lbs) Availability
USG IG LTR Premium Weight 1.5-1.7 SG Heavy Weight 1.9 SG
50 42 189 LP0050-RT N/A 24 42.5 14.5 8 1 26
68 57 257 LP0068-RT N/A 26 42 17 5 1 40
110 92 416 LP0110-RT N/A 35 48 19 5 1 59
200 167 757 LP0200-RT N/A 48 60 19 8 N/A N/A
300 250 1136 LP0300-RT N/A 48 80 21 8 2 135
300 250 1136 LP0300-HT N/A 56 95 16 6 3 132
300 250 1136 45317 N/A 56 95 16 6 3 132 E
366 305 1386 E305LP N/A 59 73 25 16 N/A N/A
500 416 1892 44643 N/A 52 130 23 8 N/A N/A M
600 500 1900 43149 N/A 72 96 29 16 N/A N/A E
600 500 2273 G500LP N/A 88 80 23 16 2 355
1000 832 3785 45735 N/A 90 134 21 8 N/A N/A M
1201 1000 4546 G1000LP N/A 88 152 23 16 2 465
1250 1075 4732 42890 N/A 84 131 36 16 2 355 E
1590 1325 6025 42891 N/A 84 131 42 16 2 465 E
1610 1340 6090 43157 N/A 80 126 53 16 2 465 E
2520 2100 9545 44335 N/A 90 157 51 16 2 E


Commercial Fibreglass Wastewater Tanks

Literature
Capacity Part # / Drawing Dia./ Width
 Length Lid/Fill Opening Fitting Weight (Kgs) Location
USG IG LTR Heavy Weight 1.9 SG
4000 3331 15000 FRPBG-4000 8' 13' Custom Custom 600 E
5000 4163 20000 FRPBG-5000 8' 16' 8" Custom Custom 900 E
7000 5828 25000 FRPBG-7000 8' 19' 10" Custom Custom 1100 E
8000 6661 30000 FRPBG-8000 8' 23' 8" Custom Custom 1300 E
9000 7494 35000 FRPBG-9000 8' 26' 8" Custom Custom 1500 E
10000 8326 35000 FRPBG-10000 10' 18' 11" Custom Custom N/A E
11000 9159 40000 FRPBG-11000-8 8' 30' 7" Custom Custom 1800 E
11000 9159 40000 FRPBG-11000-10 10' 20' 7" Custom Custom N/A E
12000 9992 45000 FRPBG-12000-8 8' 34' Custom Custom 1900 E
12000 9992 45000 FRPBG-12000-10 10' 22' Custom Custom N/A E
13000 10824 50000 FRPBG-13000-8 8' 36' 11" Custom Custom 2100 E
13000 10824 50000 FRPBG-13000-10 10' 24' 5" Custom Custom 2600 E
14000 11657 55000 FRPBG-14000-8 8' 40' 3" Custom Custom N/A E
14000 11657 55000 FRPBG-14000-10 10' 27' 2" Custom Custom 2900 E
16000 13322 60000 FRPBG-16000-8 8' 44' 3" Custom Custom 2600 E
16000 13322 60000 FRPBG-16000-10 10' 28' 11" Custom Custom 3100 E
17000 14155 65000 FRPBG-17000-8 8' 47' 7" Custom Custom 2900 E
17000 14155 65000 FRPBG-17000-10 10' 31' 5" Custom Custom 3400 E
19000 15820 70000 FRPBG-19000 10' 34' 1" Custom Custom 3600 E
20000 16653 75000 FRPBG-20000-10 10' 35' 9" Custom Custom 3800 E
21000 17485 80000 FRPBG-21000 10' 38' Custom Custom 4000 E
20000 16653 80000 FRPBG-20000-12 12' 29' 4" Custom Custom 4200 CA
23000 19151 85000 FRPBG-23000 10' 40' 3" Custom Custom 4200 E
24000 19983 90000 FRPBG-24000 10' 42' 10" Custom Custom 4500 E
25000 20816 95000 FRPBG-25000-10 10' 44' 6" Custom Custom 5000 E
25000 20816 95000 FRPBG-25000-12 12' 35' 7" Custom Custom 4900 CA
27000 22481 100000 FRPBG-27000 10' 47' Custom Custom 5400 E
30000 24979 115000 FRPBG-30000-10 10' 52' 9" Custom Custom 5500 E
30000 24979 120000 FRPBG-30000-12 12' 43' 1" Custom Custom 6000 CA
35000 29142 135000 FRPBG-35000-10 10' 61' 6" Custom Custom 6400 E
35000 29142 135000 FRPBG-35000-12 12' 49' 4" Custom Custom 6700 CA
40000 33306 150000 FRPBG-40000-10 10' 70' 2" Custom Custom 7300 E
40000 33306 150000 FRPBG-40000-12 12' 54' 4" Custom Custom 7400 CA
48000 39967 185000 FRPBG-48000 12' 65' 7" Custom Custom 8800 CA
50000 41632 190000 FRPBG-50000 12' 68' 1" Custom Custom 9100 CA
