600 USG Vertical Rainwater Harvesting Package with Pump
The 600 USG Vertical Rainwater Harvesting Package is a complete solution for collecting, filtering, storing, and distributing rainwater around your property.

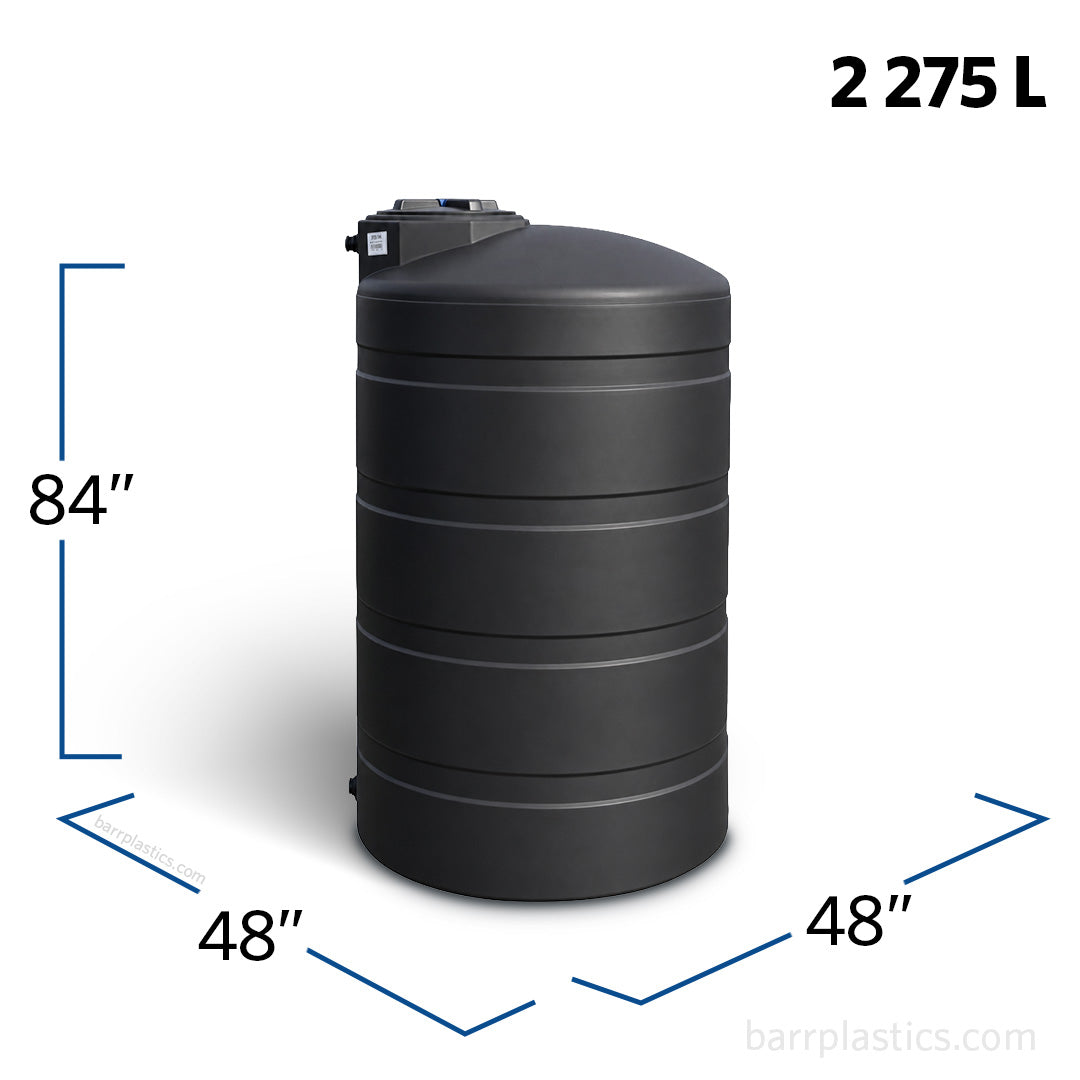

Built around a durable 600 US gallon black vertical tank, this package gives you approximately 2,270 litres of water storage. It also includes pre-filtration, a first-flush diverter, outlet fittings, and a Flojet 5 GPM diaphragm pump, giving you a practical system for moving collected water where you need it.
The black tank helps limit light penetration into the stored water, while the filtration components help reduce leaves, roof debris, and contaminants entering the tank.
How the System Works
Rainwater flows from your roof and gutter system toward the tank.
The Leaf Eater helps remove leaves and larger debris before the water enters the system.
The First Flush Diverter redirects the first portion of rainfall, which can contain dust, pollen, bird droppings, and other material that has accumulated on the roof between rain events.
Cleaner rainwater then enters the 600 USG storage tank.
When you need the stored water, the Flojet diaphragm pump provides pressurized water flow for compatible non-potable applications.
Tips for Getting the Most from Your System
Install the tank on a solid, level base.
A full 600 USG tank can hold more than two tonnes of water. The supporting surface should be stable, level, and designed to handle the weight.
Position the tank near your downspout.
A shorter route between your gutter system and tank can simplify installation and improve water collection.
Clean the Leaf Eater regularly.
Remove accumulated leaves and debris so water can continue flowing freely into the system.
Maintain the First Flush Diverter.
Inspect and empty the diverter periodically to keep it operating effectively.
Plan for overflow.
During heavy rainfall, the tank may fill completely. Direct overflow water toward an appropriate drainage or landscaped area and away from building foundations.
Protect the pump.
Install and operate the Flojet pump according to the manufacturer's requirements. Protect electrical components from weather and avoid allowing the pump to run dry.
Use stored water between rain events. Keeping available storage capacity in the tank allows you to capture more water during the next rainfall.
Package Includes
-
44517 - 600 USG Vertical Tank, Black
-
RHAD100 - 3"/4" Leaf Eater
-

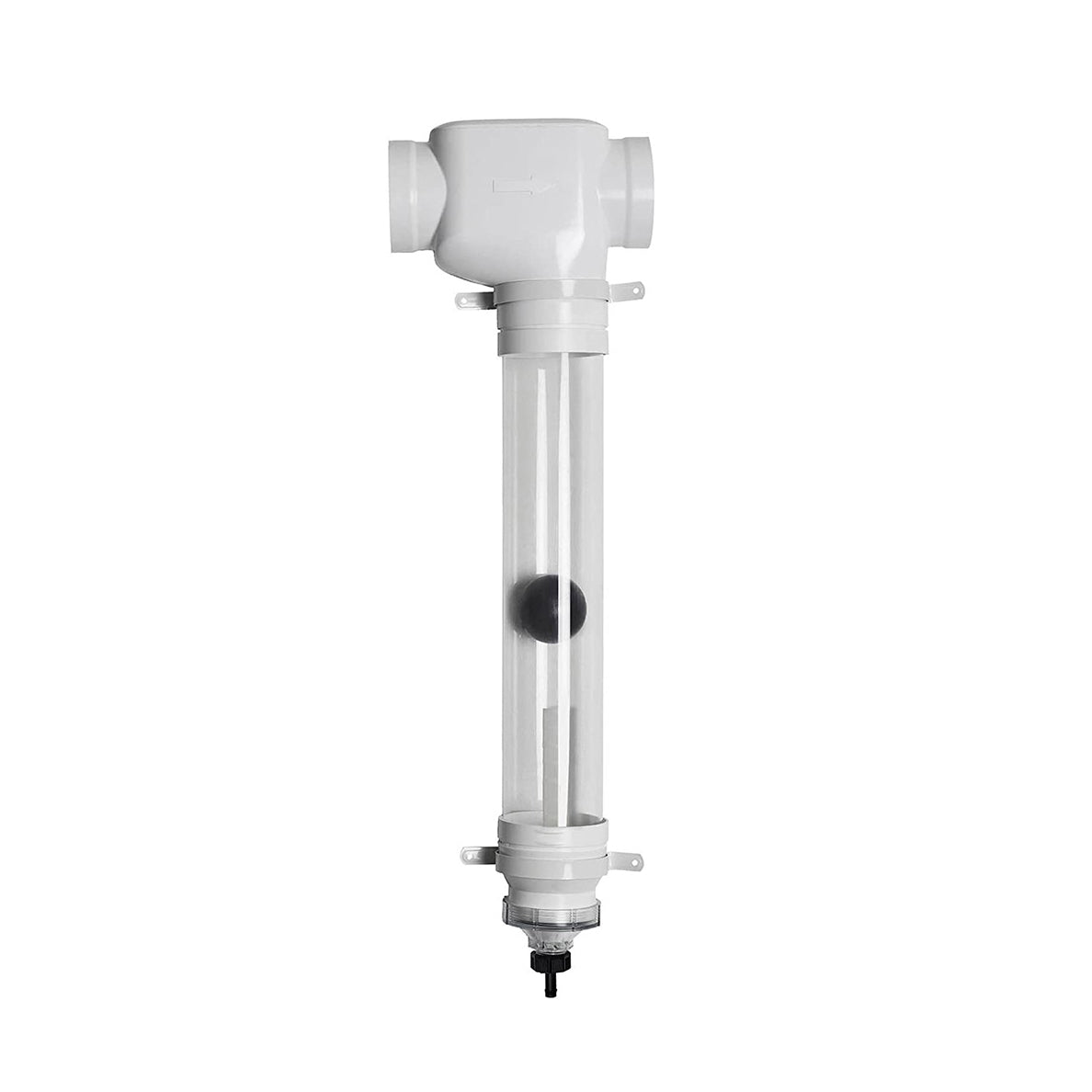

WDDP111 - 4" First Flush Diverter
-
62286 - 2" Bolted Ball Valve
-
62195 - 2" to 3/4" Reducer
-
04300525A - Flojet Diaphragm Pump, 115V, 5 GPM
Ways to Use Your Collected Rainwater
This package can be a practical option for:
- Garden and landscape irrigation
- Watering trees and flower beds
- Greenhouses
- Connecting to a garden hose
- Washing outdoor tools and equipment
- Property maintenance
- Other suitable non-potable water applications
The included pump makes the system especially useful when gravity-fed water pressure is not enough.
Build a More Practical Rainwater System
Capture more of the rain falling on your property and put it to useful work.
The 600 USG Vertical Rainwater Harvesting Package gives you the essential components for filtration, storage, water control, and pumped distribution in one convenient setup.
Get your complete rainwater harvesting package from BARR Plastics today.
