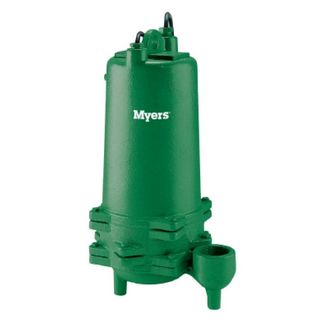

Myers ME Series Effluent Pumps
The Myers Effluent and Drainage ME Series pumps feature high-efficiency, two-vane, enclosed impellers. These provide ideal performance for efficient dosing and eliminate the possibility of jamming or corrosion between impeller and volute. The pumps feature high-torque, permanent split capacitor (PSC), single-phase motors; no starting switches or relays to wear out. The pumps are oil-filled to provide maximum heat dissipation and continuous bearing lubrication.
Additional features include optional seal leak probes to warn of seal leak condition, helping prevent costly motor damage.The pump also has on-winding current and temperature- sensitive overload to protect against costly burnout.
If wear should ever occur, the volute seal ring is replaceable to restores pump to original performance. The motor is held in place by 4 screws for easy removal if service is needed.
The Myers Effluent and Drainage ME Series pumps feature high-efficiency, two-vane, enclosed impellers. These provide ideal performance for efficient dosing and eliminate the possibility of jamming or corrosion between impeller...
The Myers Effluent and Drainage ME Series pumps feature high-efficiency, two-vane, enclosed impellers. These provide ideal performance for efficient dosing and eliminate the possibility of jamming or corrosion between impeller and volute. The pumps feature high-torque, permanent split capacitor (PSC), single-phase motors; no starting switches or relays to wear out. The pumps are oil-filled to provide maximum heat dissipation and continuous bearing lubrication.
Additional features include optional seal leak probes to warn of seal leak condition, helping prevent costly motor damage.The pump also has on-winding current and temperature- sensitive overload to protect against costly burnout.
If wear should ever occur, the volute seal ring is replaceable to restores pump to original performance. The motor is held in place by 4 screws for easy removal if service is needed.
Couldn't load pickup availability
| Part # / Model | Motor Type & HP | Max. PSI / Head | Max. Flow Capacity | Inlet / Outlet Size | Liquid Temp. | Electrical Volt/Amp/PH |
Seal Type | Pump Housing | Solid Handling | Impeller Type | Power Cord |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ME50 | 1/2 HP, 3450 RPM, 60Hz | 53 ft | 90 GPM | 1.5” | 60°C Max | P1 120/115V, 230V, Oil-Filled, Permanent Split Capacitor - P3 208/230/460/575V | Carbon/Ceramic | Cast Iron | 3/4” | Engineered Thermoplastic | 10 ft |
| ME75 | 3/4 HP, 3450 RPM, 60Hz | 63 ft | 100 GPM | 1.5” | 60°C Max | P1 230V, Oil-Filled, Permanent Split Capacitor Type - P3 208/230/460/575V | Carbon/Ceramic | Cast Iron | 3/4” | Engineered Thermoplastic | 10 ft |
| ME100 | 1 HP 3450 RPM, 60Hz | 84 ft | 113 GPM | 1.5” | 60°C Max | P1 230V Oil-Filled, Permanent Split Capacitor Type - P3 208/230/460/575V | Carbon/Ceramic | Cast Iron | 3/4” | Enginereed Thermoplastic | 10 ft |
| ME150 | 1- 1/2 HP, 3450 RPM, 60Hz | 95 ft | 120 GPM | 1.5” | 60°C Max | P1 230V Oil-Filled, Permanent Split Capacitor Type - P3 208/230/460/575V | Carbon/Ceramic | Cast Iron | 3/4” | Enginereed Thermoplastic | 10 ft |
Myers ME Series Effluent Pumps
The Myers ME Series Effluent Pumps are engineered for efficient and reliable wastewater handling in both residential and commercial settings. Designed to manage effluent – wastewater containing organic material but not raw sewage – these pumps provide exceptional durability and performance for your wastewater transport needs.
Specifications
- Design: Cast iron or thermoplastic housing
- Flow Rate: Varies by model
- Head Pressure: Varies by model
- Motor: High-efficiency motor
- Solids Handling: Capable of managing small solids and debris
- Safety Compliance: Meets industry safety standards
- Weight: Lightweight for easy installation
- Warranty: Manufacturer's warranty against defects
Features
- Robust and durable construction for long-lasting performance
- Compact structure for easy installation and maintenance
- High-efficiency motor for optimized energy consumption
- Vortex impeller design to minimize clogging
- Models available to fit various flow rates and applications
- Designed for safe operation in diverse environments
Benefits & Applications
The Myers ME Series Effluent Pumps are built to solve common wastewater handling challenges, such as moving effluent efficiently from septic systems or handling gray water applications. Ideal for both residential and commercial use, they provide reliable performance and can manage small solids and debris often found in effluent. By utilizing these pumps, users can enhance operational efficiency and ensure effective wastewater transport, leading to cleaner and more sustainable environments.
Why Buy from BARR Plastics
At BARR Plastics, we offer durable and reliable components backed by expert support and quick shipping across Canada. You can trust our high-quality products to meet your wastewater management needs. Plus, Barr Plastics can ship across Canada and the US through our distributor channels or partnered facilities. Order now to secure your Myers ME Series Effluent Pump and experience hassle-free wastewater handling.
