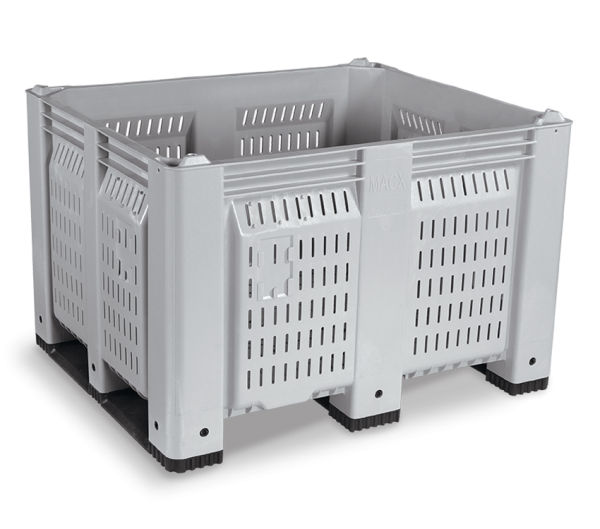

Mac-X Bin Vented Shortside Runners, GRAY | M40PGY3

The MACX M40PGY3 is a vented bulk material handling bin with short-side runners. It has a listed capacity of 190 USG / 720 L / 25.4 cu. ft. and a listed load capacity of 1500 lb. The product page identifies the material as FDA-approved polypropylene.

MACX containers are designed for demanding storage and transport use. The product family is stackable for storage flexibility and nestable when empty to reduce space during return transport. Replaceable runner configurations are available to match different material handling systems, and the MACX range supports both 2-way and 4-way lift-entry options depending on configuration.

The vented-wall configuration supports applications where airflow through the bin is useful during handling and storage. The MACX product pages also list corrosion and UV resistance, temperature resistance from -40°F to 140°F, reusable construction, and USDA/HACCP standards for food product handling.

This model has listed outside/inside dimensions of 40 / 36.75 in wide, 48 / 45 in long, and 31 / 25.75 in high, with a tare weight of 92 lb. The grey MACX configuration is designed for operations that need a reusable bulk bin that can move through storage, processing, and transport workflows.

Key Features and Benefits

• Vented bulk bin with short-side runners
• 190 USG / 720 L / 25.4 cu. ft. listed capacity
• 1500 lb listed load capacity
• FDA-approved polypropylene material listed on the product page
• Stackable with other MACX bins and nestable when empty
• Runner options support different material handling systems
• Corrosion- and UV-resistant construction
• Listed temperature resistance from -40°F to 140°F

Common Applications

• Agricultural harvesting and storage
• Food product handling
• Storage and transport of bulk materials
• Industrial material handling
• Processing and distribution workflows


MACX BIN VENTED LONGSIDE RUNNERS, GRAY

• 3 full-bin sizes/1 half-bin size
• Maintenance-free HDPE plastic
• Solid or vented walls
• Runner options to meet any material handling system (see chart)
• 4-way and 2-way lift entry options
• MACX bins stack interchangeably
• Nest when empty
• Corrosion- and UV-resistant
• Heat- and cold-resistant from -40°F to 140°F
• Meet USDA/HACCP standards for food product handling
• Reusable and 100% recyclable
• No minimum order for standard products/ options
• Solid bins available in seven colors (or custom colors with minimum order)
• Vented bins stocked in gray only
