Neptune Industrial Pipe Floats
Pipe & Hose Floats from Neptune Flotation are the perfect solution for dredging, mining, de-watering, pumping and other industrial projects.

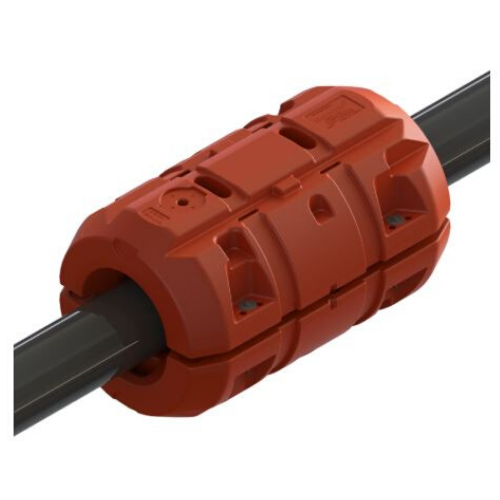

Neptune Flotation Pipe Floats (Dredge Floats) are designed to the highest standard of safety and usability. These pipe floats are molded as one piece from tough, impact resistant high density polyethylene and are foam filled. Their low profile float design provides stability and reduced resistance to waves, currents, ice, and winds.
These pipe floats are able to withstand sub-zero temperatures, and an added UV stabilizer provides excellent resistance to sunlight. Neptune Pipe Floats include features like Clamp Tite that prevent pipeline slips, EzGlide which allows wind and water to easily pass, and Snap-N-Lock the solution to many float transportation and storage woes.
Pipe & Hose Floats from Neptune Flotation are the perfect solution for dredging, mining, de-watering, pumping and other industrial projects. Neptune Flotation Pipe Floats (Dredge Floats) are designed to the...
Pipe & Hose Floats from Neptune Flotation are the perfect solution for dredging, mining, de-watering, pumping and other industrial projects.
Neptune Flotation Pipe Floats (Dredge Floats) are designed to the highest standard of safety and usability. These pipe floats are molded as one piece from tough, impact resistant high density polyethylene and are foam filled. Their low profile float design provides stability and reduced resistance to waves, currents, ice, and winds.
These pipe floats are able to withstand sub-zero temperatures, and an added UV stabilizer provides excellent resistance to sunlight. Neptune Pipe Floats include features like Clamp Tite that prevent pipeline slips, EzGlide which allows wind and water to easily pass, and Snap-N-Lock the solution to many float transportation and storage woes.
Part # | Pipe Size (in) | Outside Diameter (in) | Inside Diameter (in) | Length (in) | Weight (lbs) | Submersion Capacity (lbs) @ 50% Submersion |
---|---|---|---|---|---|---|
PF6-160-R | 6 | 24 | 6.5 | 30 | 49 |
83 |
PF8-200-R | 8 | 24 | 8.5 | 30 | 55 |
167 |
PF10-250-R | 10 | 24 | 10.6 | 30 | 68 |
212 |
PF12-300-R | 12 | 24 | 12.6 | 44 | 75 |
235 |
PF14-350-R | 14 | 24 | 14.4 | 44 | 98 |
269 |
PF16-400-R | 16 | 45 | 16.5 | 44 | 146 |
765 |
PF18-450-R | 18 | 45 | 18.5 | 44 | 160 |
839 |
PF20-500-R | 20 | 45 | 20.6 | 44 | 200 |
979 |
PF22-550-R | 22 | 45 | 22.6 | 45 | 208 |
1005 |
PF24-600-R | 24 | 46 | 24 | 45 | 222 |
1063 |
PF26-650-R | 26 | 46 | 26 | 49 | 250 |
1144 |
