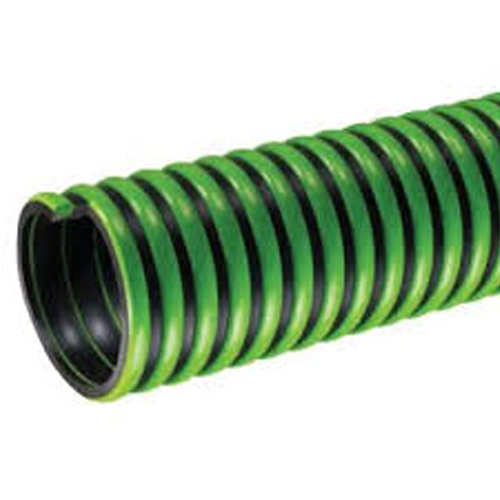

Green / Black EPDM Suction & Transfer Hose
- Commonly used in agricultural, construction, and mining applications for water (not for food grade transfer), light sludge, effluents or other liquids where chemical and "external" abrasion resistance is required.
- Popular septic tank cleaning hose because it is lightweight, flexible, and very easily handled (even at low temperatures) and is typically not designed for abrasive transfer.
- Its unique polyethylene helix reduces dragging friction and permits the hose to be maneuvered on the ground easily.
- Not designed for permanent installation in piping systems, especially in short lengths for pump connectors, generators, chillers, HVAC units, or other applications where hard pipe, expansion joints, or stainless steel braided hoses are typically used.
- Temperature Range: -35°C (-30°F) to +60°C (140°F).
- Construction: Tube: Smooth Black EPDM. Cover: Slightly corrugated green polyethylene helix with black EPDM between.
- Typical Fittings: Camlocks, N10 combination nipples, short shanks, strainers, pinch clamps, various bolt clamps.
FEATURES: Commonly used in agricultural, construction, and mining applications for water (not for food grade transfer), light sludge, effluents or other liquids where chemical and "external" abrasion resistance is required....
- Commonly used in agricultural, construction, and mining applications for water (not for food grade transfer), light sludge, effluents or other liquids where chemical and "external" abrasion resistance is required.
- Popular septic tank cleaning hose because it is lightweight, flexible, and very easily handled (even at low temperatures) and is typically not designed for abrasive transfer.
- Its unique polyethylene helix reduces dragging friction and permits the hose to be maneuvered on the ground easily.
- Not designed for permanent installation in piping systems, especially in short lengths for pump connectors, generators, chillers, HVAC units, or other applications where hard pipe, expansion joints, or stainless steel braided hoses are typically used.
- Temperature Range: -35°C (-30°F) to +60°C (140°F).
- Construction: Tube: Smooth Black EPDM. Cover: Slightly corrugated green polyethylene helix with black EPDM between.
- Typical Fittings: Camlocks, N10 combination nipples, short shanks, strainers, pinch clamps, various bolt clamps.
Couldn't load pickup availability
| Part # | Size (in.) | Box/Case Qty. | Description |
|---|---|---|---|
| NL2205-100 | INSIDE 1 - OUTSIDE 1.34 | 100 ft | 1" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-3134 |
| NL2205-125 | INSIDE 1-1/4 - OUTSIDE 1.61 | 100 ft | 1-1/4" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-4043 |
| NL2205-150 | INSIDE 1-1/2 - OUTSIDE 1.93 | 100 ft | 1-1/2" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-4751 |
| NL2205-200 | INSIDE 2 - OUTSIDE 2.50 | 100 ft | 2" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-5963 |
| NL2205-250 | INSIDE 2-1/2 - OUTSIDE 3 | 100 ft | N / A |
| NL2205-300 | INSIDE 3 - OUTSIDE 3.65 | 100 ft | 3" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-8591 |
| NL2205-400 | INSIDE 4 - OUTSIDE 4.67 | 100 ft | 4" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-112121 |
| NL2205-600 | INSIDE 6 - OUTSIDE 6.89 | 100 ft | 6" GRN/BLK PE/EPDM SUCTION/DISCHARGE HOSE - CLAMP N77-174187 |
Green / Black EPDM Suction & Transfer Hose NL2200
The Green / Black EPDM Suction & Transfer Hose NL2200 from Barr Plastics is a durable, flexible hose engineered for reliable suction and transfer of water, chemicals, and air. Made of rugged EPDM rubber, this hose offers outstanding resistance to weather, ozone, and abrasion—making it ideal for demanding industrial, agricultural, and construction applications.
Specifications
- Material: EPDM (Ethylene Propylene Diene Monomer) rubber
- Color: Green outer cover, black inner lining
- Temperature Range: -40°C to +120°C (-40°F to 248°F)
- Pressure Rating: Vacuum up to -0.85 bar; working pressure typically 10-20 bar depending on size
- Sizes Available: Multiple inner diameters from 20mm to 152mm (custom sizes available)
- Length: Standard coils, typically 50 meters or custom cut lengths
- Reinforcement: Textile or synthetic fiber layers for strength and flexibility
- Inner Lining: Smooth black EPDM for low friction and chemical resistance
- Outer Cover: Green EPDM designed for abrasion and weather resistance
Features
- Excellent resistance to ozone, UV, aging, and weathering
- Suitable for suction and discharge of water, many chemicals, air, and gases
- Flexible and easy to handle even in extreme temperatures
- Durable construction with multi-layer reinforcement
- Resistant to mild acids, bases, and alcohols (not for petroleum-based fluids)
- Low-friction interior lining optimizes flow efficiency
- Corrosion-free and ideal for outdoor use
Benefits & Applications
The NL2200 EPDM suction and transfer hose from Barr Plastics solves common industry challenges by delivering a long-lasting, weather-resistant solution capable of handling various fluids safely and efficiently. Its high chemical resistance and temperature tolerance make it perfect for industrial processes, agricultural irrigation, wastewater management, and construction site fluid transfer.
For example, its robust design maintains integrity under suction conditions up to -0.85 bar vacuum and withstands pressure commonly found in transfer pumps. Its flexibility at low temperatures allows year-round use in cold climates, reducing downtime and maintenance costs.
This hose is ideally used for transporting water, mild chemicals, air, and gases where petroleum fluids are not involved. Its abrasion-resistant green cover prolongs service life even in harsh outdoor environments.
Why Buy from Barr Plastics
At Barr Plastics, we specialize in supplying durable, high-performance hoses backed by expert technical support and quick shipping across Canada and the United States. Our Green / Black EPDM Suction & Transfer Hose NL2200 is stocked and ready to ship through our wide distributor network and partner facilities, ensuring you get the right product when you need it.
Order now or contact us to request a quote and experience the reliability and quality of Barr Plastics products firsthand.
