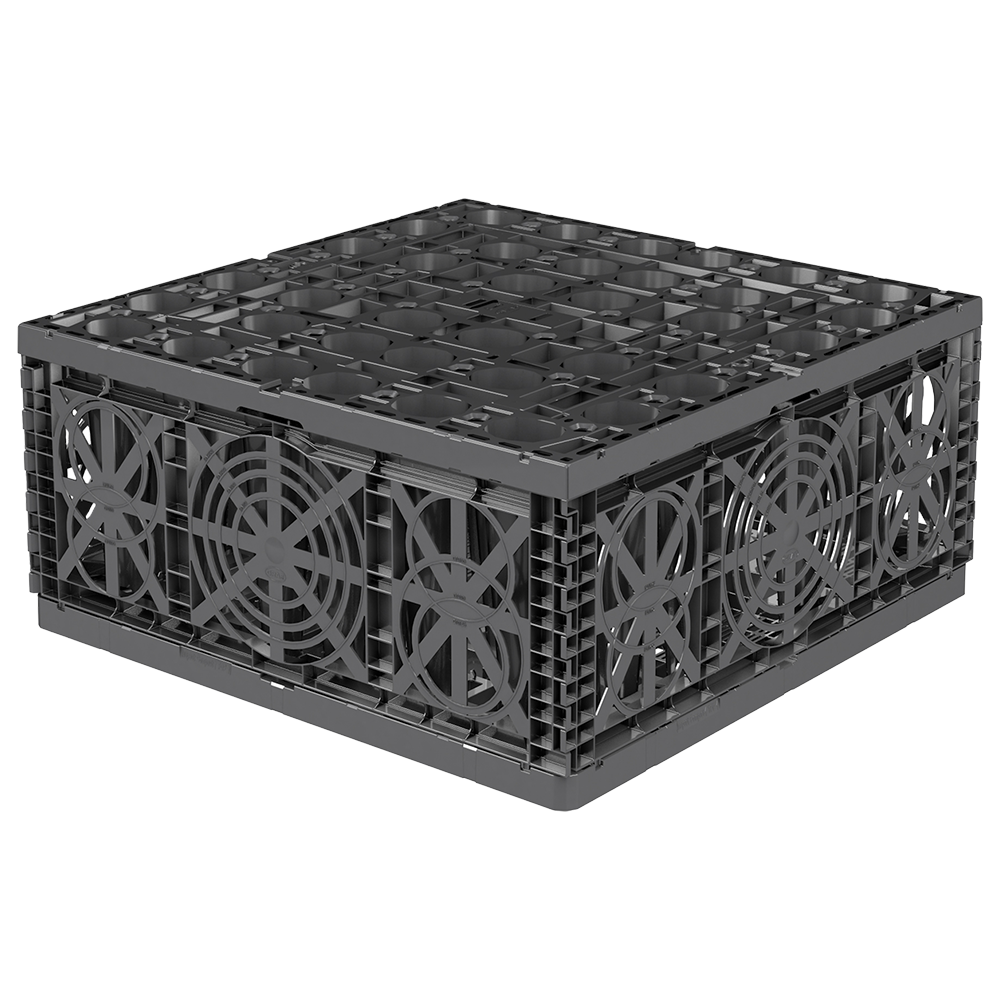

GRAF EcoBloc Inspect Smart Ultra
The high-performance module for storage volumes with very deep earth coverings or installation depths.
The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping.
These blocks are also designed to be labor-saving through simple and effortless installation; the straightforward "click"-together system enables faster assembly than ever before with less effort.
Module Overview:
- High load areas over HS-25 loading or installation with deep earth covering.
- 95% storage coefficients.
- Can be inspected.
- Can be cleaned at high pressure.
- Maximum installation depth of up to 7.5m/24.6ft
The high-performance module for storage volumes with very deep earth coverings or installation depths. The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping....
The high-performance module for storage volumes with very deep earth coverings or installation depths.
The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping.
These blocks are also designed to be labor-saving through simple and effortless installation; the straightforward "click"-together system enables faster assembly than ever before with less effort.
Module Overview:
- High load areas over HS-25 loading or installation with deep earth covering.
- 95% storage coefficients.
- Can be inspected.
- Can be cleaned at high pressure.
- Maximum installation depth of up to 7.5m/24.6ft
Couldn't load pickup availability
Height: " | Width: " | Length: "
| Part # / Model | Size | Description | Weight (lbs) |
|---|---|---|---|
| 402560 | 31" x 31" x 13" | GRAF EcoBloc Inspect Smart Ultra (1 Module) (56 USG / 211L) | 26 |
| 402560 | 31" x 31" x 1.6" | GRAF EcoBloc Inspect Smart Baseplate | 9 |
| 402503 | N/A | GRAF EcoBloc Inspect Smart End Plates (Set of 2) | N/A |
| 402015 | N/A | GRAF EcoBloc Connectors (Set of 10) | N/A |
| 402018 | N/A | GRAF EcoBloc Connectors (Set of 25) | N/A |
| 402020 | N/A | GRAF EcoBloc Connectors (Set of 50) | N/A |
| 402025 | N/A | GRAF EcoBloc Connectors (Set of 200) | N/A |
| EPA04 | 4" ⌀ | 4 in. Adapter Plate | N/A |
| EPA06 | 6" ⌀ | 6 in. Adapter Plate | N/A |
| EPA08 | 8" ⌀ | 8 in. Adapter Plate | N/A |
| EPA10 | 10" ⌀ | 10 in. Adapter Plate | N/A |
| EPA12 | 12" ⌀ | 12 in. Adapter Plate | N/A |
| EPA16 | 16" ⌀ | 16 in. Adapter Plate | N/A |
| EPA20 | 20" ⌀ | 20 in. Adapter Plate | N/A |
