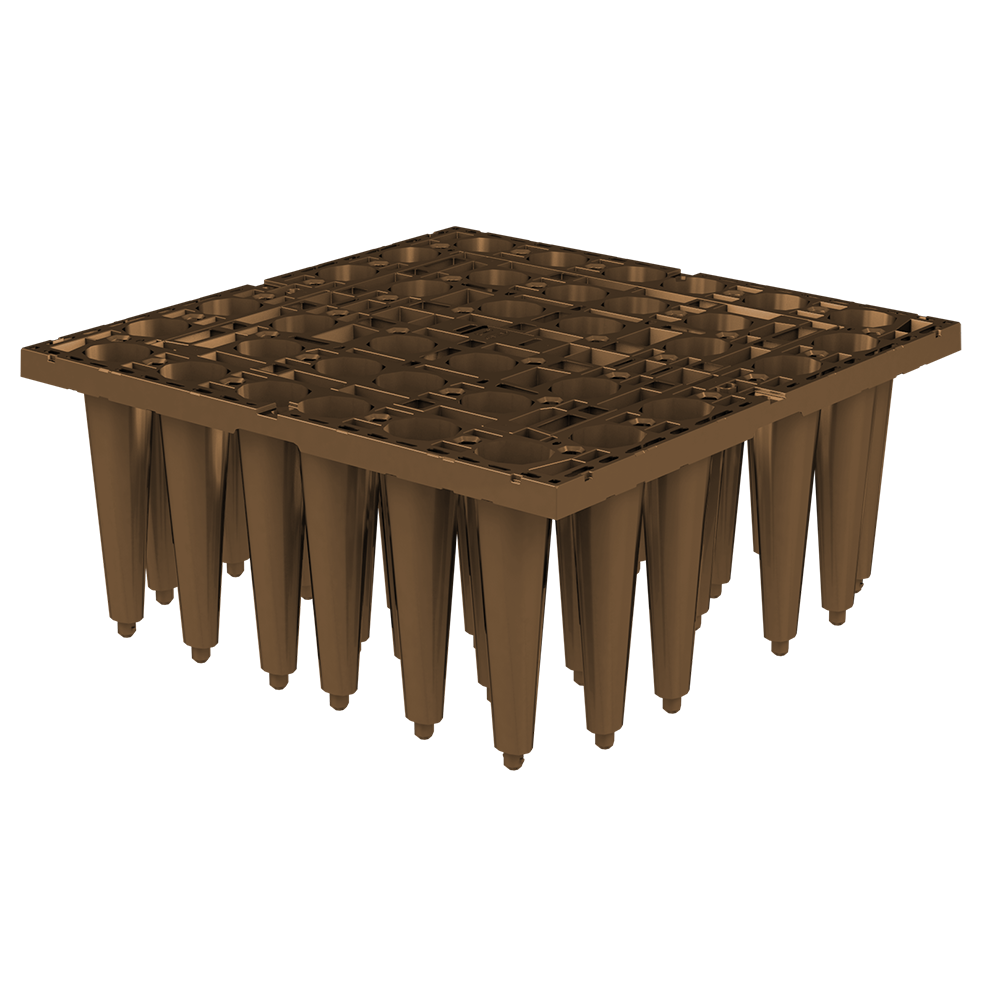

GRAF EcoBloc Inspect Smart Plus
The reinforced module for implementing large storage volumes with shallow earth coverings or deep installation depths.
The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping.
These blocks are also designed to be labor-saving through simple and effortless installation; the straightforward "click"-together system enables faster assembly than ever before with less effort.
Module Overview:
- Suitable for HGV loading up to HS-25 as per AASHTO standards.
- 95% storage coefficients.
- Can be inspected.
- Can be cleaned at high pressure.
- Maximum installation depth of up to 6.0m/19.6ft
The reinforced module for implementing large storage volumes with shallow earth coverings or deep installation depths. The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage...
The reinforced module for implementing large storage volumes with shallow earth coverings or deep installation depths.
The patented design offers space-saving advantages throughout the logistics chain, saving considerably on storage and shipping.
These blocks are also designed to be labor-saving through simple and effortless installation; the straightforward "click"-together system enables faster assembly than ever before with less effort.
Module Overview:
- Suitable for HGV loading up to HS-25 as per AASHTO standards.
- 95% storage coefficients.
- Can be inspected.
- Can be cleaned at high pressure.
- Maximum installation depth of up to 6.0m/19.6ft
Couldn't load pickup availability
| Part # / Model | Size | Description | Weight (lbs) |
|---|---|---|---|
| 402530 | 31" x 31" x 13" | GRAF EcoBloc Inspect Smart Plus (1 Module) (56 USG / 211L) | 25 |
| 402560 | 31" x 31" x 1.6" | GRAF EcoBloc Inspect Smart Baseplate | 9 |
| 402503 | N/A | GRAF EcoBloc Inspect Smart End Plates (Set of 2) | N/A |
| 402015 | N/A | GRAF EcoBloc Connectors (Set of 10) | N/A |
| 402018 | N/A | GRAF EcoBloc Connectors (Set of 25) | N/A |
| 402020 | N/A | GRAF EcoBloc Connectors (Set of 50) | N/A |
| 402025 | N/A | GRAF EcoBloc Connectors (Set of 200) | N/A |
| EPA04 | 4" ⌀ | 4 in. Adapter Plate | N/A |
| EPA06 | 6" ⌀ | 6 in. Adapter Plate | N/A |
| EPA08 | 8" ⌀ | 8 in. Adapter Plate | N/A |
| EPA10 | 10" ⌀ | 10 in. Adapter Plate | N/A |
| EPA12 | 12" ⌀ | 12 in. Adapter Plate | N/A |
| EPA16 | 16" ⌀ | 16 in. Adapter Plate | N/A |
| EPA20 | 20" ⌀ | 20 in. Adapter Plate | N/A |
