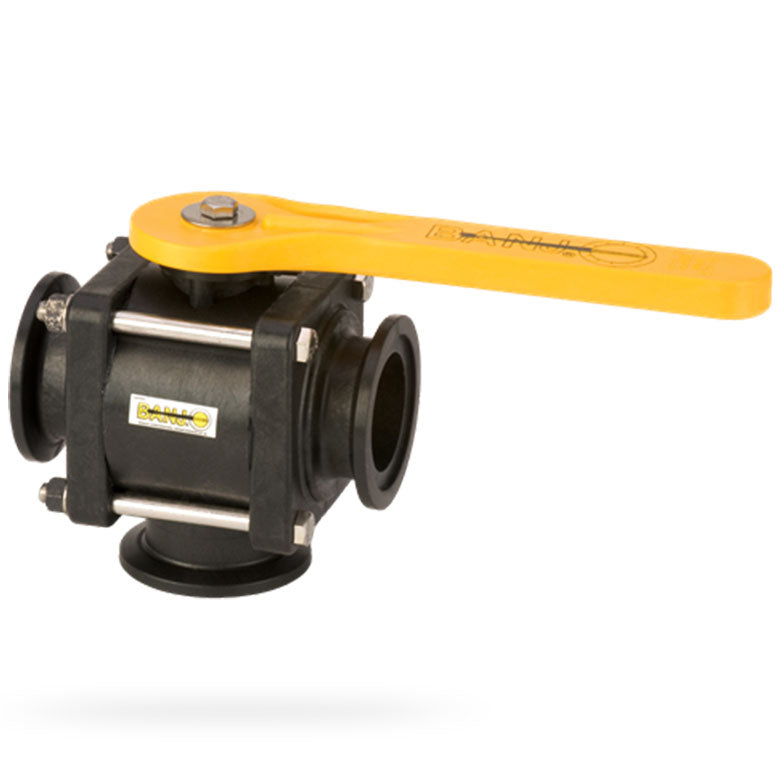

2" Full Port 3-Way Bottom Load Ball Valve Flange | MV220BL
Pre Order
SKU: MV220BL
Couldn't load pickup availability
This product is currently out of stock but available for pre-order. Click "Request a Quote" below, and one of our sales representatives will assist you with your inquiry. We may have an alternative part number that is readily available.

| Part # | Size (in) | Description |
|---|---|---|
| MV220BL | 2" | Full Port, Bottom Load (4 bolt) |
2" Full Port 3-Way Bottom Load Manifold Ball Valve Flange | MV220BL
The MV220BL from Barr Plastics is a premium 2-inch full port 3-way ball valve designed specifically for bottom load manifold applications. Built for efficient and leak-free fluid control, it features a flange connection for easy installation and maintenance. Its full port design ensures maximum flow capacity with minimal pressure drop, making it ideal for industrial, chemical, and water system operations.
Features & Specifications
- Full Port Design: Internal bore equal to 2-inch pipeline size ensures unrestricted flow and reduces pressure loss.
- 3-Way Valve Configuration: Directs flow from one inlet to two outlets or mixes two inlets into one outlet, offering versatile flow control options.
- Bottom Load Configuration: Optimized for safe and efficient loading/unloading in tanks, railcars, and trucks.
- Flanged Connection: Compatible with ANSI standard flanges for secure, robust, and simple installation.
- Durable Material Construction: Made from corrosion-resistant plastics suitable for harsh chemical and aqueous environments.
- Manual Lever Handle: Provides precise and quick quarter-turn operation between flow paths.
- Pressure Rating: Engineered for industrial pressure applications up to approximately 150 PSI (verify exact rating).
- Temperature Range: Suitable for typical industrial temperatures depending on material (PVC up to 140°F, CPVC up to 180°F).
Benefits & Applications
The MV220BL ball valve improves flow control efficiency by combining a full port and 3-way design that eliminates pressure drops and turbulence. Its bottom load feature enhances safety by reducing vapor emissions during loading or unloading operations. This valve’s corrosion-resistant materials extend service life in chemical processing, wastewater management, and industrial water distribution systems.
Commonly used in:
- Bottom loading of tank trucks, railcars, and tankers
- Chemical processing pipelines requiring fluid diversion or mixing
- Industrial manifolds and fluid handling systems needing leak-proof shutoff
- Water treatment and commercial fluid systems
Why Buy from Barr Plastics?
At Barr Plastics, we specialize in durable, high-performance valves and fittings backed by expert technical support and fast service. Our products meet rigorous industry standards and are trusted by professionals across Canada and the US. Barr Plastics can ship the MV220BL ball valve nationwide via our extensive distributor and partner network, ensuring you get the right solution promptly.
Order now or contact us to request a quote and secure your 2" Full Port 3-Way Bottom Load Ball Valve Flange MV220BL for your next project.
Dimensions
Height: 6"
Length: 20"
Width: 13"
Weight: 2.1 kg
