Endura

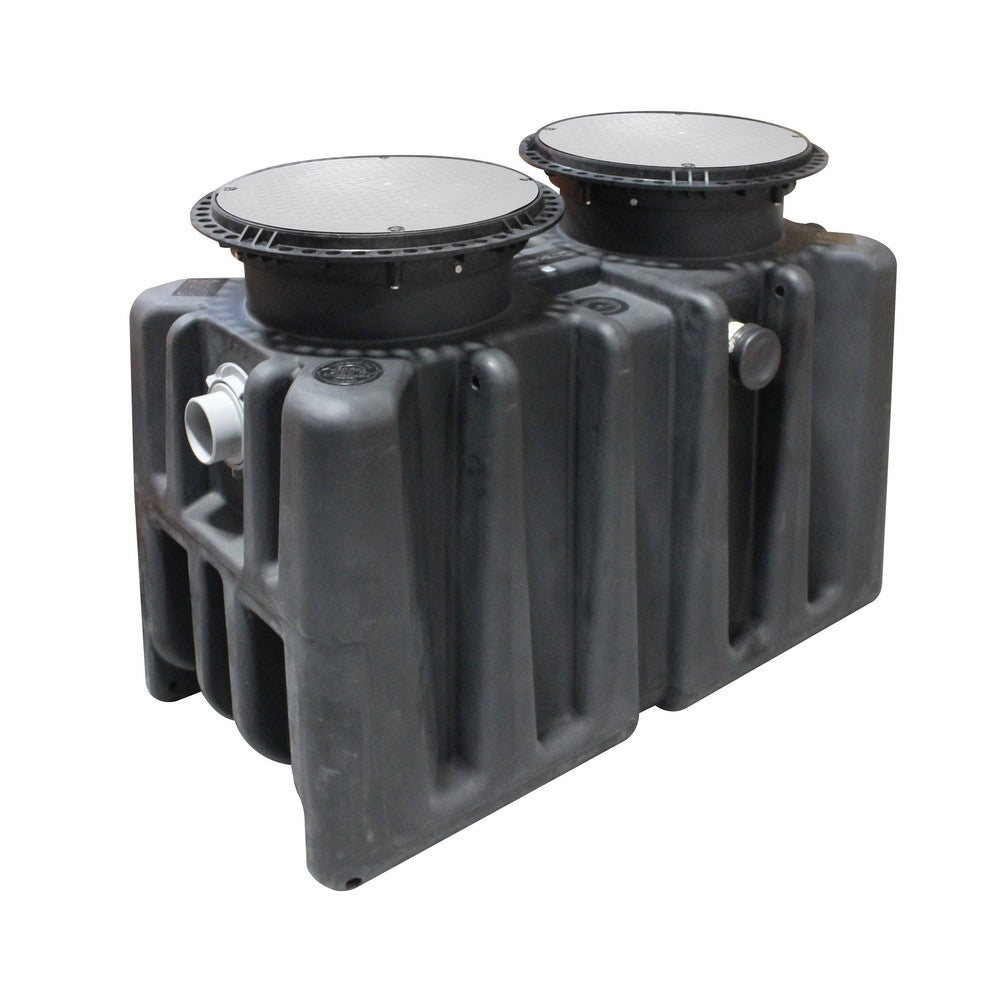

4" 75 Gallon 75GPM Grease Interceptor ENDURA 75XL | 4075A04
Out of stock
SKU: 4075A04
Couldn't load pickup availability
| Flow Rate | Capacity (lbs) |
Part Number | Connection Size (in) | Product Page | |
|---|---|---|---|---|---|
| Gallons / Min (GPM) |
Litres / Min (LPM) |
||||
| 75 | 284 | 150 | 4075A04 | 4 |
Endura XL75 |
Features
- 75 GPM rated. Maximum grease capacity 559lbs. PDI G-101, ASME A112.14.3, CSAB481.1 Approved
- Rotationally molded PE tanks provide smooth internal surfaces for easy wash-down maintenance. Temperature rated to 160° F
- Patented dynamic inlet baffle uniquely provides access to integrated flow control
- Supplied with CSA B481.0 Approved Class 'M' access covers for light traffic application (2,000 lb max. service load). Tested at elevated and sub-zero temperatures for outdoor application
- Tank design resists flotation, additional tie down locations available
- External flow control available (4044275(AS)) for PDI compliant installation where required (Externally located, vented)
- 4" No-Hub connections on inlet and (3) outlets. Connect with approved mechanical joint (MJ) couplings - not included
- Custom designed fastener system and dual access covers for maximum visibility and maintenance access. Air and water-tight operation
- Compatible with XL Riser Extensions - 40100AX18/AX35 for maximum depth of 72"
- Factory installed three-way outlet system allows 90° change of direction to be made through the grease interceptor
ENDURA 75 Gallon XL Grease Interceptor (4075A04)
The ENDURA 75 Gallon XL Grease Interceptor, model 4075A04, is designed specifically for commercial kitchens to effectively manage and reduce grease entering your wastewater system. Built by BARR Plastics, this interceptor offers incredible durability, efficiency, and compliance, ensuring your kitchen runs smoothly and adheres to local regulations.
Specifications
- Model: ENDURA 75XL (4075A04)
- Type: Grease Interceptor
- Capacity: 75 gallons
- Flow Rate: 75 gallons per minute (GPM)
Features
- Durable Material: Resistant to corrosion and designed for longevity even in greasy environments.
- Compact Size: Optimized for installation in areas with limited space while maintaining substantial grease storage.
- High Efficiency: Supports high flow rates, making it ideal for medium-sized commercial kitchens and food processing facilities.
- Advanced Separation Technology: Baffle system allows grease to rise and settle waste at the bottom, reducing grease discharge into the sewage system.
- Easy Maintenance: Designed for quick servicing to remove accumulated grease for optimal operation.
- Simple Installation: Typically installed underground or in a nearby pit to the kitchen waste source for efficient operation.
Benefits & Applications
The ENDURA 75 Gallon XL Grease Interceptor helps your facility stay compliant with local regulations on grease disposal. By capturing excessive grease, it prevents clogs in plumbing systems, minimizing costly repairs and downtime. Your establishment shows environmental responsibility by effectively managing waste, preventing untreated grease from entering sewage systems. This unit is highly suitable for:
- Restaurants: Especially in high-volume food preparation areas.
- Cafeterias: Where significant food service operations produce large volumes of grease.
- Food Processing: Industries engaging in food manufacturing can greatly benefit from efficient grease management.
Why Buy from BARR Plastics
At BARR Plastics, we pride ourselves on offering durable, high-quality components backed by expert support and fast shipping across Canada and the US. Our commitment to your satisfaction ensures you receive the best solutions for your commercial kitchen needs.
Order now and enhance your kitchen's efficiency with the ENDURA 75 Gallon XL Grease Interceptor!
Dimensions
Height: 43.0"
Length: 32.0"
Width: 59.0"
Weight: 233.0 lb
