4" 100 Gallon GMP XL Grease Interceptor Endura XL100 (PEDESTRIAN RATED) | 40100A04M
Out of stock
SKU: 40100A04M
Couldn't load pickup availability
| Flow Rate | Capacity (lbs) |
Part Number | Connection Size (in) | Product Page | |
|---|---|---|---|---|---|
| Gallons / Min (GPM) |
Litres / Min (LPM) |
||||
| 100 | 378 | 1059 | 40100A04M | 4 | Endura XL100 |
Features
- 100 GPM rated. Maximum grease capacity 1058lbs. PDI G-101, ASME A112.14.3, CSAB481.1 Approved
- Rotationally molded PE tanks provide smooth internal surfaces for easy wash-down maintenance. Temperature rated to 160° F
- Patented dynamic inlet baffle uniquely provides access to integrated flow control
- Supplied with CSA B481.0 Approved Class 'M' access covers for light traffic application (2,000 lb max. service load). Tested at elevated and sub-zero temperatures for outdoor application
- Tank design resists flotation, additional tie down locations available
- External flow control available (40442100(A) for PDI compliant installation where required (Externally located, vented)
- 4" No-Hub connections on inlet and (3) outlets. Connect with approved mechanical joint (MJ) couplings - not included
- Custom designed fastener system and dual access covers for maximum visibility and maintenance access. Air and water-tight operation
- Compatible with XL Riser Extensions - 40100AX18/AX35 for maximum depth of 72"
- Factory installed three-way outlet system allows 90° change of direction to be made through the grease interceptor

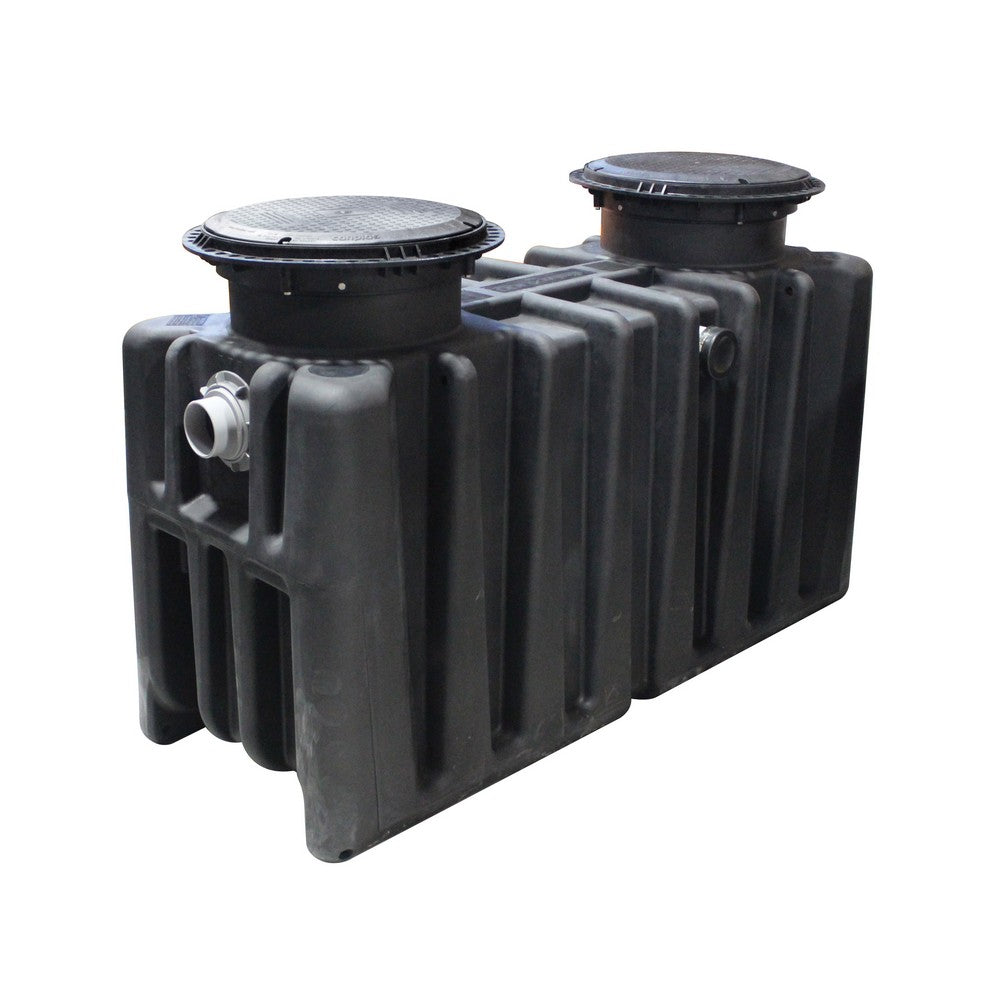

Endura 100 Gallon XL Grease Interceptor - Model 40100A04M
The Endura XL100, a 4" 100 Gallon Grease Interceptor from BARR Plastics, is designed to efficiently manage grease, fats, and oils in commercial kitchens. This high-performance unit is essential for food service environments where optimal grease management is crucial. Its pedestrian-rated design allows it to withstand foot traffic while effectively separating grease from wastewater.
Specifications
- Model: 40100A04M
- Capacity: 100 Gallons
- Material: High-Density Polyethylene (HDPE)
- Design: Pedestrian Rated
- Installation Type: Below-grade
Features
- Advanced Design: Efficient baffle and flow control design for superior grease removal.
- Durable Construction: Resists corrosion, UV rays, and impacts for long-lasting use.
- Maintenance Accessibility: Easy access for cleaning, promoting compliance with health regulations.
- Compliance Ready: Meets local municipal and environmental regulations.
Benefits & Applications
The Endura XL100 grease interceptor is perfect for medium to large kitchens, such as those in restaurants and cafeterias, where grease accumulation from dishwashers, sinks, and food prep areas is common. Its reliable performance reduces grease disposal costs by minimizing the frequency of pump-outs and prevents costly rancid odors. By keeping grease from entering the sewer system, it also protects the environment from potential damage caused by clogs. Plus, its easy-to-clean design saves time and labor, enhancing operational efficiency.
Why Buy from BARR Plastics
At BARR Plastics, we provide durable, reliable grease interceptors backed by expert support and quick shipping across Canada. Our commitment to quality and compliance ensures that you receive a product that meets your business needs. Whether you're operating a busy kitchen or a commercial establishment, trust BARR Plastics to deliver solutions that enhance your workflow. We can ship across Canada and the US through our distributor channels or partnered facilities.
Contact us today to request a quote or learn more about the Endura XL100 Grease Interceptor!
Dimensions
Height: 49.0"
Length: 78.0"
Width: 32.0"
Weight: 283.0 lb
