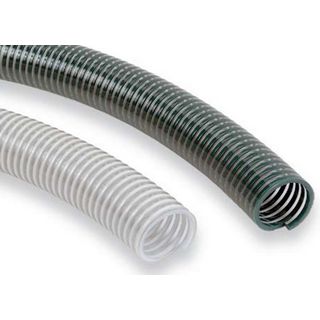

Clear PVC Suction & Transfer Hose W/ Spiral

• NL2115 is a standard general purpose PVC suction and discharge hose that is commonly seen on pumps across many industries (not for food grade transfer).
• Non-marking, lightweight, mild abrasion and chemical resistant
  hose that's easy to handle and is typically used in lighter duty applications.
• The clear aspect of NL2115 permits excellent visibility, and its smooth
  exterior and interior allow for maximum flow of products.
• Not recommended for transferring fuels and is also not FDA approved for potable
  water (Contact BARR for recommendations on FDA approved hose for Food & Beverage handling).
• Available in sizes:  3/4"  to  6" inside diameter
• Temperature Range: -24°C (-10°F) to +54°C (130°F).
  Construction: Tube: Smooth PVC. Cover: Smooth PVC. Reinforcement: Rigid, white PVC helix.
  Typical Fittings: Camlocks, N10 combination nipples, short shanks, strainers, pinch clamps, various bolt clamps.

Clear PVC Suction & Transfer Hose with Spiral - Model NL2115

The Clear PVC Suction & Transfer Hose with Spiral (model NL2115) from Barr Plastics is designed for reliable suction and fluid transfer in industrial, agricultural, and commercial applications. This flexible hose combines clear PVC tubing with a rigid embedded spiral helix, providing excellent visibility of fluid flow along with structural reinforcement to prevent hose collapse during suction. Ideal for handling water, mild chemicals, and air, it delivers dependable performance where moderate suction and pressure resistance are needed.

Specifications

• Material: Clear PVC (Polyvinyl Chloride) with embedded rigid PVC spiral helix
• Temperature Range: -10°C to +60°C (14°F to 140°F)
• Working Pressure: Typically up to 50 psi (verify with manufacturer by size)
• Vacuum Rating: Moderate suction capability supported by spiral reinforcement
• Diameter Sizes: Multiple inner diameter options available (refer to retailer)
• Length: Available by the foot or as standard rolls
• Construction: Single-ply clear tube with embedded spiral helix for strength and flexibility

Features

• Transparent PVC tubing allows easy visual monitoring of fluid flow and blockage detection
• Rigid spiral helix embedded for kink resistance and shape retention during suction
• Lightweight and flexible for easy installation and maneuvering
• Corrosion-resistant to many acids, alkalis, and chemicals (check compatibility)
• Smooth inner surface aids in cleaning and reduces buildup
• Cost-effective alternative to rubber or metal hoses for light to medium duty

Benefits & Applications

The Clear PVC Suction & Transfer Hose with Spiral improves operational efficiency by enabling clear visual confirmation of fluid movement, reducing downtime caused by clogs or contamination. Its flexibility and kink resistance make installation simple in tight spaces or in mobile setups. The hose is well-suited for transferring water, mild chemicals, air, and some food-grade fluids (confirm compliance). Common applications include irrigation and agricultural water lines, pump suction and discharge, light industrial vacuum, dust collection, and food and beverage fluid transfer.

Industries such as agriculture, manufacturing, food processing, and commercial cleaning will find this hose a reliable choice for moderate suction and low-pressure fluid transfer tasks.

Why Buy from Barr Plastics

At Barr Plastics, we supply durable, high-quality hose solutions backed by expert technical support and fast delivery. Our Clear PVC Suction & Transfer Hose with Spiral meets strict quality standards and offers great value for a broad range of industries. Barr Plastics can ship across Canada and the US through our extensive distributor channels and partnered facilities, ensuring you get the right product quickly and reliably.

Order now or contact us to request a quote or discuss your specific application needs.
