Municipal Brine Makers
BARR Plastics' brine maker systems are the ideal solution for efficient, cost-effective de-icing. Engineered for reliability and simplicity, our systems allow you to produce high-quality salt brine for road safety and winter maintenance. With a capacity of up to 6,000 gallons per hour, our brine makers are built to handle large-scale operations, offering seamless integration with existing brine storage tanks. The systems are designed for durability, featuring corrosion-resistant materials and an easy-to-use interface.
Take full control of your city's liquid de-icing program and save significantly on the cost of purchased and delivered brine. With the BARR SBS750 Brine Maker, you can produce your own salt brine solution for as little as four cents per liter (15 cents per US gallon). No other brine maker in this price range can compare in value, simplicity, and output—we guarantee it.
** Based on all associated costs in a study done by BARR in conjunction with multiple customers who own and operate an SBS750 Brine Maker.
BARR Plastics' brine maker systems are the ideal solution for efficient, cost-effective de-icing. Engineered for reliability and simplicity, our systems allow you to produce high-quality salt brine for road safety...
BARR Plastics' brine maker systems are the ideal solution for efficient, cost-effective de-icing. Engineered for reliability and simplicity, our systems allow you to produce high-quality salt brine for road safety and winter maintenance. With a capacity of up to 6,000 gallons per hour, our brine makers are built to handle large-scale operations, offering seamless integration with existing brine storage tanks. The systems are designed for durability, featuring corrosion-resistant materials and an easy-to-use interface.
Take full control of your city's liquid de-icing program and save significantly on the cost of purchased and delivered brine. With the BARR SBS750 Brine Maker, you can produce your own salt brine solution for as little as four cents per liter (15 cents per US gallon). No other brine maker in this price range can compare in value, simplicity, and output—we guarantee it.
** Based on all associated costs in a study done by BARR in conjunction with multiple customers who own and operate an SBS750 Brine Maker.
Couldn't load pickup availability
Municipal Brine Makers: Efficient Salt Brine Production for De-Icing
| Description | Part # |
|---|---|
| Municipal Brine Makers | SBS750 |

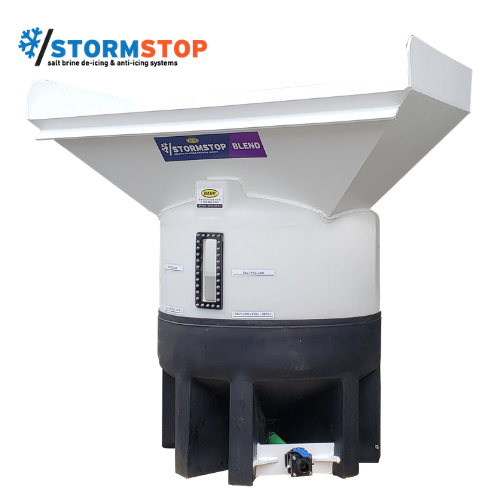

The SBS750 is a comprehensive brine production and handling system that can easily be connected to brine storage tanks or used as a standalone unit. It comes pre-assembled, so with just a few hose connections and power for the pump, you can start operations immediately. This system boasts the highest capacity production available, rated at a minimum of 6,000 gallons per hour of 23% salt brine solution. Its ultra-simple operation makes it ideal for a wide range of operators with basic instruction.
The integrated float shut-off valve automatically stops the flow of water when both the brine maker and batch tank are full. An integrated recirculation system ensures consistent brine concentration, even if levels fluctuate. The hoppers are constructed from durable, corrosion-resistant materials like UV-protected HDPE plastic and 316 stainless steel. The system comes standard with a 2", 2 HP on-board stainless steel high-flow brine pump, specifically designed to handle the weight of brine and the dirt content typically found in road salt. A pump inlet strainer is also included to prevent larger debris from entering the pump and storage tanks.
You can easily monitor salt levels through the brine maker's transparent design. To produce the brine, simply add salt and turn on the water—no agitation, power, or continuous monitoring is required. When testing is needed, both the brine maker and batch tanks are equipped with sampling taps, allowing for easy brine concentration sampling at any stage of the process.

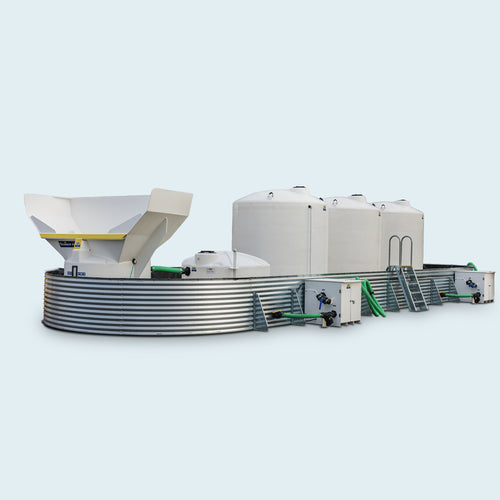

The included 1,550-gallon batch tank serves as a quality control vessel and additional standing storage. The SBS750 Brine Maker can be used as a plug-and-play, stand-alone system to supply one to three brine sprayer units or connected to brine storage tanks for larger operations with multiple high-volume trucks.
BENEFITS:
- Owning a BARR brine maker allows you to take full control of your snow and ice control program and greatly reduce costs and availability of road de-icer solutions.
-
High capacity production means lower operator costs, lower cost per gallon produced and greater capacity to keep up to peak demand.
-
Simplicity of design and operation allows for no special training and a variety of operators.
BARR is a leader in producing the most efficient designs and packages for complete Salt Brine Solution Production, Handling and Spray Applicating Systems - for more information, please contact us!
FEATURES
- 750 USG high capacity production brine maker + 1,550 USG batch tank to serve as a quality control vessel for batch production and additional standing storage.
- The SBS750 is a complete plug-and-play brine production and handling system that can easily be connected to storage tanks or used by itself. Comes pre-assembled, so with just a few of hose connections (and power for the pump), you can be in operation.
- Highest capacity production available – rated at a minimum of 6,000 gallons per hour of 23% salt brine solution.
- Ultra–simple operation, suitable for a wide variety of operators with some basic instruction.
- Manufactured with all durable, highly corrosion-resistant, long-life materials, ie: HDPE plastic and 316 stainless steel.
- Just add salt and turn on the water – no agitation, power or continuous monitoring or complex electronic controls are required during the brine making process.
- Contains an integrated recirculation system if brine concentration were ever to drop off for any reason.
- Comes standard with a 2”, 2 HP on-board stainless steel high flow (90 – 110 GPM Actual Flow) brine pump specifically designed to handle the weight of brine and the significant dirt content often found in typical road salt. Pump inlet strainer included to keep larger debris out of pump and spray applicator systems.
- Brine maker has an integrated float shut-off valve to stop the flow of water when both the brine maker and batch tank are completely full.
- Both the brine maker & the batch tanks are fitted with sampling taps for easy testing of brine concentration at any stage of the process.
- Salt level is visible through the brine maker to monitor operating levels.
