BARR Plastics
40 Gallon Box Shaped Tank | T33HW
Capacity:
40 USG
33 IG
151 L
Pre Order
SKU: T33HW
Couldn't load pickup availability
This product is currently out of stock but available for pre-order. Click "Request a Quote" below, and one of our sales representatives will assist you with your inquiry. We may have an alternative part number that is readily available.
| Capacity | Part # / Drawing | Dia./ Width (in) |
Length (in) |
Height (in) |
Lid/Fill Opening (in) |
Fitting (in) |
Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR |
Heavy Weight
|
||||||
| 40 | 33 | 150 | T33HW | 16 | 49 | 11-1/2 | N/A | N/A | N/A |
Available customization options:
Spin welded fittings
Installed by BARR Plastics. Available in raised FNPT or flush FNPT styles. Add fitting size, thread type, and location to your tank approval drawing.
Bulkhead fittings
Installed by BARR Plastics or by the customer when a minimum 4" diameter access lid is installed. Available from 1/2" to 4" FNPT. Include hole saw size and install instructions in the fitting table.
Access lids
Clear, sealed deck plate access lids are available in 4", 6", and 8" diameters.
Vents
Mushroom-style vents are available in multiple sizes.
Adapters and hose fittings
A variety of additional adapters and fittings are available to connect hoses to your tank.
Flexible Tank Positioning
Box-Shaped and T-Tanks can be installed in different positions but may require a supporting framework to maintain their shape.
Important ordering note:
Custom fittings require approval before production. Download the box shaped tank approval drawing, mark fitting locations, and attach it to your order or quote request.
33 IG TANK 49"L x16"W x11.5"H.
This tank is sold without pre-installed fittings, giving you the freedom to customize it to your needs. Whether you need it for water, waste, or another application, you can position it any way you like and add the right fittings where they make the most sense for your setup.
🔹 Customizable to fit your project
🔹 No fixed ports—install fittings exactly where needed
🔹 Space-saving box-shaped design
Need fittings? Browse our selection or contact our sales manager at +1-866-790-6753 for expert assistance!
Shop online at BARR Plastics.
40 Gallon Box Shaped Tank (Model T33HW)
The 40 Gallon Box Shaped Tank (Model T33HW) from BARR Plastics is an exceptional storage solution suitable for a variety of applications, including water storage, chemical storage, and as a buffer tank. Built from high-density polyethylene (HDPE), this tank ensures durability, resistance to chemical corrosion, and UV stability, making it an ideal choice for both commercial and residential use.
Specifications
- Product Type: Storage Tank
- Capacity: 40 gallons
- Shape: Box-shaped design for efficient space utilization
- Material: High-density polyethylene (HDPE)
Key Features
- Design: Box shape allows for better stacking and stability; compact design perfect for limited spaces.
- Construction: High-quality HDPE provides excellent resistance to a wide range of chemicals and environmental conditions.
- Applications: Ideal for storing water, agricultural chemicals, fertilizers, and other non-potable liquids.
- Portability: Designed for easy handling, with some models featuring handles for mobility.
- Dimensions: Generally offers a stable footprint suited for various configurations.
- Installation and Maintenance: Easy installation with standard plumbing fittings; minimal maintenance required.
- Customization Options: Potential for custom dimensions, outlet configurations, or colors based on manufacturer offerings.
Benefits & Applications
The 40 Gallon Box Shaped Tank is a versatile and space-saving solution perfect for environments where floor space is limited. Its durable HDPE construction assures a long lifespan, even in demanding settings. Whether you're in agriculture, manufacturing, or any commercial sector, this tank provides reliable liquid management. It efficiently stores various liquids, ensuring safe containment and accessibility.
Why Buy from BARR Plastics?
At BARR Plastics, we offer durable, reliable components designed to meet your storage needs. Our expert support and quick shipping across Canada and the U.S. ensure you receive the right products when you need them. Don’t miss out on the best storage solutions!
Order now or Contact us for more information!
Dimensions
Height:
11.5"
Length:
49"
Width:
16"
Weight:
28.0 lb
Important:
Each box shaped tank includes a manufacturer-installed vent hole with welded vent plug prior to shipping.

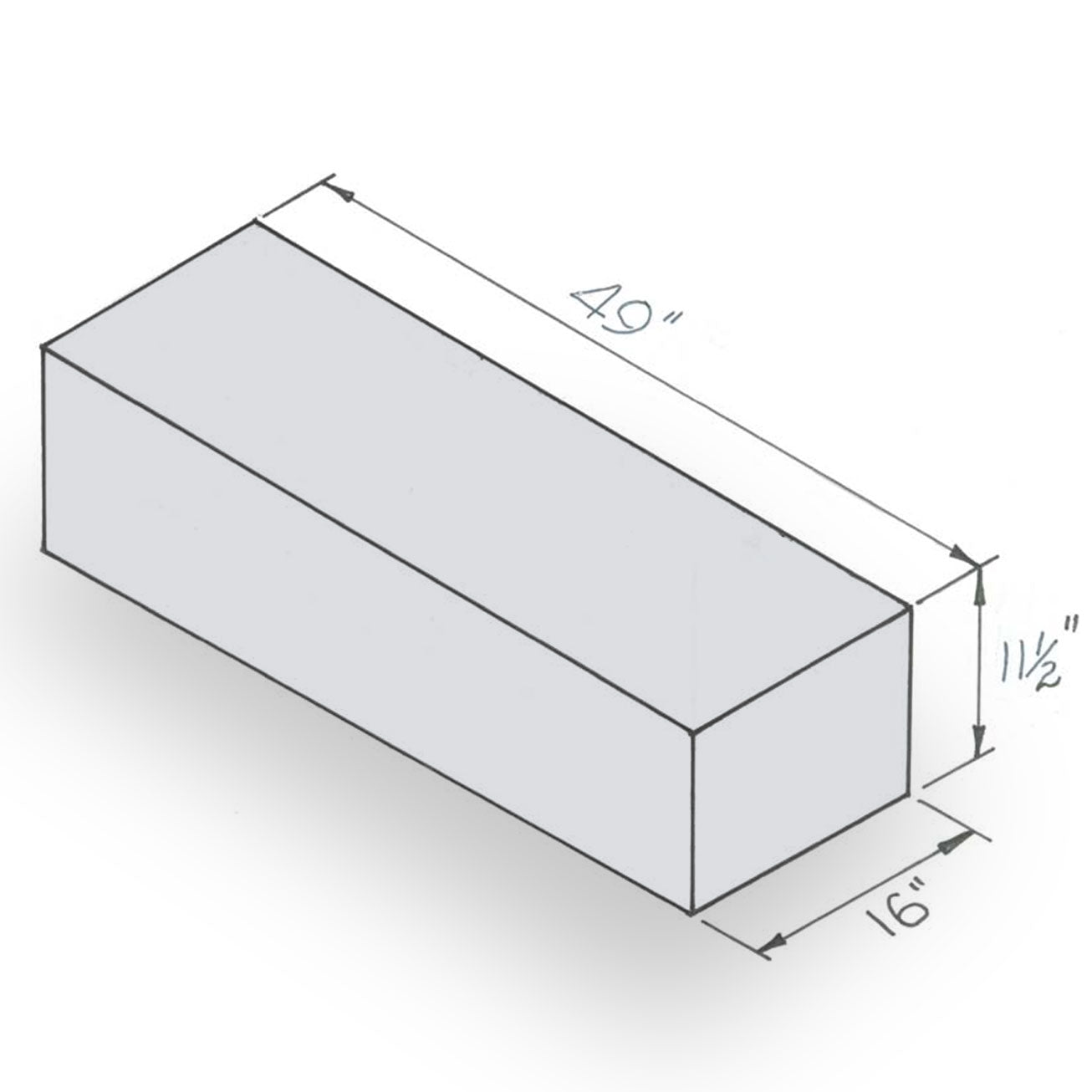

Technical Drawing
Info
Manufacturer:
BARR Plastics
USG Capacity:
40.0
Material:
Polyethylene (HDPE)
Dimensions
Height: 11.5"
Length: 49"
Width: 16"
Weight: 28.0 lb
