BARR Plastics
138 Gallon Box Shaped Tank | T115HW
Capacity:
138 USG
115 IG
522 L
Pre Order
SKU: T115HW
Couldn't load pickup availability
This product is currently out of stock but available for pre-order. Click "Request a Quote" below, and one of our sales representatives will assist you with your inquiry. We may have an alternative part number that is readily available.
| Capacity | Part # / Drawing | Dia./ Width (in) |
Length (in) |
Height (in) |
Lid/Fill Opening (in) |
Fitting (in) |
Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|---|
| USG | IG | LTR |
Heavy Weight
|
||||||
| 138 | 115 | 523 | T115HW | 30 | 48 | 24 | N/A | N/A | N/A |
Available customization options:
Spin welded fittings
Installed by BARR Plastics. Available in raised FNPT or flush FNPT styles. Add fitting size, thread type, and location to your tank approval drawing.
Bulkhead fittings
Installed by BARR Plastics or by the customer when a minimum 4" diameter access lid is installed. Available from 1/2" to 4" FNPT. Include hole saw size and install instructions in the fitting table.
Access lids
Clear, sealed deck plate access lids are available in 4", 6", and 8" diameters.
Vents
Mushroom-style vents are available in multiple sizes.
Adapters and hose fittings
A variety of additional adapters and fittings are available to connect hoses to your tank.
Flexible Tank Positioning
Box-Shaped and T-Tanks can be installed in different positions but may require a supporting framework to maintain their shape.
Important ordering note:
Custom fittings require approval before production. Download the box shaped tank approval drawing, mark fitting locations, and attach it to your order or quote request.
This tank is sold without pre-installed fittings, giving you the freedom to customize it to your needs. Whether you need it for water, waste, or another application, you can position it any way you like and add the right fittings where they make the most sense for your setup.
🔹 Customizable to fit your project
🔹 No fixed ports-install fittings exactly where needed
🔹 Space-saving box-shaped design
Need fittings? Browse our selection or contact our sales manager at +1-866-790-6753 for expert assistance!
Shop online at BARR Plastics.
138 Gallon Box Shaped Tank - Model T115HW from Barr Plastics
The 138 Gallon Box Shaped Tank (Model T115HW) from Barr Plastics is a reliable storage solution designed for various applications, including water storage, chemical containment, and agricultural use. Constructed from high-density polyethylene (HDPE), this tank is built to withstand the test of time while providing optimal performance.
Specifications
- Model: T115HW
- Capacity: 138 gallons (approx. 522 liters)
- Shape: Box-shaped for efficient stacking and space utilization
- Material: High-density polyethylene (HDPE)
Features
- Durability: Corrosion-resistant materials for long-term indoor and outdoor use
- UV Stabilization: Protects against sunlight degradation, ensuring longevity
- Versatile Applications: Ideal for water, fertilizers, and various chemicals
- Accessibility: Easy access with fittings and connections for hoses or pumps
- Stackable Design: Maximizes storage in tight spaces
Benefits & Applications
The Barr Plastics 138 Gallon Box Shaped Tank addresses critical storage needs across various industries. Its compact design allows for efficient use of space, making it particularly advantageous in constrained environments. Ideal for agricultural operations, chemical storage, and even residential rainwater collection systems, this tank helps improve operational efficiency while ensuring safety and compliance with local regulations. By utilizing durable materials and reliable construction, users can enjoy a long service life with reduced maintenance costs. For instance, agricultural businesses can effectively store fertilizers and nutrients, positively impacting crop yields while maintaining organizational efficiency.
Why Buy from Barr Plastics
At Barr Plastics, we pride ourselves on providing durable, reliable storage solutions backed by expert support and quick shipping across Canada and the United States. Our 138 Gallon Box Shaped Tank (T115HW) is just one example of our commitment to quality and customer satisfaction. Order now and discover how we can meet your liquid storage needs!
For more information or to request a quote, feel free to contact us.
Dimensions
Height:
24"
Length:
48"
Width:
30"
Weight:
75.0 lb
Important:
Each box shaped tank includes a manufacturer-installed vent hole with welded vent plug prior to shipping.

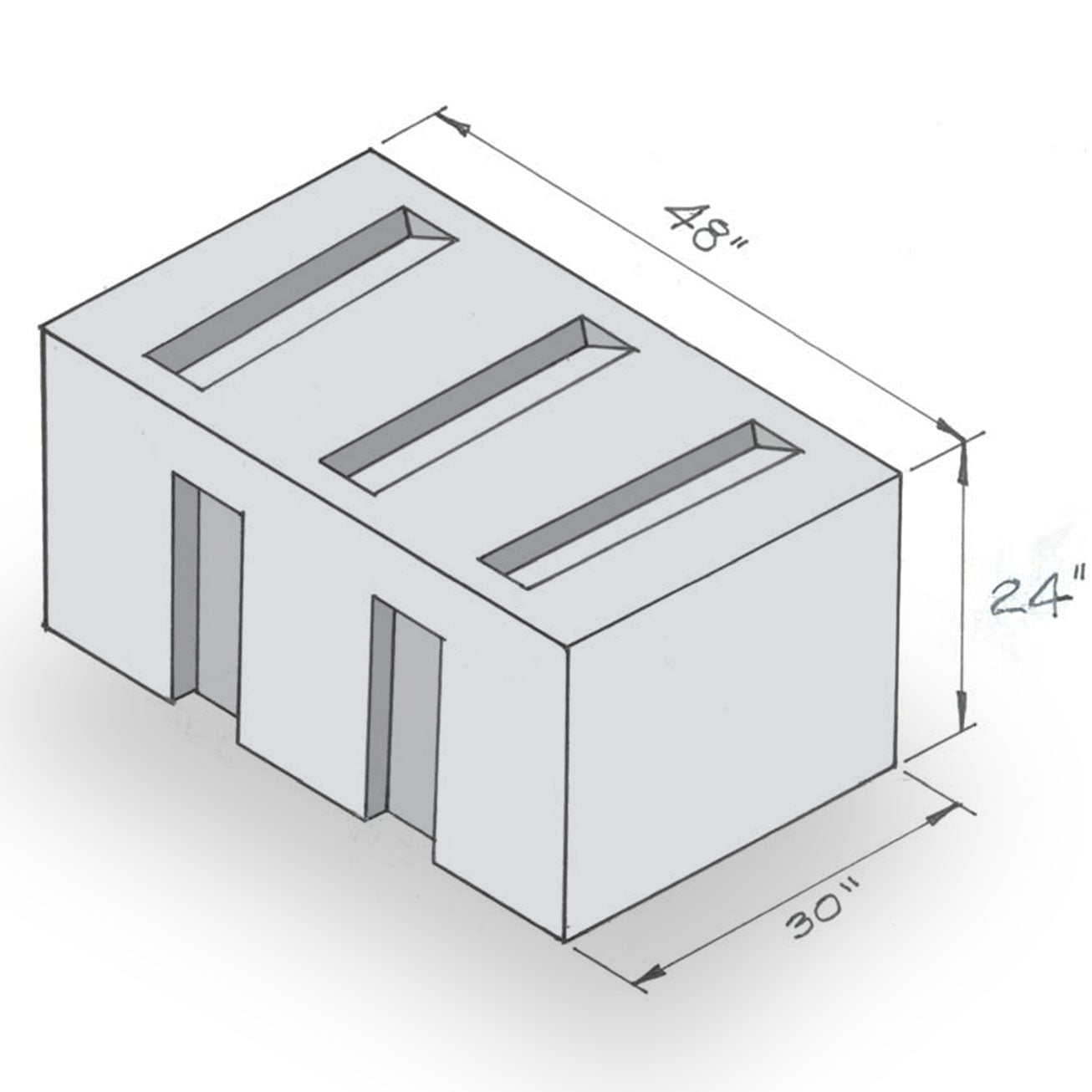

Technical Drawing
Info
Manufacturer:
BARR Plastics
USG Capacity:
138.0
Material:
Polyethylene (HDPE)
Dimensions
Height: 24"
Length: 48"
Width: 30"
Weight: 75.0 lb
