Power Blanket® Heating & Insulating Systems

Web Id: 1754

The Powerblanket delivers a barrier of uniform directional heat where it is needed most, to prevent fluids from freezing and to ensure optimal flowability. It's easy to install, uninstall, and move at only a fraction of the cost of expensive heat trace systems and effectively protects wellheads, tanks, manifolds, pumps, tubing bundles, valves, drums, buckets, totes, gas cylinders and pipelines from harsh outdoor weather. It cures concrete 2.8 times faster than standard curing blankets, has a low consumption of energy, reduces downtime and increases profitability. The Powerblanket is certified to UL/CSA/CE safety standards.

Swipe over the table to view all of the columns

Tank & Pipe Freeze Protection & Temperature Maintenance

Item	Description
Standard Sch 40 Pipe Wrap Package (Rated for -10°F/-23°C)	Available for standard 4"-12" diameter piping in 5', 10' & 20' lengths
Arctic Sch 40 Pipe Wrap Package (Rated for -40°F/-40°C )	Available for standard 4"-12" diameter piping in 5', 10' & 20' lengths
Tank Wraps	Please call BARR at 1-800-665-4499, we will help you determine which wrap suits your specific needs.

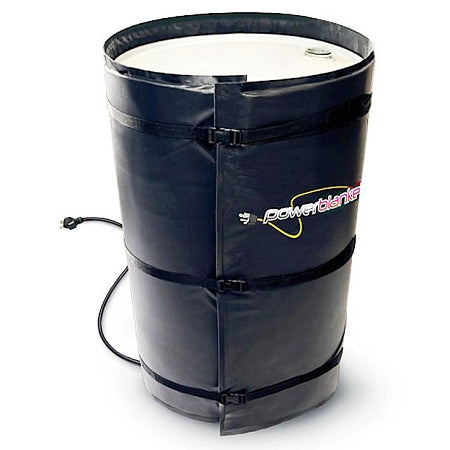

Drums, Buckets, Totes, Containers & Cylinders

Part #	Blanket Size	Description	Weight (lbs)
BH15RR	28" x 54"	Includes Rapid Ramp Technology* - for 15 USG Drum	7
BH15PRO	28" x 54"	Includes Thermostatic Controller+ - for 15 USG Drum	9
BH30RR	32" x 72"	Includes Rapid Ramp Technology* - for 30 USG Drum	9
BH30PRO	32" x 72"	Includes Thermostatic Controller+ - for 30 USG Drum	11
BH55RR	36" x 82"	Includes Rapid Ramp Technology* - for 55 USG Drum	11
BH55PRO	36" x 82"	Includes Thermostatic Controller+ - for 55 USG Drum	13
BH05RR	16" x 47"	Includes Rapid Ramp Technology* - for 5 USG Bucket	4
BH05PRO	16" x 47"	Includes Thermostatic Controller+ - for 5 USG Bucket	6
TH275	49" x 14' 6"	Includes Digital Thermostatic Controller - for 275 USG Tote	41
TH330	56" x 14' 6"	Includes Digital Thermostatic Controller - for 330 USG Tote	45
HB64	3' x 4' x 4'	64 cu.ft. Hot Box/Container - Includes Digital Thermostatic Controller	60
FBW60	13" x 13" x 23"	Single Component Foam Cylinder Box (A or B)	8
FBW15	16" x 16" x 16"	Two Component Foam Cylinder Box	8
GCW20 ^	20" x 45"	For 12.25"D x 18"H Cylinders	4
GCW30 ^	26" x 45"	For 12.25"D x 23.75"H Cylinders	6
GCW40 ^	33" x 45"	For 12.25"D x 29.25"H Cylinders	8
GCW100 ^	50" x 52"	For 15"D x 48"H Cylinders	12
GCW420 ^	53" x 104"	For 30"D x 52"H Cylinders	20

* = Rapidly heats and maintains a temperature of 100°F / 38°C ( ± 10°F / 6°C)

+ = Adjustable - Set and manage material temperatures from ambient up to 160°F / 71°C (± 2°F / 1°C)

^ = Maintains approximate temperature of 90°F / 32°C ( ± 10°F / 6°C)

Thawing Curing & Surface Heating

Part #	Blanket Size	Description	Weight (lbs)
Multi Duty Models
MD0312NH	3' x 12'	Covers and evenly distributes heat across 36 sq ft.	15
MD0325NH	3' x 25'	Covers and evenly distributes heat across 75 sq ft.	30
MD0409NH	4' x 9'	Covers and evenly distributes heat across 36 sq ft.	17
MD0612NH	6' x 12'	Covers and evenly distributes heat across 72 sq ft.	33
MD0625NH	6' x 25'	Covers and evenly distributes heat across 150 sq ft.	62
MD1010NH	10' x 10'	Covers and evenly distributes heat across 100 sq ft.	53
MD1123NH	11' x 23'	Covers and evenly distributes heat across 253 sq ft.	103
Extra Hot Models
EH0202NH	2' x 2'	Covers and evenly distributes heat across 4 sq ft.	3
EH0312NH	3' x 12'	Covers and evenly distributes heat across 36 sq ft.	15
EH0325NH	3' x 25'	Covers and evenly distributes heat across 75 sq ft.	30
EH0405NH	4' x 5'	Covers and evenly distributes heat across 20 sq ft.	10
EH0409NH	4' x 9'	Covers and evenly distributes heat across 36 sq ft.	17
EH0612NH	6' x 12'	Covers and evenly distributes heat across 72 sq ft.	33
