Top 6 Dock Float Options for Marine Applications

Introduction

Dock floats provide the buoyancy and stability essential for floating dock systems, from residential docks to commercial marinas. Choosing the right float ensures safety, durability, and longevity. BARR Plastics offers a complete range, including foam-filled modules, heavy-duty air tanks, and wave attenuators. This report ranks the top six dock float options based on durability, buoyancy, design, versatility, and application suitability.

1. BARR PermaFloat 48" × 96" × 32" – Maximum Buoyancy & Durability

Overview:

This molded foam-filled float delivers outstanding buoyancy (4,804 lbs) and ruggedness for large docks and platforms. The seamless polyethylene shell, filled with EPS foam, guarantees flotation even if punctured.

Highlights:

• High Buoyancy: Supports up to 4,804 lbs, making it suitable for large docks and platforms that require maximum lift. A few of these floats can keep extensive structures afloat.

• Foam-Filled Reliability: The EPS foam core means continued performance even if the shell is punctured, eliminating risk of sudden sinkage. The float is also maintenance-free, with no air pressure to monitor.

• Rugged Construction: The molded plastic shell is built to withstand harsh weather and impact over years of use. It’s UV-stabilized and resistant to gasoline, oil, and marine growth (by design of foam floats).


Best For: marinas, commercial docks, and large floating platforms where top-end buoyancy and durability are needed. For example, it can support heavy gangways, fuel docks, or expansive swim platforms with ease.

2. BARR Heavy-Duty Air Lift Tank 32" × 168" × 24" – Industrial Strength for Large Loads

Overview:

Built for industrial and commercial use, the Heavy-Duty Air Tank Float (BDALT32168-24) is a top choice. This massive float is a 32″ × 168″ × 24″ rectangular air-filled tank with a thick 0.375″ wall construction. It provides 4,050 lbs of buoyancy in a single unitand is specifically described as a “Heavy Duty Air Filled Boat Lift Float”, highlighting its strength. The extra-thick rotomolded polyethylene walls give it extreme durability for demanding conditions, making it ideal for heavy commercial docks, work platforms, or even floating bridge sections

Highlights:

• Exceptional Durability: With its 0.375″ thick plastic walls, this float is built to handle high-impact and high-stress environments. It’s designed to endure heavy loads and rough usage that would challenge standard dock floats. Barr Plastics notes these heavy-duty floats are “engineered for exceptional durability”, suitable for industrial projects.

• High Buoyancy: Each unit supports about 4,050 lbs, so just a few can hold up very large structures. The long 14′ length helps distribute weight over a broad area. This makes it perfect for floating work platforms and engineering projects that demand high load capacity.

• Robust Design: The rectangular tank form factor (with a flat “square” bottom) offers stability and easy integration under barges or large dock sections. Its heavy-duty design is also customizable for unique applications – these floats can be grouped or arranged to fit custom footprints.

Best For: industrial and commercial applications – for example, supporting heavy equipment on a floating work dock, underpinning a floating bridge, or as the primary flotation for a large marina fuel dock. In high-traffic commercial waterfronts or projects like oil & gas operations, these floats ensure long-term, secure performance.

3. BARR Wave Defender 48" × 48" × 20" – Wave Attenuation Protection

Overview:

Designed to dissipate wave energy, the Wave Defender protects docks in rough conditions. This foam-filled float provides 1,088 lbs of buoyancy and is modular for scalable protection.

Highlights:

• Wave Attenuation Design: The Wave Defender float is engineered to reduce wave impact and protect your dock. When installed as a wave attenuator (in a line or array), it effectively calms incoming waves, making it perfect for choppy lakes or coastal marinas.
• Durable Foam-Filled Build: Like other foam floats, it has a tough outer shell with an EPS foam interior, ensuring it remains afloat even if the outer shell is breached. This durability is crucial in high-impact wave environments. Each float’s buoyancy of 1,088 lbs can support the additional weight of ballast or concrete panels if used to enhance wave dampening.
• Modular and Scalable: The 3′ × 4′ footprint and 20″ height allow these floats to be linked to form a continuous barrier. They often work in tandem with ballast floats (empty floats that can be filled with water or sand) to increase mass for wave absorption. This modular approach lets you scale protection for anything from a private dock to an entire marina breakwater.

Best For: Ideal for marinas, resort docks, and high-traffic waterways where passing boat wakes or wind-driven waves are a concern. By installing Wave Defender floats along the outer edge of a dock system, marina operators can significantly reduce wave action inside the protected area, prolonging the life of their docks and providing calmer moorage for boats.

4. BARR 24" × 48" × 16" Low Profile Dock Float – Ideal for Swim Platforms

Overview:

This 24″ × 48″ × 16″ PermaFloat module is a popular choice for residential and light commercial docks. With a buoyancy of 598 lbs and weighing only ~37 lbs itself, it hits an excellent balance between lift capacity and ease of handling.

Highlights:

• Foam-Filled Reliability: The float is a molded foam filled plastic dock float, meaning it will keep functioning even if the shell is punctured. There is zero maintenance required (no air to pump), which is great for cottage docks or DIY installations. Simply bolt it under your dock sections and you’re set for years.
• Easy Installation: Weighing only ~37 lbs dry, a single person can maneuver this float into position during installation. The 2′ × 4′ footprint is convenient for modular dock construction – for example, four floats can nicely support an 8′ × 8′ dock section. The top surface has molded inserts for lag bolts or attachment hardware, simplifying mounting.
• Durability and Cost-Effectiveness: Despite its small size, it’s built with the same high-quality, UV-resistant polyethylene as larger floats, ensuring long life. Priced around $200, it’s an affordable option for residential docks that doesn’t compromise on quality. And because it’s foam-filled, it stays functional long-term with no waterlogging.

Best For: Ideal for private docks, swimming platforms, and other small to mid-size floating structures. Homeowners can use these 24″ × 48″ floats to build everything from a simple one-slip dock to a medium-sized floating deck. They’re also common in fish farms and aquaculture platforms due to their reliability. In general, this size float is a “jack-of-all-trades” – usable in many configurations for both residential and light commercial applications.

5. BARR Heavy-Duty Boat Lift Float 30" × 30" × 90" – Protective Float for Watercraft Lifts

Overview:

This float (Part # AT3030-90) is a heavy-duty air-filled float designed specifically for boat lifts and similar applications. It measures 30″ × 30″ × 90″ and provides 2,000 lbs of buoyancy. The float’s cylindrical-tank shape (7.5′ long) is well-suited to fit alongside boat hulls or under lift cradles. With the same 0.375″ wall thickness as other heavy-duty floats, it’s extremely rugged – perfect for repeatedly raising and lowering boats. When used in a boat lift system, these floats allow you to cradle your vessel out of the water, preventing hull damage and reducing maintenance.

Highlights:

• Designed for Boat Lifts: The float is marketed as a “Heavy Duty Air Filled Boat Lift Float”, meaning it’s built to handle the stresses of lifting and supporting a boat’s weight. Its 2,000 lb buoyancy can lift a substantial watercraft, especially when two floats are used (one on each side of a cradle for ~4,000 lbs total). The length helps distribute the boat’s weight evenly.
• Thick-Walled and Tough: Constructed with a 0.375″ thick polyethylene wall, this float resists flexing or damage during operation. Lifting a boat can put strain on floats (due to concentrated load and the dynamic forces of entering/exiting the lift), but this unit’s heavy-duty build handles it with ease. It’s also suitable for commercial PWC lifts or marine railway systems that need extra durability.
• Versatile Mounting: The 30″ × 90″ form factor allows it to fit in narrow spaces. It can be bolted or strapped to a metal boat lift frame. Because it has a flat “square” bottom and top with molded attachment points, it’s straightforward to secure. Users can even adjust the amount of water in the float (by adding a fill/drain plug) to fine-tune buoyancy for different boat weights (though as an air float it’s typically used fully sealed for max lift).

Best For: Primarily used in boat lift systems for personal boats or marina dry-storage lifts. It’s suitable for both personal docks (e.g. lifting a ski boat or pontoon out of water) and marina applications for larger vessels. Additionally, this float can double as a modular float for custom projects that need a slim, heavy-duty floater (such as supporting a narrow floating bridge or ramp). Its ability to be “adjustable for various boat sizes” (by configuring multiple units) makes it a flexible choice in marine settings.

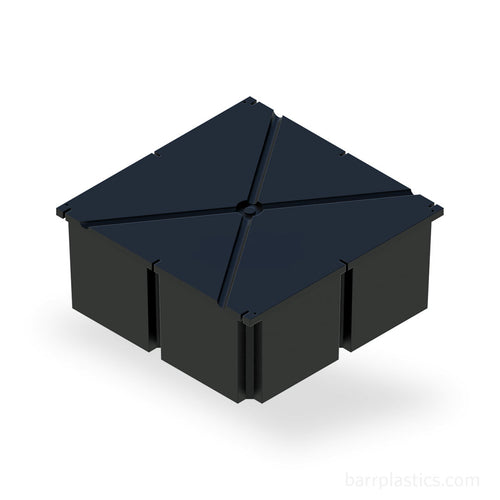

6. BARR Heavy-Duty Square Float 48" × 48" × 20" – Compact Float for High-Load Applications

Overview:

Rounding out the list is the 48″ × 48″ × 20″ heavy-duty air tank float (Square Bottom), Part # AT4848-20SQ. This float provides 1,460 lbs of buoyancy in a compact 4′ × 4′ footprint, making it comparable in size and lift to a foam float of similar dimensions, but with a much tougher shell. It’s essentially the heavy-duty, air-filled counterpart to a standard 4′ × 4′ dock float. If your project requires the durability of a commercial-grade float in a smaller module – for example, a heavily used marina dock or an industrial platform – this float is an excellent choice.

Highlights:

• High Strength Shell: The float is an air-filled, heavy-duty polyethylene unit with a flat square bottom design. Its description highlights a “Heavy Duty Air Filled Boat Lift Float – Square Bottom”, indicating it’s built to the same rugged standards as larger industrial floats. The thick-walled shell (approximately 3/8″) allows it to handle impacts (like bumping against pilings or rocks) and high point-loads without cracking.

• Good Buoyancy in Small Package: With 1,460 lbs buoyancy, one float can support a section of dock or a small structure; using multiple units gives you a stable, high-capacity floating foundation. The advantage here is you get near the buoyancy of a foam 48″ × 48″ × 20″ float (which is ~1,520 lbs) but with a shell that’s far more resistant to wear and tear in demanding conditions. This is valuable for commercial docks that see heavy equipment or frequent docking of large vessels.

• Easy Integration: The 48″ square form integrates well into dock framing. Mounting flanges/holes are typically molded into the top surface, making bolting it under a dock section straightforward. The uniform shape provides stable support and uniform freeboard, which is great for maintaining an even dock height.

Best For:  Aimed at marinas, commercial or military docks, and any application where smaller floats will see heavy use. For instance, if you’re building a floating fuel dock or service dock where carts, barrels or machinery will be on the dock, using these heavy-duty floats ensures the flotation won’t be the failure point. They’re also useful at dock corners or ramp interfaces – spots that often get banged up – as they’ll withstand impacts better than standard residential-grade floats. Essentially, whenever you need a compact float with extra toughness, this is the go-to option.

Dock Float Quick Comparison Chart

Conclusion

Choosing the right dock float is simple when you match it to your needs.

• Foam-filled floats are perfect for small docks and swim platforms — light, reliable, and maintenance-free.
• Heavy-duty air-filled floats handle bigger docks and rougher conditions with ease.
• Wave attenuator floats protect against waves and wakes.
• Boat lift floats help keep your vessel’s hull in top shape.

What to consider:

Buoyancy:

Know your total dock and boat weight plus the freeboard you want. Bigger floats (like PermaFloats) for heavy loads, smaller ones for sectional docks.

Durability & Environment:

Calm water? Foam floats work. Open water or marinas? Choose heavy-duty or attenuator floats for extra strength.

Design Flexibility:

Modular sizes (2′×4′, 4′×4′) offer easy building. Custom sizes are available from Barr Plastics for a perfect fit.

Ease of Installation:

Foam floats are DIY-friendly. Heavy-duty options may need equipment but offer extreme durability. All resist rot, rust, and UV damage.

Choose the right float and build with confidence — your dock will stay stable, safe, and ready for years of enjoyment.   See you on the water!
