How high-rise and mixed-use developments are solving stormwater storage challenges in underground parking structures with HDPE fabricated tank systems.

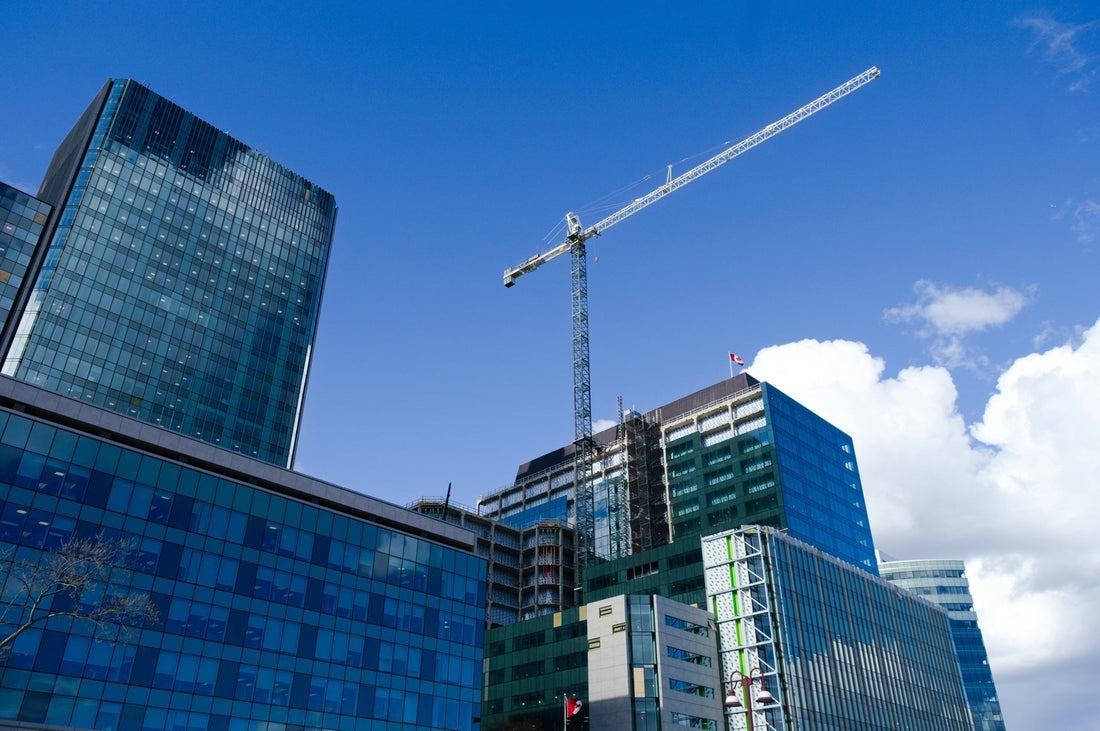

The Growing Challenge of Stormwater Management in High-Rise Developments
As urban density increases across Canadian cities, high-rise residential and commercial towers face mounting pressure to manage stormwater on-site. Municipal requirements for stormwater detention, retention, and volume control mean that building owners and civil engineers must find space for significant storage capacity - often within the building envelope itself.
For many projects, the most logical location for an underground stormwater tank is the parkade level. Parking structures represent large, underutilized volumes beneath the building footprint, making them attractive candidates for stormwater storage integration. But retrofitting or designing a stormwater detention tank into an underground parking lot introduces a distinct set of structural, mechanical, and operational challenges that off-the-shelf solutions cannot easily address.
This article examines the key engineering and design issues associated with underground parkade stormwater systems and explains how custom-fabricated plastic tanks - built to match the exact geometry and constraints of a specific parkade - offer a practical and cost-effective path forward.
Why Underground Parking Stormwater Storage Is Complicated
Engineers and project managers working on high-rise stormwater management regularly encounter the same set of constraints when evaluating in-parkade tank installations. Understanding these issues upfront is essential to selecting the right storage system.
1. Space Conflicts and Layout Constraints
Parking structures are designed to maximize stall count, aisle width, and turning radius within a tight column grid. Introducing a prefabricated concrete vault or standard cylindrical tank almost always displaces parking stalls, reduces drive aisle width, or conflicts with mechanical rooms. In competitive urban markets, every lost parking stall has a real dollar value.
A custom-fabricated stormwater tank - designed specifically around the as-built column layout, ceiling clearance, and available corners of a given parkade - can recover usable space that standard products cannot. L-shaped tanks, segmented configurations, and tanks with cutouts for structural columns are all achievable through custom plastic fabrication.
2. Structural Load on Suspended Slabs
Many underground parkades are built on suspended structural slabs rather than on-grade concrete. A stormwater detention system holding tens of thousands of litres of water represents a significant concentrated load - one that must be reviewed and approved by the structural engineer of record.
Plastic tanks are dramatically lighter than precast concrete alternatives. An HDPE or polypropylene tank weighs only the water it holds, without the added dead load of the vessel walls. This weight advantage can be the deciding factor in whether a tank installation is structurally feasible on a given slab span.
3. Delivery and Installation Access
Once a building structure is closed in, delivering large components to the underground parking level is severely restricted. Precast concrete tanks are typically cast off-site as monolithic units and require crane access and open excavation - neither of which is available in a finished or partially finished parkade.

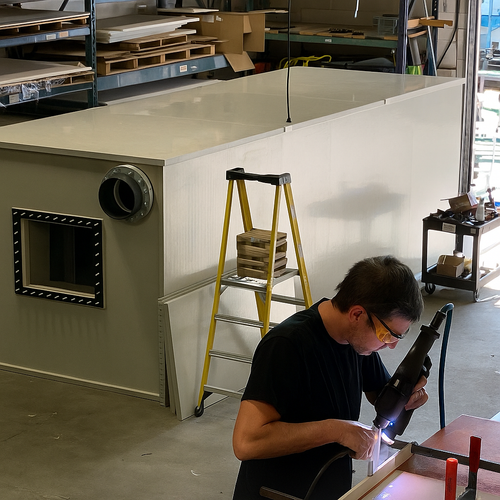

Custom plastic tanks offer a significant logistical advantage here. The tank is fully fabricated and welded to completion in the shop, where controlled conditions allow certified welders to produce consistent, inspected welds before the vessel ever leaves the facility. The completed tank - or where size permits, large pre-assembled sections — is then transported and set into place on site. This shop-fabricated approach eliminates the crane and excavation requirements that make concrete systems impractical in confined underground spaces, and it means installation on site is a placement and connection exercise rather than a fabrication one.
4. Waterproofing and Leak Risk
In-structure leaks from a stormwater storage tank can cause serious damage: saturated parkade decks, compromised electrical rooms, flooded elevator pits, and long-term concrete deterioration. For building owners and strata corporations, a leaking stormwater tank in the parking garage is a high-consequence failure.
HDPE and polypropylene tanks fabricated using extrusion welding offer a fully monolithic vessel with no bolted joints, gaskets, or sealants that can degrade over time. Properly fabricated plastic tanks provide consistent, durable liquid containment without the waterproofing maintenance burden associated with concrete or steel alternatives.
5. Maintenance Access Requirements
Municipal stormwater authorities and building inspectors routinely require that detention and retention systems remain accessible for inspection, cleaning, pump-out, and routine maintenance. This means the tank design must incorporate inspection ports, manways, and cleanout access points sized for entry by maintenance personnel and equipment.
Custom-fabricated tanks can integrate all required access features into the vessel at the design stage: flanged manways, ladder access, internal baffles, level sensors, and pump chambers can all be built in during fabrication rather than field-modified after the fact.
6. Pretreatment, Sediment Control, and Odour Management
Roof drainage and surface runoff entering a stormwater tank carry sediment, organic material, hydrocarbons, and road salts. Without adequate pretreatment, solids accumulate in the tank and create odour problems, reduce effective storage volume, and shorten pump and valve service life.

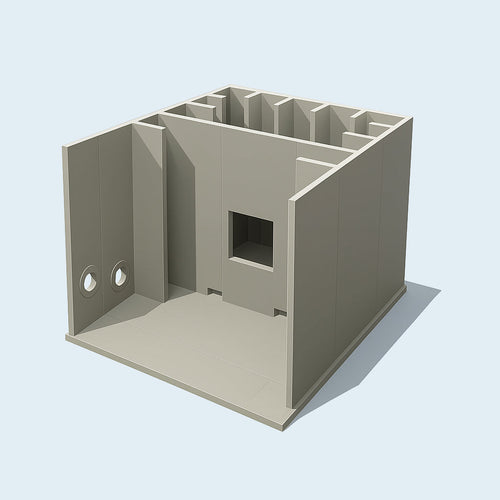

Custom tank configurations can include internal baffle walls, sump compartments, and inlet baffling that promote settling and keep debris away from outlet connections and pump intakes. Stormwater pretreatment design should be coordinated between the civil engineer and the tank fabricator from the outset.
7. Fire, Life Safety, and Emergency Access
Any stormwater storage installation in an underground parkade must be reviewed against the building's fire safety plan. Tanks, piping, and access hatches cannot block fire routes, emergency exits, sprinkler coverage, or access to electrical and mechanical rooms. Early coordination with the fire code consultant and the authority having jurisdiction is essential.
How Custom Plastic Tanks Address Parkade Stormwater Challenges
Not every problem in underground stormwater management has an easy solution, but custom-fabricated thermoplastic tanks directly resolve several of the most difficult constraints engineers face on these projects.
Custom Geometry to Fit Any Parkade Layout
Unlike precast concrete boxes or modular plastic crates, a custom-fabricated HDPE or polypropylene tank is engineered to match the exact dimensions, column spacing, and ceiling height of the installation space. Tanks can be rectangular, L-shaped, multi-compartment, or built around structural elements to minimize the impact on parking layout. For projects where stall preservation is a priority, this flexibility often justifies the custom fabrication approach on its own.
Lower Dead Load on Structural Systems
Plastic tanks impose significantly lower dead loads than concrete alternatives of equivalent volume. For installations on suspended slabs or post-tensioned decks - common in high-rise construction - this weight reduction can make the difference between a structurally viable system and one that requires expensive slab reinforcement. Structural engineers reviewing stormwater system options should obtain accurate weight data from fabricators early in the design process.
Modular Fabrication and On-Site Assembly
BARR tanks are fully fabricated and welded in the shop under controlled conditions, then delivered to site as a completed vessel. All welding, inspection, and quality control happens before the tank leaves the facility - not in the field. This includes a full water test: every tank is filled with water in the shop to verify structural integrity and confirm there are no leaks before it is loaded for delivery. The completed tank is sized and configured to be transportable to the installation site, where it is placed and connected to the building’s stormwater piping system. This shop-fabricated approach means there are no field welding variables, no weather or access constraints affecting weld quality, and no ambiguity about vessel integrity before installation.

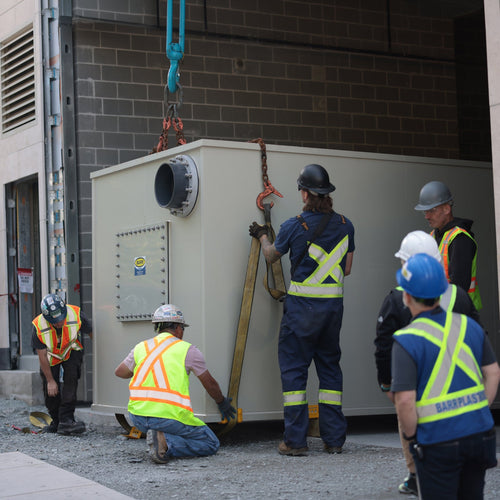

Shop-fabricated plastic tanks arrive on site as completed, inspected vessels — ready for placement and connection, with all welding and quality control completed under controlled shop conditions.
Corrosion Resistance for Long Service Life
Stormwater collected from urban rooftops and parking surfaces contains road salts, de-icing chemicals, oils, and dissolved chlorides. Over time, these constituents aggressively corrode steel tanks and attack the waterproofing of concrete vessels. HDPE and polypropylene are chemically inert to the full range of stormwater contaminants, providing decades of service life without internal coating, cathodic protection, or routine corrosion inspection.
Integrated Connections and Fittings
Custom plastic tanks can be fabricated with all required connections built in: inlet and outlet nozzles, overflow connections, pump chamber compartments, drain provisions, access hatches, level sensor ports, and vent openings. Specifying these details at the fabrication stage reduces field modifications, shortens installation time, and ensures all penetrations are properly welded and structurally sound.
What a Custom Tank Does Not Replace
Custom plastic fabrication addresses physical and logistical challenges, but it does not substitute for engineering, regulatory compliance, or system design. Projects involving underground stormwater storage in parkades still require:
- A civil engineer of record to size the detention or retention volume and design the overflow routing
- A structural engineer to assess slab and column capacity under water-filled tank loads
- A mechanical engineer to design the pump system, controls, level monitoring, and emergency bypass
- Stormwater pretreatment design to protect tank internals and meet municipal water quality requirements
- Municipal approval of the stormwater management plan, including the tank sizing calculations
- Coordination with the authority having jurisdiction on fire and life safety requirements
The tank fabricator's role is to deliver a vessel that precisely meets the specifications provided by the design team - and to bring constructability expertise that helps the engineering team avoid problems during installation.
Selecting a Fabricator for Underground Stormwater Tank Projects
Not all plastic tank fabricators have the capability or experience to execute custom underground stormwater projects. When evaluating fabricators for a high-rise or commercial parkade stormwater application, consider the following:
- Track record with custom-geometry, large-volume tanks for civil and municipal applications
- In-house certified thermoplastic welding capability with rigorous shop weld inspection and quality control
- Ability to supply shop drawings and engineering documentation for structural review
- Experience fabricating in HDPE, polypropylene homopolymer, and copolymer for stormwater contact
- Willingness to coordinate with the civil, structural, and mechanical engineering teams throughout design
- Established quality control and weld inspection procedures
Custom Stormwater Tanks for Underground Parking Structures - BARR Plastics
BARR Plastics Inc. fabricates custom HDPE and polypropylene tanks for stormwater detention, retention, and collection applications across Western Canada. Our team works directly with civil engineers, mechanical consultants, and general contractors to design and build tanks that fit within the specific constraints of underground parkade environments.
Every BARR tank is fully fabricated and welded in our shop, inspected before it leaves the facility, and delivered to site ready for placement and connection. From preliminary layout discussions through to delivery and installation support, we bring fabrication expertise to your stormwater management project.
