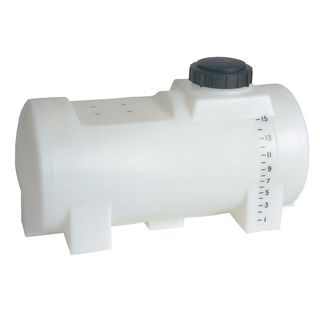

Spot Sprayer Tanks

Web Id: 5765

Small spray tanks are suitable for mixing chemicals and transporting water. The lid threads directly into fill opening to prevent sloshing or leaking during transportation and threaded inserts are on the bottom of the tank for mounting to equipment of ATV's. Mounting inserts also exist on the top of the tank for 12 volt utility pumps. The tanks are manufactured with UV inhibitors for a long life outdoors and translucent walls allow for easy level viewing.

Swipe over the table to view all of the columns

Click on Part # to view tank drawing

Capacity			Part # / Drawing		Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Fitting (in)	Weight (lbs)
USG	IG	LTR	Premium Weight 1.5-1.7 SG	Heavy Weight 1.9 SG	Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Fitting (in)	Weight (lbs)
14	12	53	45115 *	N/A	14	31	15	5	N/A	12.5
14	12	53	SM0014-14S *	N/A	14	31	N/A	5	N/A	8
25	21	95	62080 +	N/A	18	36	18	5	N/A	15.5
25	21	95	SM0025-18S +	N/A	18	34	N/A	5	N/A	13.5

* = May be Shipped by UPS Dimensional Weight

+ = May be Shipped by UPS Oversize
