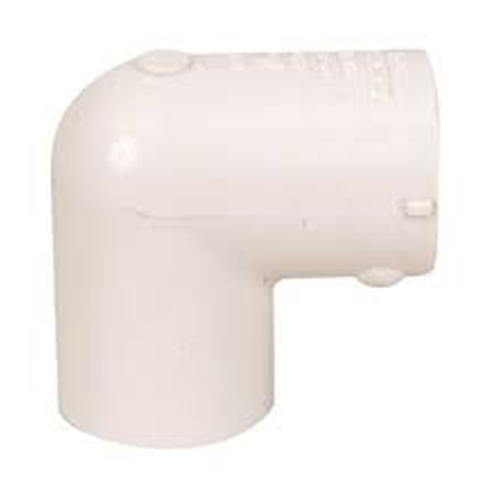

SCH 40 / 80 PVC 90° Elbows
- Also available in CPVC
Also available in CPVC Click on Part # to viewdrawing Part # Size Description 406-005 1/2" 1/2" SCH40 PVC 90° Elbow SxS 407-005 1/2" 1/2" SCH40 PVC 90° Elbow SxF...
- Also available in CPVC
Couldn't load pickup availability
| Part # | Size | Description |
|---|---|---|
| 406-005 | 1/2" | 1/2" SCH40 PVC 90° Elbow SxS |
| 407-005 | 1/2" | 1/2" SCH40 PVC 90° Elbow SxF |
| 410-005 | 1/2" | 1/2" SCH40 PVC 90° Elbow MPTxSLIP |
| 806-005 | 1/2" | 1/2" SCH80 PVC 90° Elbow SxS |
| 406-007 | 3/4" | 3/4" SCH40 PVC 90° Elbow SxS |
| 410-007 | 3/4" | 3/4" SCH40 PVC 90° Elbow SxMPT |
| 806-007 | 3/4" | 3/4" SCH80 PVC 90° Elbow SxS |
| 808-007 | 3/4" | 3/4" SCH80 PVC 90° Elbow FPTxFPT |
| 406-010 | 1" | 1" SCH40 PVC 90° Elbow SxS |
| 806-010 | 1" | 1" SCH80 PVC 90° Elbow SxS |
| 406-012 | 1-1/4" | 1-1/4" SCH40 PVC 90° Elbow SxS |
| 806-012 | 1-1/4" | 1-1/4" SCH80 PVC 90° Elbow SxS |
| 406-015 | 1-1/2" | 1-1/2" SCH40 PVC 90° Elbow SxS |
| 407-015 | 1-1/2" | 1-1/2" SCH40 PVC 90° Elbow SxFPT |
| 408-015 | 1-1/2" | 1-1/2" SCH40 PVC 90° Elbow TT |
| 410-015 | 1-1/2" | 1-1/2" SCH40 PVC 90° Elbow SxMPT |
| 806-015 | 1-1/2" | 1-1/2" SCH80 PVC 90° Elbow SxS |
| 807-015 | 1-1/2" | 1-1/2" SCH80 PVC 90° Elbow SxFPT |
| 810-015 | 1-1/2" | 1-1/2" SCH80 PVC 90° Elbow SxMPT |
| 406-020 | 2" | 2" SCH40 PVC 90° Elbow SxS |
| 407-020 | 2" | 2" SCH40 PVC 90° Elbow SxFPT |
| 408-020 | 2" | 2" SCH40 PVC 90° Elbow TT |
| 410-020 | 2" | 2" SCH40 PVC 90° Elbow SxMPT |
| 806-020 | 2" | 2" SCH80 PVC 90° Elbow SxS |
| 807-020 | 2" | 2" SCH80 PVC 90° Elbow SxFPT |
| 808-020 | 2" | 2" SCH80 PVC 90° Elbow FPTxFPT |
| 406-030 | 3" | 3" SCH40 PVC 90° Elbow SxS |
| 409-030 | 3" | 3" SCH40 PVC 90° Elbow SPIGxS |
| 806-030 | 3" | 3" SCH80 PVC 90° Elbow SxS |
| 806-030C | 3" | 3" CPVC 90° Elbow |
| 414153BC | 3" | 3" PVC 90° Drain Elbow SDR35 Short |
| 414163BC | 3" | 3" PVC 90° Drain Elbow SDR35 Long |
| 406-040 | 4" | 4" SCH40 PVC 90° Elbow SxS |
| 407-040 | 4" | 4" SCH40 PVC 90° Elbow SxFPT |
| 806-040 | 4" | 4" SCH80 PVC 90° Elbow SxS |
| 414154BC | 4" | 4" PVC 90° Drain Elbow SDR35 SxS Short |
| 414164BC | 4" | 4" PVC 90° Drain Elbow SDR35 SxS Short |
| 406-060 | 6" | 6" SCH40 PVC 90° Elbow SxS |
| 806-060 | 6" | 6" SCH80 PVC 90° Elbow SxS |
| 414156BC | 6" | 6" PVC 90° Drain Elbow SDR35 SxS Short |
| 414166BC | 6" | 6" PVC 90° Drain Elbow Long |
| 406-080 | 8" | 8" SCH40 PVC 90° Elbow SxS |
| 806-080 | 8" | 8" SCH80 PVC 90° Elbow SxS |
Product Overview
The SCH 40 / 80 PVC 90° Elbow from BARR Plastics is an essential plumbing fitting designed for efficient piping direction changes at right angles. Constructed from durable Polyvinyl Chloride (PVC), this elbow ensures seamless transitions while resisting corrosion and chemicals, making it ideal for various plumbing, irrigation, and industrial applications.
Features & Specifications
- Material: Made from durable Polyvinyl Chloride (PVC) for long-lasting performance.
- Variety: Available in both Schedule 40 (SCH 40) and Schedule 80 (SCH 80) for varying pressure requirements.
- Design: 90° elbow shape enables sharp turns in the pipeline without joints or connections.
- Size Availability: Offered in various sizes, including ½-inch, ¾-inch, and 1-inch, for compatibility with different piping diameters.
- Lightweight: Easy to handle and install compared to heavier metal fittings.
- Low Maintenance: Requires minimal upkeep with a long service life.
- Cost-Effective: More affordable than metal alternatives without compromising performance.
Benefits & Applications
The SCH 40 / 80 PVC 90° Elbow helps solve common piping challenges by facilitating smooth directional changes in water flow. Its robust design is perfect for residential plumbing systems, directing water supply and drainage efficiently. In irrigation, it directs water flow over distances effectively, ensuring that crops receive adequate moisture. The elbow is also widely utilized in industrial applications where piping must navigate around obstacles, as well as in wastewater management systems to handle drainage and sewage efficiently. With its blend of durability and versatility, this fitting is ideal for contractors and DIY enthusiasts alike.
