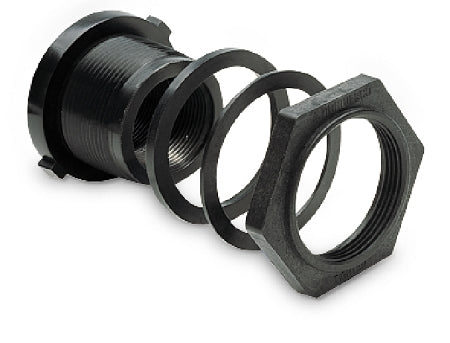

Polypropylene Bulkhead Fittings
All of BARR's bulkhead fittings are double threaded and constructed of polypropylene for long-lasting durability. They can be welded to your tank wall by BARR Plastics or bought separately for a variety of applications. Viton gaskets are available when EPDM may not be suitable for your application. Inquire today!
PARTS TABLE
Click on Part # to view drawing| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 62798 | 3/4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF075 | 3/4 | 1 | Bulkhead fitting |
| 60401 | 3/4 | 1 | Bulkhead fitting with EPDM gasket |
| 62834 | 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| 60360 | 1/2 - 3/4 | 1 | Viton gasket for 60401 & 62834 |
| 60402 | 1/2 - 3/4 | 1 | EPDM gasket for 60401 & 62834 |
| 150G | 1/2 - 3/4 | 100 | EPDM gasket for TF075 |
| 150GV | 1/2 - 3/4 | 50 | Viton gasket for TF075 |
| 60427 | 1 | 1 | Bulkhead fitting with EPDM gasket |
| TF100 | 1 | 1 | Heavy duty bulkhead fitting |
| 60403 | 1 1/4 | 1 | Bulkhead fitting with EPDM gasket |
| 200G | 1 - 1 1/4 | 50 | EPDM gasket for TF100 |
| 200GV | 1 - 1 1/4 | 50 | Viton gasket for TF100 |
| 60404 | 1 - 1 1/4 | 1 | EPDM gasket for 60403 & 60427 |
| 60361 | 1 - 1 1/4 | 1 | Viton gasket for 63065, 60403 & 60427 |
| 62398 | 1 1/4 | 1 | Anti-vortex adapter |
| 60124 | 1 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| TF150 | 1 1/2 | 1 | Heavy duty bulkhead fitting |
| 60405 | 2 | 1 | Bulkhead fitting with EPDM gasket |
| TF220 | 2 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF220V | 2 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60406 | 1 1/2 - 2 | 1 | EPDM gasket for 60405 & 60124 |
| 60523 | 1 1/2 - 2 | 1 | Viton gasket for 60405 & 60124 |
| 300G | 1 1/2 - 2 | 1 | EPDM gasket for TF150 |
| 300GV | 1 1/2 - 2 | 1 | Viton gasket for TF150 & TF200 |
| 62399 | 2 | 1 | Anti-vortex adapter |
| 63316 | 2 | 1 | MPT vent cap/anti-vortex |
| 63266 | 2 | 1 | MPT vent cap w with poly screen |
| 63262 | 2 x 12 | 1 | Polypropylene siphon tube |
| 60335 | 2 | 1 | Polypropylene siphon tube |
| 62299 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300V | 3 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60331 | 3 | 1 | EPDM gasket for 62299, 60339 & 63668 |
| 60351 | 3 | 1 | Viton gasket for 62299 & 63668 |
| 63263 | 3 | 1 | Polypropylene siphon tube |
| 60327 | 3 | 1 | Polypropylene siphon tube |
| 62171 | 4 | 1 | Heavy duty bulkhead fitting |
| TF400 | 4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF400V | 4 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 62785 | 4 | 1 | EPDM gasket for 62171 |
| 62786 | 4 | 1 | Viton gasket for 62171 |
| 62714 | 4 | 1 | Polypropylene siphon tube |
All of BARR's bulkhead fittings are double threaded and constructed of polypropylene for long-lasting durability. They can be welded to your tank wall by BARR Plastics or bought separately for...
All of BARR's bulkhead fittings are double threaded and constructed of polypropylene for long-lasting durability. They can be welded to your tank wall by BARR Plastics or bought separately for a variety of applications. Viton gaskets are available when EPDM may not be suitable for your application. Inquire today!
PARTS TABLE
Click on Part # to view drawing| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 62798 | 3/4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF075 | 3/4 | 1 | Bulkhead fitting |
| 60401 | 3/4 | 1 | Bulkhead fitting with EPDM gasket |
| 62834 | 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| 60360 | 1/2 - 3/4 | 1 | Viton gasket for 60401 & 62834 |
| 60402 | 1/2 - 3/4 | 1 | EPDM gasket for 60401 & 62834 |
| 150G | 1/2 - 3/4 | 100 | EPDM gasket for TF075 |
| 150GV | 1/2 - 3/4 | 50 | Viton gasket for TF075 |
| 60427 | 1 | 1 | Bulkhead fitting with EPDM gasket |
| TF100 | 1 | 1 | Heavy duty bulkhead fitting |
| 60403 | 1 1/4 | 1 | Bulkhead fitting with EPDM gasket |
| 200G | 1 - 1 1/4 | 50 | EPDM gasket for TF100 |
| 200GV | 1 - 1 1/4 | 50 | Viton gasket for TF100 |
| 60404 | 1 - 1 1/4 | 1 | EPDM gasket for 60403 & 60427 |
| 60361 | 1 - 1 1/4 | 1 | Viton gasket for 63065, 60403 & 60427 |
| 62398 | 1 1/4 | 1 | Anti-vortex adapter |
| 60124 | 1 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| TF150 | 1 1/2 | 1 | Heavy duty bulkhead fitting |
| 60405 | 2 | 1 | Bulkhead fitting with EPDM gasket |
| TF220 | 2 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF220V | 2 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60406 | 1 1/2 - 2 | 1 | EPDM gasket for 60405 & 60124 |
| 60523 | 1 1/2 - 2 | 1 | Viton gasket for 60405 & 60124 |
| 300G | 1 1/2 - 2 | 1 | EPDM gasket for TF150 |
| 300GV | 1 1/2 - 2 | 1 | Viton gasket for TF150 & TF200 |
| 62399 | 2 | 1 | Anti-vortex adapter |
| 63316 | 2 | 1 | MPT vent cap/anti-vortex |
| 63266 | 2 | 1 | MPT vent cap w with poly screen |
| 63262 | 2 x 12 | 1 | Polypropylene siphon tube |
| 60335 | 2 | 1 | Polypropylene siphon tube |
| 62299 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300V | 3 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60331 | 3 | 1 | EPDM gasket for 62299, 60339 & 63668 |
| 60351 | 3 | 1 | Viton gasket for 62299 & 63668 |
| 63263 | 3 | 1 | Polypropylene siphon tube |
| 60327 | 3 | 1 | Polypropylene siphon tube |
| 62171 | 4 | 1 | Heavy duty bulkhead fitting |
| TF400 | 4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF400V | 4 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 62785 | 4 | 1 | EPDM gasket for 62171 |
| 62786 | 4 | 1 | Viton gasket for 62171 |
| 62714 | 4 | 1 | Polypropylene siphon tube |
Couldn't load pickup availability
Click on Part # to view drawing
| Part # | Size (in) | Box/Case Qty. | Description |
|---|---|---|---|
| 62798 | 3/4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF075 | 3/4 | 1 | Bulkhead fitting |
| 60401 | 3/4 | 1 | Bulkhead fitting with EPDM gasket |
| 62834 | 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| 60360 | 1/2 - 3/4 | 1 | Viton gasket for 60401 & 62834 |
| 60402 | 1/2 - 3/4 | 1 | EPDM gasket for 60401 & 62834 |
| 150G | 1/2 - 3/4 | 100 | EPDM gasket for TF075 |
| 150GV | 1/2 - 3/4 | 50 | Viton gasket for TF075 |
| 60427 | 1 | 1 | Bulkhead fitting with EPDM gasket |
| TF100 | 1 | 1 | Heavy duty bulkhead fitting |
| 60403 | 1 1/4 | 1 | Bulkhead fitting with EPDM gasket |
| 200G | 1 - 1 1/4 | 50 | EPDM gasket for TF100 |
| 200GV | 1 - 1 1/4 | 50 | Viton gasket for TF100 |
| 60404 | 1 - 1 1/4 | 1 | EPDM gasket for 60403 & 60427 |
| 60361 | 1 - 1 1/4 | 1 | Viton gasket for 63065, 60403 & 60427 |
| 62398 | 1 1/4 | 1 | Anti-vortex adapter |
| 60124 | 1 1/2 | 1 | Bulkhead fitting with EPDM gasket |
| TF150 | 1 1/2 | 1 | Heavy duty bulkhead fitting |
| 60405 | 2 | 1 | Bulkhead fitting with EPDM gasket |
| TF220 | 2 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF220V | 2 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60406 | 1 1/2 - 2 | 1 | EPDM gasket for 60405 & 60124 |
| 60523 | 1 1/2 - 2 | 1 | Viton gasket for 60405 & 60124 |
| 300G | 1 1/2 - 2 | 1 | EPDM gasket for TF150 |
| 300GV | 1 1/2 - 2 | 1 | Viton gasket for TF150 & TF200 |
| 62399 | 2 | 1 | Anti-vortex adapter |
| 63316 | 2 | 1 | MPT vent cap/anti-vortex |
| 63266 | 2 | 1 | MPT vent cap w with poly screen |
| 63262 | 2 x 12 | 1 | Polypropylene siphon tube |
| 60335 | 2 | 1 | Polypropylene siphon tube |
| 62299 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300 | 3 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF300V | 3 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 60331 | 3 | 1 | EPDM gasket for 62299, 60339 & 63668 |
| 60351 | 3 | 1 | Viton gasket for 62299 & 63668 |
| 63263 | 3 | 1 | Polypropylene siphon tube |
| 60327 | 3 | 1 | Polypropylene siphon tube |
| 62171 | 4 | 1 | Heavy duty bulkhead fitting |
| TF400 | 4 | 1 | Heavy duty bulkhead fitting with EPDM gasket |
| TF400V | 4 | 1 | Heavy duty bulkhead fitting with viton gasket |
| 62785 | 4 | 1 | EPDM gasket for 62171 |
| 62786 | 4 | 1 | Viton gasket for 62171 |
| 62714 | 4 | 1 | Polypropylene siphon tube |
Polypropylene Bulkhead Fittings
Introducing the BARR Plastics Polypropylene Bulkhead Fittings, your ultimate solution for creating secure, leak-proof connections between two separate containers or systems. Manufactured from high-quality polypropylene, these fittings are designed to endure various chemical exposures and physical stresses, making them ideal for diverse industrial and commercial applications.
Key Features:
- Material Composition: Made from strong and durable polypropylene, resistant to chemical corrosion, UV light, and moisture.
- Design: Features a female threaded section to screw into a solid wall and a male threaded part that connects to piping or hoses for a watertight seal.
- Versatility: Perfect for marine, agricultural, industrial, and home uses, accommodating systems involving water, chemicals, and other fluids.
- Easy Installation: Designed for straightforward installation with minimal tools; just drill a hole and thread the fitting in place.
- Size Varieties: Available in various sizes to fit different pipe and hose diameters for customized applications.
- Cost-Effective Solution: Reliable sealing helps minimize maintenance and replacement costs over time.
Benefits & Applications
Our polypropylene bulkhead fittings are engineered to solve your fluid transfer challenges while enhancing operational efficiency. Their robustness makes them a top choice in industries such as aqua-culture, chemical storage, and hydroponics. For example, in aquaculture, these fittings help maintain water quality in fish tanks by ensuring seamless water flow. In chemical storage, they enable tanks to safely contain corrosive substances, preventing unwanted leaks and spills. Whatever your application, you can trust our bulkhead fittings to deliver exceptional performance and reliability.
Why Buy from BARR Plastics?
At BARR Plastics, we pride ourselves on providing durable and reliable components for your fluid management needs, backed by expert support. Our swift shipping capabilities ensure that your orders can reach you quickly across Canada and the US through our distributor channels and partnered facilities. Don't compromise on quality—choose us for all your bulkhead fitting needs!
Order now or contact us to learn more about how our polypropylene bulkhead fittings can enhance your operations!
