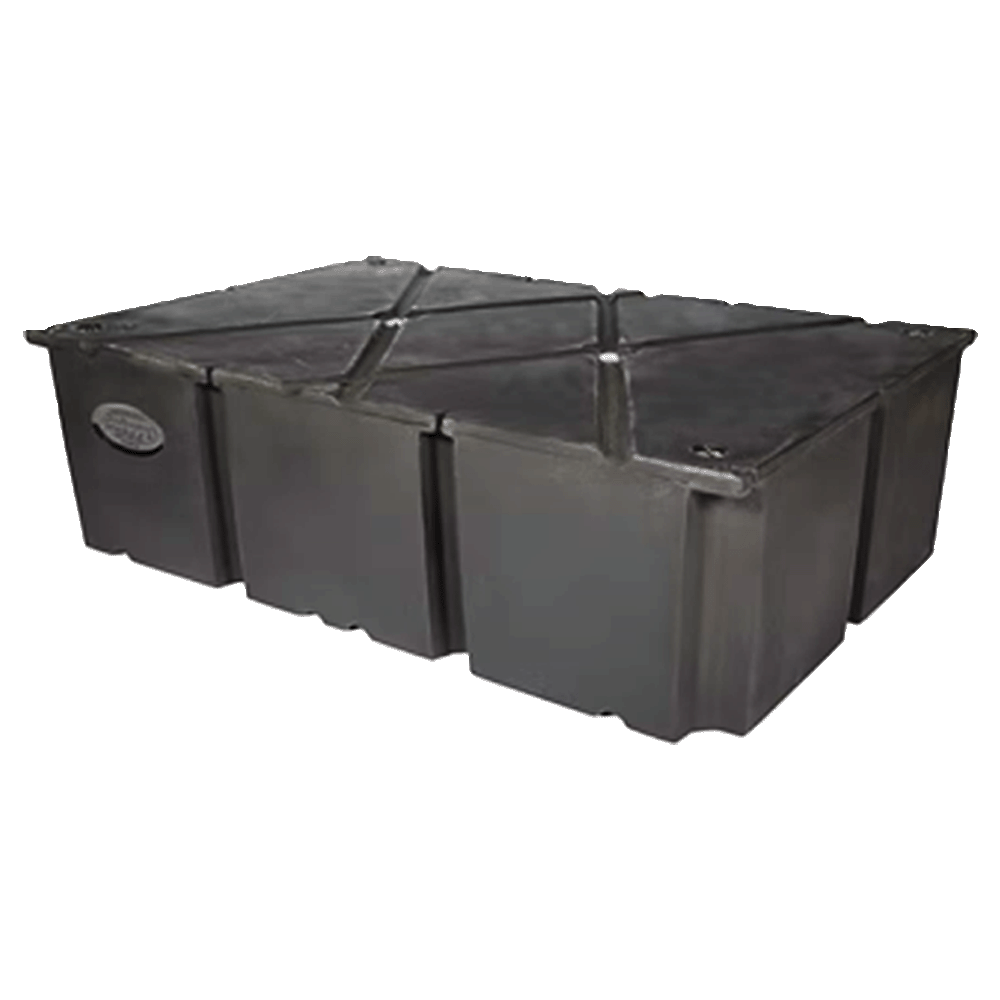

Molded Foam Filled Plastic Dock Floats

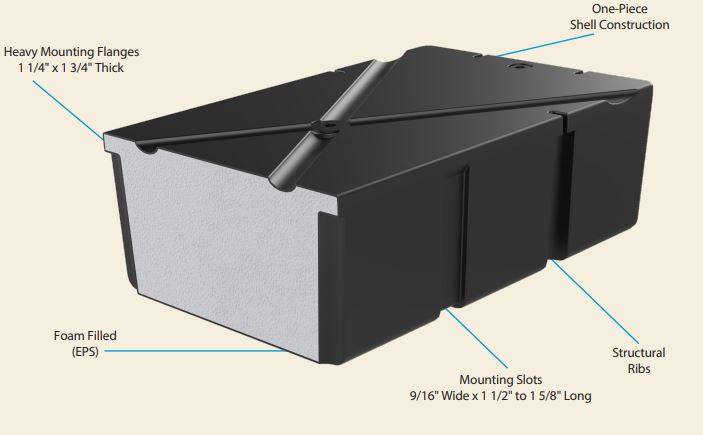

Open Product PageIt s time to build an unsinkable dock with BARR s vast line of EPS foam-filled dock floats. ACOE-approved with an industry-leading 15 year warranty, our standard dock floats are resistant to UV rays and damage by animals, ice, bumps by watercraft and contact deterioration from petroleum products. With a one piece roto-molded polyethylene shell, they re relatively lightweight and are highly cost effective compared to concrete systems. Extra wide ribbing on the exterior of the floats provides easier tool access during install and tank tested buoyancy ratings are +/- 5%.
Open Product PageIt s time to build an unsinkable dock with BARR s vast line of EPS foam-filled dock floats. ACOE-approved with an industry-leading 15 year warranty, our standard dock...
Open Product PageIt s time to build an unsinkable dock with BARR s vast line of EPS foam-filled dock floats. ACOE-approved with an industry-leading 15 year warranty, our standard dock floats are resistant to UV rays and damage by animals, ice, bumps by watercraft and contact deterioration from petroleum products. With a one piece roto-molded polyethylene shell, they re relatively lightweight and are highly cost effective compared to concrete systems. Extra wide ribbing on the exterior of the floats provides easier tool access during install and tank tested buoyancy ratings are +/- 5%.
Click on Part # to view drawing
Part # / Model | Size (inches) (W x L x H) |
Bouyancy (lbs)Â (Rating is for float being fully submerged) | Weight (lbs) | Product Link |
---|---|---|---|---|
2 Foot Wide Series
|
||||
BD2436-12 |
24 x 36 x 12 | 327 |
24 |
Open Product Page |
BD2436-16 |
24 x 36 x 16 | 442 |
28 |
Open Product Page |
BD2436-20 |
24 x 36 x 20 | 524 |
32 |
Open Product Page |
BD2448-8 |
24 x 48 x 8 | 288 |
25 |
Open Product Page |
BD2448-12 |
24 x 48 x 12 | 434 |
31 |
Open Product Page |
BD2448-16 |
24 x 48 x 16 | 598 |
37 |
Open Product Page |
BD2448-18 |
24 x 48 x 18 | 642 |
38 |
Open Product Page |
BD2448-20 |
24 x 48 x 20 | 719 |
43 |
Open Product Page |
BD2448-24 |
24 x 48 x 24 | 867 |
46 |
Open Product Page |
#2436-08 | 24 x 36 x 8 | 211 |
21 |
|
#2448-36 | 24 x 48 x 36 | 1297 |
72 |
|
#2496-08 | 24 x 96 x 8 | 562 |
53 |
|
#2496-12 | 24 x 96 x 12 | 866 |
64 |
|
#2496-16 | 24 x 96 x 16 | 1155 |
75 |
|
3 Foot Wide Series
|
||||
BD3648-8 |
36 x 48 x 8 | 471 |
32 |
Open Product Page |
BD3648-12 |
36 x 48 x 12 | 691 |
44 |
Open Product Page |
BD3648-16 |
36 x 48 x 16 | 905 |
51 |
Open Product Page |
BD3648-20 |
36 x 48 x 20 | 1114 |
59 |
Open Product Page |
BD3648-24 |
36 x 48 x 24 | 1346 |
67 |
Open Product Page |
BD3672-12 |
36 x 72 x 12 | 1059 |
65 |
Open Product Page |
BD3672-16 |
36 x 72 x 16 | 1359 |
72 |
Open Product Page |
BD3672-20 |
36 x 72 x 20 | 1727 |
84 |
Open Product Page |
BD3672-24 |
36 x 72 x 24 | 2090 |
96 |
Open Product Page |
BD3672-32 |
36 x 72 x 32 | 2575 |
107 |
Open Product Page |
BD3696-12 |
36 x 96 x 12 | 1414 |
81 |
Open Product Page |
BD3696-16 |
36 x 96 x 16 | 1822 |
94 |
Open Product Page |
BD3696-20 |
36 x 96 x 20 | 2298 |
114 |
Open Product Page |
BD3696-24 |
36 x 96 x 24 | 2687 |
127 |
Open Product Page |
#3648-08 |
36 x 48 x 8 |
429 |
37 |
|
#3648-18 | 36 x 48 x 18 | 982 |
54 |
|
#3696-32 | 36 x 96 x 32 | 3409 |
152 |
|
4 Foot Wide Series
|
||||
BD4848-12 |
48 x 48 x 12 | 937 |
53 |
Open Product Page |
BD4848-16 |
48 x 48 x 16 | 1220 |
67 |
Open Product Page |
BD4848-20 |
48 x 48 x 20 | 1520 |
77 |
Open Product Page |
BD4848-24 |
48 x 48 x 24 | 1799 |
88 |
Open Product Page |
BD4860-12 |
48 x 60 x 12 | 1190 |
63 |
Open Product Page |
BD4860-16 |
48 x 60 x 16 | 1552 |
80 |
Open Product Page |
BD4860-20 |
48 x 60 x 20 | 1900 |
87 |
Open Product Page |
BD4860-24 |
48 x 60 x 24 | 2300 |
98 |
Open Product Page |
BD4872-12 |
48 x 72 x 12 | 1406 |
83 |
Open Product Page |
BD4872-16 |
48 x 72 x 16 | 1863 |
96 |
Open Product Page |
BD4872-20 |
48 x 72 x 20 | 2280 |
112 |
Open Product Page |
BD4872-24 |
48 x 72 x 24 | 2702 |
126 |
Open Product Page |
BD4872-32 |
48 x 72 x 32 | 3560 |
166 |
Open Product Page |
BD4896-12 |
48 x 96 x 12 | 1834 |
110 |
Open Product Page |
BD4896-16 |
48 x 96 x 16 | 2475 |
130 |
Open Product Page |
BD4896-20 |
48 x 96 x 20 | 3076 |
144 |
Open Product Page |
BD4896-24 |
48 x 96 x 24 | 3618 |
164 |
Open Product Page |
BD4896-32 |
48 x 96 x 32 | 4804 |
227 |
Open Product Page |
#4848-32 | 48 x 48 x 32 | 2231 |
108 |
|
#4860-32 | 48 x 60 x 32 | 2815 |
130 |
|
#4872-28 | 48 x 72 x 28 | 2948 |
141 |
|
#48120-20 |
48 x 120 x 20 |
3692 |
117 |
|
Additional Sizes
|
||||
BD2072-8 |
20 x 72 x 8 | 376 |
32 |
Open Product Page |
BD2072-10 |
20 x 72 x 10 | 459 |
34 |
Open Product Page |
BD2096-10 |
20 x 96 x 10 | 595 |
40 |
Open Product Page |
BD1248-12 |
12 x 48 x 12 | 203 |
17 |
Open Product Page |
BD1248-20 |
12 x 48 x 20 | 345 |
27 |
Open Product Page |
BD4272-16 |
42 x 72 x 16 | 1627 |
84 |
Open Product Page |
#4272-12 | 42 x 72 x 12 | 1166 |
80 |
|
#1848-36 | 18 x 48 x 36 | 966 |
54 |
