• Water Suction Hose at BARR Plastics

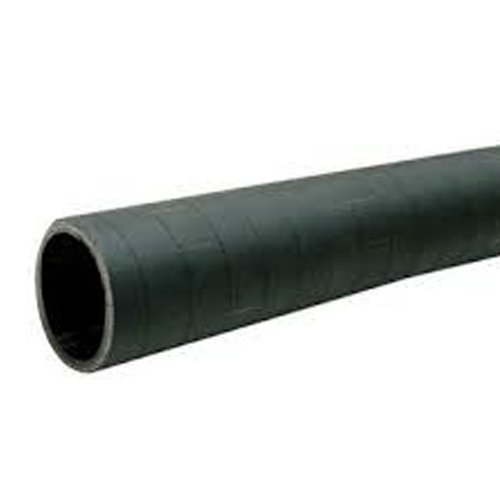

Contractors Water Suction / Discharge Hose

  • Collapsible, medium duty hose that is commonly used in water applications where more economical PVC hoses will not provide long enough service life (NOT for use with air and not for food grade applications).
  • Commonly used in more aggressive applications, as seen in mines, construction sites, or quarries.
  • Its rubber characteristics provide resistance to cutting, gouging, and weathering.
  • Not designed for permanent installation in piping systems, especially in short lengths for pump connectors, generators, chillers, HVAC units, or other applications where hard pipe, expansion joints, or stainless steel braided hoses are typically used.
  • Temperature Range: -32°C (-25°F) to +82°C (180°F).
  • Construction: Tube: Black SBR rubber. Cover: Wrapped, black SBR rubber. Reinforcement: Synthetic fabric.
  • Typical Fittings: Camlocks, short shanks, combination nipples (low pressure only), pinch clamps, bolt style clamps.
Collapsible, medium duty hose that is commonly used in water applications where more economical PVC hoses will not provide long enough service life (NOT for use with air and not...
Read More
  • Collapsible, medium duty hose that is commonly used in water applications where more economical PVC hoses will not provide long enough service life (NOT for use with air and not for food grade applications).
  • Commonly used in more aggressive applications, as seen in mines, construction sites, or quarries.
  • Its rubber characteristics provide resistance to cutting, gouging, and weathering.
  • Not designed for permanent installation in piping systems, especially in short lengths for pump connectors, generators, chillers, HVAC units, or other applications where hard pipe, expansion joints, or stainless steel braided hoses are typically used.
  • Temperature Range: -32°C (-25°F) to +82°C (180°F).
  • Construction: Tube: Black SBR rubber. Cover: Wrapped, black SBR rubber. Reinforcement: Synthetic fabric.
  • Typical Fittings: Camlocks, short shanks, combination nipples (low pressure only), pinch clamps, bolt style clamps.
Part # Size Box/Case Qty. Description
NL2113-1200 INSIDE 12 - OUTSIDE 12.69 50/100 ft 6713
NL2112-1200 INSIDE 12 - OUTSIDE 12.52 50/100 ft 6708
NL2112-1000 INSIDE 10 - OUTSIDE 10.44 50/100 ft 6709
NL2112-800 INSIDE 8 - OUTSIDE 8.40 50/100 ft 6710
NL2113-1000 INSIDE 10 - OUTSIDE 10.56 50/100 ft 6712
NL2113-800 INSIDE 8 - OUTSIDE 8.56 50/100 ft 6717
NL2113-600 INSIDE 6 - OUTSIDE 6.50 50/100 ft 6716
NL2113-500 INSIDE 5 - OUTSIDE 5.50 50/100 ft 6707
NL2113-400 INSIDE 4 - OUTSIDE 4.50 50/100 ft 6706
NL2113-300 INSIDE 3 - OUTSIDE 3.47 50/150 ft 6705
NL2113-250 INSIDE 2-1/2 - OUTSIDE 2.88 50/100 ft 6702
NL2113-200 INSIDE 2 - OUTSIDE 2.38 50/100 ft 6701
NL2113-150 INSIDE 1-1/2' - OUTSIDE 1.83 50/100 ft 6700
NL2113-125 INSIDE 1-1/4 - OUTSIDE 1.59 50/100 ft 8301
