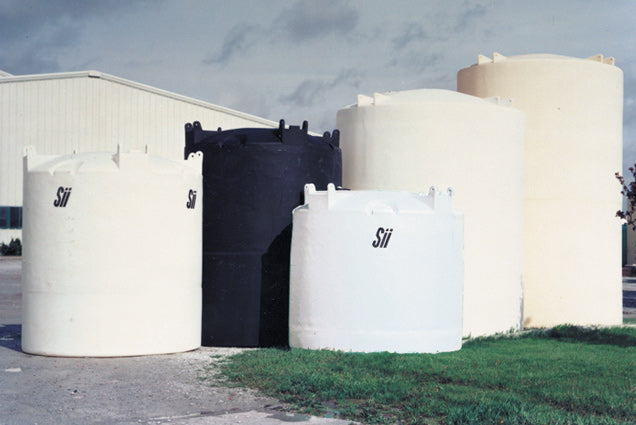

Vertical Single Wall Tanks - ASTM D1998

Web Id: 5791

Our industrial-grade tanks can be configured with specific material options, allowing them to be used for a diverse range of applications including handling of chemicals like acids and caustics.For all of our industrial tanks, the highest quality HDLPE and XLPE resins. The tanks are UV stabilized for long-term outdoor use and are available in black or white. Additionally, many of the tanks have molded-in heavy duty lifting lugs and are available with IBC 2006 seismic and 150 mph wind restraint tie-down systems.

These tanks are manufactured with stringent quality controls and documented processes (ASTM-1998-06). Standard specific gravity choices are 1.5 and 1.9,however other ratings may be available upon request. Tanks are available with a wide variety of fittings, accessories and add-ons. BARR can custom modify any of these HDLPE tanks to your specification. To find your required accessories, view Valves, Fittings, Pumps and Hose & Hose Clamps or contact BARR for assistance in selecting the best products for your application.

Swipe over the table to view all of the columns

Click on Part # to view tank drawing

Capacity			Part #/ Drawing	Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Weight (lbs)
USG	IG	LTR	Part #/ Drawing	Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Weight (lbs)
22	21	95	1530000N--	18	N/A	23	2	9
30	25	114	1541000N--	23	N/A	23	10	15
35	29	132	1000101N-- *	22	N/A	36	6	18
50	46	208	1540700N--	23	N/A	38	10	25
60	50	227	5680000N-- *	26	N/A	40	14	26
65	54	246	1550000N--	23	N/A	46	6	28
90	75	341	5690000N-- *	34	N/A	36	14	43
110	92	416	8010000N--	33	N/A	41	10	45
120	100	454	5700000N-- *	34	N/A	50	14	50
120	100	454	1540200N--	32	N/A	39	10	45
150	125	568	5710000N-- *	34	N/A	60	14	58
190	158	719	1540400N--	42	N/A	47	10	55
200	167	757	5720000N-- *	40	N/A	56	14	75
200	167	757	1540000N--	40	N/A	48	6	63
200	167	757	1540300N--	36	N/A	59	10	110
200	167	757	8020000N--	33	N/A	69	10	80
250	208	946	5730000N-- *	40	N/A	67	14	79
275	229	1041	5740000N-- *	47	N/A	56	14	96
290	242	1098	1630200N--	42	N/A	59	10	80
300	250	1136	1630000N--	35	N/A	80	18	85
300	250	1136	1630100N--	36	N/A	82	10	100
300	250	1136	8030000N--	33	N/A	94	10	100
300	250	1136	8040000N--	46	N/A	51	10	75
300	250	1136	1001600N-- ^	29	60"	57	18	N/A
330	275	1249	5750000N-- *	47	N/A	66	14	108
330	275	1249	1630300N--	48	N/A	55	10	100
360	300	1363	5760000N-- *	53	N/A	56	14	116
400	333	1514	1740000N--	45	N/A	62	18	85
400	333	1514	1001700N-- ^	29	60"	71	18	N/A
440	367	1666	5770000N-- *	53	N/A	67	14	130
500	417	1893	5780000N-- *	53	N/A	74	14	141
550	458	2082	1800000N--	48	N/A	75	18	130
550	458	2082	1820000N--	64	N/A	47	18	100
550	458	2082	8060000N--	64	N/A	46	18	100
700	583	2650	1700100N--	48	N/A	99	18	180
710	591	2688	1700200N--	60	N/A	68	18	185
850	708	3218	1810000N--	48	N/A	117	18	220
1000	833	3785	1831000N--	60	N/A	89	18	230 / 260
1100	916	4164	1830000N--	64	N/A	90	18	300
1100	916	4164	1710000N--	86	N/A	55	18	180
1100	916	4164	8120000N--	86	N/A	55	18	N/A
1200	1000	4542	1830200N--	60	N/A	109	18	300 / 310
1300	1083	4921	1830400N--	72	N/A	87	18	290 / 320
1400	1166	5300	1840300N--	60	N/A	128	18	345 / 390
1500	1250	5678	1770000N--	86	N/A	72	18	260
1500	1250	5678	8120100N--	86	N/A	72	18	220
1550	1291	5867	1840000N--	64	N/A	124	18	305 / 335
1900	1583	7192	1780200N--	72	N/A	119	18	445 / 520
1900	1583	7192	8300000N--	64	N/A	147	18	460 / 510
2000	1666	7571	5050000N--	90	N/A	88	18	324 - 400
2000	1666	7571	8130000N--	90	N/A	88	18	350 - 475
2000	1666	7571	5050300N--	96	N/A	84	18	420 / 500
2500	2083	9464	5090000N--	90	N/A	107	18	425 - 560
2500	2083	9464	8140000N--	90	N/A	107	18	427 - 570
2500	2165	9842	5090300N--	96	N/A	98	18	510 / 620
2650	2207	10031	8390000N-- +	102	N/A	97	18	510 / 800
3000	2499	11356	5130000N--	90	N/A	127	18	510 - 710
3000	2499	11356	8160000N--	90	N/A	127	18	610 - 800
3000	2499	11356	5130300N--	96	N/A	111	18	480 - 720
3000	2499	11356	7410000N--	102	N/A	96	18	520 - 660
3650	3040	13817	8190000N-- +	102	N/A	126	18	780 / 973
3900	3249	14763	5190000N--	90	N/A	163	18	900 / 1200
4000	3332	15142	7421100N--	120	N/A	104	18	810 / 1000
4100	3415	15520	7360000N--	102	N/A	130	18	850 / 1100
4100	3415	15520	8200000N--	120	N/A	100	18	774 / 930
4400	3665	16656	5210000N--	90	N/A	182	18	1100 / 1450
4500	3749	17034	7000400N--	143	N/A	91	18	900 / 1100
4500	3749	17034	7420000N--	102	N/A	142	18	900 - 1300
4600	3832	17413	7000500N--	120	N/A	116	18	N/A
4650	3873	17602	8210000N-- +	102	N/A	154	18	1200 / 1613
4900	4082	18548	5480000N--	90	N/A	202	18	1450 / 2000
5000	4165	18927	1002100N--	102	N/A	154	18	950 / 1050
5500	4582	20820	7020000N--	90	N/A	221	18	1500 / 2000
5500	4582	20820	7000000N--	120	N/A	132	18	900 / 1250
5600	4665	21198	5250000N--	142	N/A	102	18	1150 / 1350
6000	4998	22712	7430000N--	102	N/A	188	18	1650 - 1800
6000	4998	22712	7140300N--	120	N/A	145	18	N/A
6200	5165	23469	8220000N--	120	N/A	140	18	1174 - 1678
6500	5415	24605	7140000N--	120	N/A	153	18	1450 - 2000
6600	5498	24984	5300400N--	120	N/A	158	18	1900 / 2100
6600	5498	24984	5300500N--	143	N/A	123	18	N/A
7000	5831	26498	5300000N--	142	N/A	122	18	1400 / 1900
7500	6248	28391	7440000N--	102	N/A	234	18	2450 / 3000
8000	6664	30283	5320300N--	143	N/A	144	18	2000 / 2250
8000	6664	30283	5300600N--	120	N/A	186	18	1900 / 2300
8500	7081	32176	7400000N--	120	N/A	194	18	2400 / 3100
8750	7289	33122	5360000N--	142	N/A	143	18	2000 / 2400
9500	7914	35961	7450000N--	120	N/A	215	18	2800 / 3600
10500	8747	39747	5330000N--	142	N/A	169	18	2500 - 3100
10500	8747	39747	5330300N--	143	N/A	177	18	2600 / 3000
12500	10413	47318	5350000N--	142	N/A	198	18	3100 / 4200
15000	12495	56781	5370000N--	142	N/A	234	18	4400 / 5800
16500	13745	62459	5380000N--	142	N/A	257	18	5100 / 5600

* = Closed Top

^ = Narrow Storage Tanks

+ = No Tie-Down Lugs
