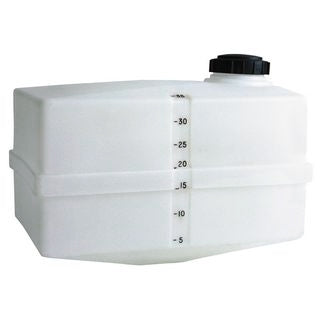

Small Total Drain Tanks

Web Id: 5763

These polyethylene utility tanks are ideal for a wide variety of liquid handling and dispensing applications. They are manufactured with UV inhibitors, making them suitable for long-term outdoor use. Tank walls are translucent for easy level viewing and the tanks are available in both stationary and portable configurations for additional versatility.

Swipe over the table to view all of the columns

Click on Part # to view tank drawing

Capacity			Part # / Drawing		Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Fitting (in)	Weight (lbs)
USG	IG	LTR	Premium Weight 1.5-1.7 SG	Heavy Weight 1.9 SG	Dia./ Width (in)	Length (in)	Height (in)	Lid/Fill Opening (in)	Fitting (in)	Weight (lbs)
5	4	19	42321 +	N/A	11	11	18	8	1-1/4	6
8	7	30	SP0008-VM +	N/A	12	16	17	5	1/2	6
10	8	38	42351 +	N/A	13	13	21	8	1-1/4	10
12	10	45	60521 +	N/A	14	18	15	5	3/4	11
12	10	45	SP0012-VM +	N/A	12	16	22	5	1/2	9
12	10	45	SP0012-RT +	N/A	14	18	12	5	3/4	9
19	16	72	SP0019-VM +	N/A	12	16	28	5	1/2	15
20	17	76	SP0020-LC +	N/A	14	28	12	5	3/4	11
35	29	132	SP0035-RT +	N/A	19	28	20	5	1	17
56	47	212	SP0056-RT +	N/A	28	38	26	5	3/4	28

+ = May be Shipped by UPS
